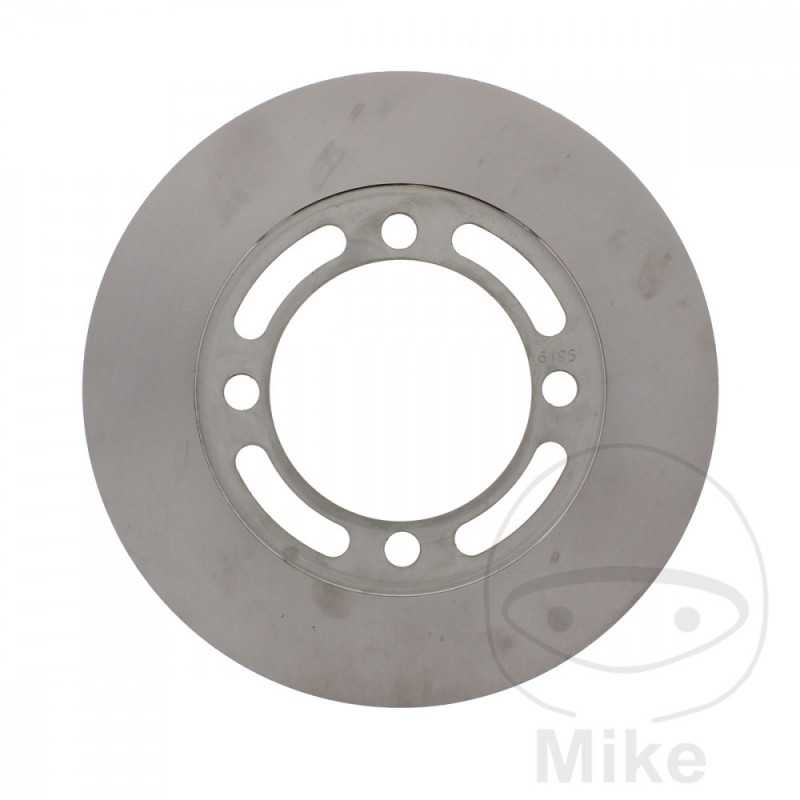

EBC Stainless steel brake disc for motorcycle 760.00.30

EBC MX brake disc for offroad / enduro and ATV. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or, for sporty riders, EBC sinter brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 190MM
INSIDE DIAMETER: 78.2MM
CIRCLE SIZE: 95 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kymco MXU 500 2X4 38/19 CV, 28/14,3 kw 1cil. L70020 L7 Bastidores: RFBL70020--
Kymco MXU 500 4X4 38 CV, 28 kw 1cil. L70000 L7 Bastidores: RFBL70000-- 2005-2009
Kymco MXU 500 4X4 38/19 CV, 28/14,3 kw 1cil. L70010 L7 Bastidores: RFBL70010--
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K2 Bastidores: AK46K-22100001-- 2002
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K3 Bastidores: AK46K-37100001-- 2003
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K4 Bastidores: AK46K-47100001-- 2004
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K5 Bastidores: AK46K-57100001-- 2005
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K6 Bastidores: AK46K-67100001-- 2006
Suzuki LT-A 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46K K7 Bastidores: AK46K-77100001-- 2007
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK49K K8 Bastidores: AK49K-87100001-AK49K-87199999 2008
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK49K K9 Bastidores: AK49K-97100001-AK49K-97199999 2009
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK4CK L0 Bastidores: AK4CK-A7100001-- 2010
Suzuki LT-A 400 F Kingquad 4WD 30 CV, 22 kw 1cil. AK4CK L1 Bastidores: AK4CK-B7100001-- 2011-2015
Suzuki LT-A 500 F Vinson 4WD 1cil. - K2 Bastidores: --- 2002
Suzuki LT-A 500 F Vinson 4WD 1cil. - K3 Bastidores: --- 2003
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K4 Bastidores: AM43A-47100001-- 2004
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K5 Bastidores: AM43A-57100001-- 2005
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K6 Bastidores: AM43A-67100001-- 2006
Suzuki LT-A 500 F Vinson 4WD 1cil. AM43A K7 Bastidores: AM43A-77100001-- 2007
Suzuki LT-F 400 F Eiger 4WD 1cil. AK46A K2 Bastidores: --- 2002
Suzuki LT-F 400 F Eiger 4WD 1cil. AK46A K5 Bastidores: AK46A-57100001-- 2005
Suzuki LT-F 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46A K3 Bastidores: AK46A-37100001-- 2003
Suzuki LT-F 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46A K4 Bastidores: AK46A-47100001-- 2004
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K8 Bastidores: AK49A-87100001-AK49A-87199999 2008
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K9 Bastidores: AK49A-97100001-AK49A-97199999 2009
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L0 Bastidores: AK4CA-A7100001-- 2010
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L1 Bastidores: AK4CA-B7100001-- 2011
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L2 Bastidores: AK4CA-C7100001-- 2012-2015
Suzuki LT-F 500 F Quadmaster 4WD 1cil. AM44A K3 Bastidores: --- 2003
Suzuki LT-F 500 F Quadmaster 4WD 1cil. AM44A K4 Bastidores: --- 2004
