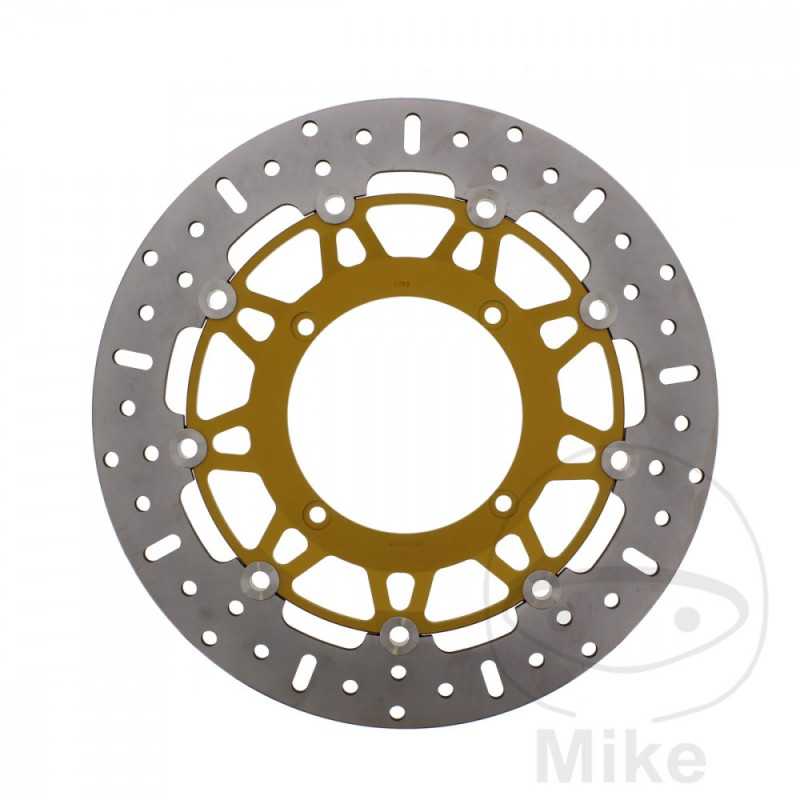

EBC Stainless steel brake disc for motorcycle 760.00.28

EBC Fully floating brake discs for the front wheel.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

Weight is reduced by an additional 5-10% through the 6-rivet system with a lightweight inner ring, which in turn means an improvement over conventional brake discs.

The brake discs feature EBC's exclusive and patented SD system, whose square rivets in the disc recesses under the heat generated during braking allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 120.2MM
CIRCLE SIZE: 135 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 9MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna SM 450 R 33 CV, 24 kw 1cil. - Bastidores: --- 2003
Husqvarna SM 450 R 33 CV, 24 kw 1cil. H802BD Bastidores: ZCG H802BD-4V001413-ZCGH802BD-4V005198 2004
Husqvarna SM 450 R 33 CV, 24 kw 1cil. H802BD Bastidores: ZCG H802BD-5V006354-ZCGH802BD-5V006455 2005
Husqvarna SM 450 R 46 CV, 34 kw 1cil. - Bastidores: --- 2003
Husqvarna SM 450 R 46 CV, 34 kw 1cil. H802BD Bastidores: ZCG H802BD-4V001413-ZCGH802BD-4V005198 2004
Husqvarna SM 450 R 46 CV, 34 kw 1cil. H802BD Bastidores: ZCG H802BD-5V006354-ZCGH802BD-5V006455 2005
Husqvarna SM 450 R 50 CV, 37 kw 1cil. H812AB Bastidores: ZCG H812AB-6V001014-ZCGH812AB-6V002978 2006
Husqvarna SM 450 R euro2 50 CV, 37 kw 1cil. H812AB Bastidores: ZCG H812AB-7V000001-- 2007
Husqvarna SM 450 R euro3 50 CV, 37 kw 1cil. H812AB Bastidores: ZCG H812AB-7V003338-- 2007
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-8V000001-- 2008
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-9V000001-- 2009
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-AV000001-- 2010
Husqvarna SM 510 R 58 CV, 43 kw 1cil. H803CC Bastidores: ZCG H803CC-5V006656-ZCGH803CC-5V010369 2005
Husqvarna SM 510 R 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-6V001670-ZCGH813AB-6V003328 2006
Husqvarna SM 510 R euro2 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-7V000001-- 2007
Husqvarna SM 510 R euro3 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-7V003340-- 2007
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-8V000001-- 2008
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-9V000001-- 2009
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-AV000001-- 2010
Husqvarna SM 530 RR 1cil. A224AB Bastidores: ZKH A224AB-9V050001-- 2009-2010
Husqvarna SM 570 R 55 CV, 41 kw 1cil. H601AB Bastidores: ZCG H601AB-1V000509-ZCG H601AB-1V000938 2001
Husqvarna SM 570 R 55 CV, 41 kw 1cil. H601AB Bastidores: ZCG H601AB-2V000939-ZCG H601AB-2V001399 2002
Husqvarna SM 570 R 55 CV, 41 kw 1cil. H601AB Bastidores: ZCG H601AB-3V001400-- 2003
Husqvarna SM 570 R 55 CV, 41 kw 1cil. H601AB Bastidores: ZCG H601AB-4V001400-- 2004
Husqvarna SM 610 ie 53 CV, 39 kw 1cil. A100AB Bastidores: ZKH A100AB-8V012051-- 2008
Husqvarna SM 610 ie 53 CV, 39 kw 1cil. A100AB Bastidores: ZKH A100AB-9V014001-- 2009-2010
Husqvarna SM 610 S arranque eléctrico 30 CV, 22 kw 1cil. A101AB Bastidores: ZCG A101AB-6V006422-ZCG A101AB-6V006521 2005
Husqvarna SM 610 S arranque eléctrico 30 CV, 22 kw 1cil. A101AB Bastidores: ZCG A101AB-6V007052-ZCG-A101AB-6V007151 2006
Husqvarna SM 610 S arranque eléctrico 46/32 CV, 34/24 kw 1cil. H701AA Bastidores: ZCG H701AA-3V003470-- 2003
Husqvarna SM 610 S arranque eléctrico 46/32 CV, 34/24 kw 1cil. H701AA Bastidores: ZCG H701AA-4V005000-- 2004
Husqvarna SM 610 S arranque eléctrico 46/34 CV, 34/25 kw 1cil. H701AA Bastidores: ZCG-H701AA-YV000420-- 2000-2002
Husqvarna SM 610 S arranque eléctrico 53 CV, 39 kw 1cil. A100AB Bastidores: ZCG A100AB-6V006000-ZCG A100AB-6V009217 2006
Husqvarna SM 610 S arranque eléctrico 53 CV, 39 kw 1cil. A100AB Bastidores: ZCG A100AB-6V006522-ZCG A100AB-6V009217 2005
Husqvarna SM 610 S ie arranque eléctrico 30 CV, 22 kw 1cil. A101AB Bastidores: ZCG A101AB-7V006000-- 2007
Husqvarna SM 610 S ie arranque eléctrico 53 CV, 39 kw 1cil. A1AFEKP Bastidores: ZCG A1AFEKP-7V40000-- 2007
Husqvarna SMR 630 Seel Replica 73 CV, 54 kw 1cil. H610AA Bastidores: ZCG H610AA-4V051360-ZCG H610AA-4V051459 2004-2008
