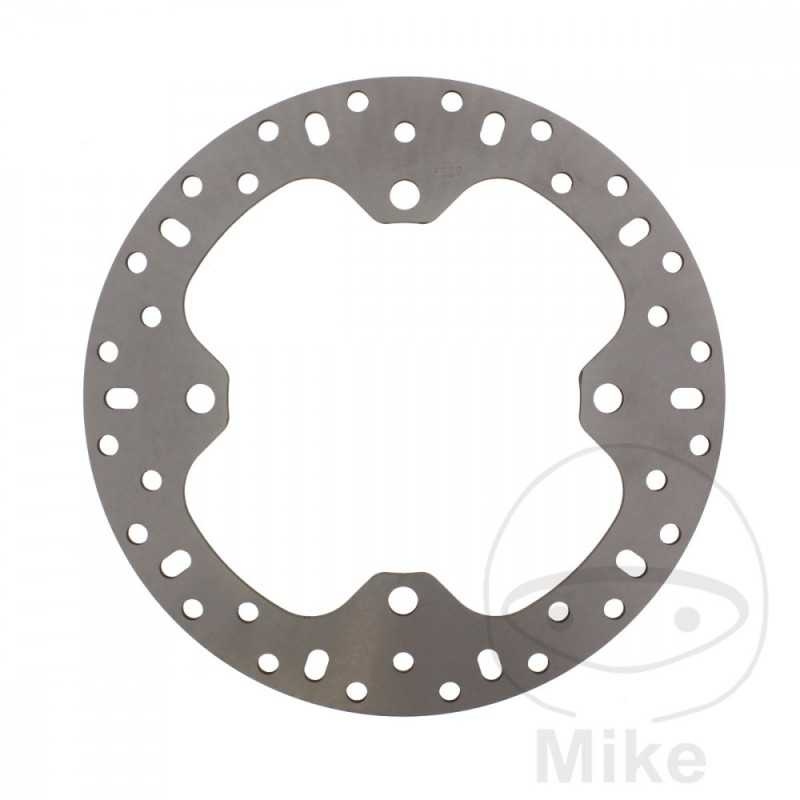

EBC Stainless steel brake disc for motorcycle 760.00.23

EBC MX brake disc for offroad / enduro and ATV. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or, for sporty riders, EBC sinter brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 134.5MM
CIRCLE SIZE: 155.5 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 11.3 MM
THICKNESS: 4.7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris Scrambler 1000 XP EPS 88 CV, 64,7 kw 2cil. - Bastidores: --- 2014-2015
Polaris Scrambler 850 XP HO EFI 4WD EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2015
Polaris Scrambler 850 XP HO EFI 4WD EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2013
Polaris Scrambler 850 XP HO EFI EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2014
Polaris Sportsman 1000 XP EPS 88 CV, 64,7 kw 2cil. - Bastidores: --- 2015
Polaris Sportsman 1000 XP Touring EPS 88 CV, 64,7 kw 2cil. - Bastidores: --- 2015
Polaris Sportsman 550 EFI 4WD 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 EFI EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 EFI Forest 4WD EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2012
Polaris Sportsman 550 EFI Forest EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2013
Polaris Sportsman 550 EFI Touring EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 X2 EFI 4WD 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2013
Polaris Sportsman 550 X2 EFI 4WD EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2014
Polaris Sportsman 550 XP EFI 4WD 40,7 CV, 29,9 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 550 XP EFI EPS 40,7 CV, 29,9 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 850 EFI Touring EPS 2cil. - Bastidores: --- 2011-2012
Polaris Sportsman 850 EFI Touring EPS 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 XP EFI 4WD 2cil. - Bastidores: --- 2011
Polaris Sportsman 850 XP EFI 4WD 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 XP EFI 4WD 71 CV, 52,2 kw 2cil. - Bastidores: --- 2009
Polaris Sportsman 850 XP EFI EPS 2cil. - Bastidores: --- 2011
Polaris Sportsman 850 XP EFI EPS 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 XP EFI EPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2009
Polaris Sportsman 850 XP HO EFI 4WD 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI EPS 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI Forest 4WD EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI Forest EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2014
Polaris Sportsman 850 XP HO EFI Forest EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2013
Polaris Sportsman 850 XP HO EFI Touring EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2014
Polaris Sportsman 850 XP HO EFI Touring EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2013
