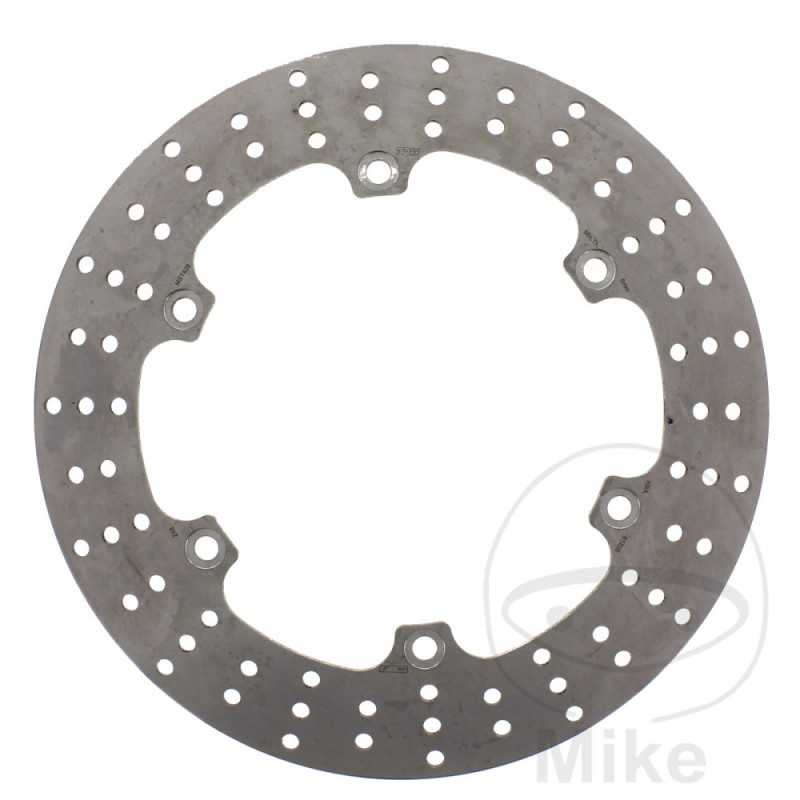

TRW motorcycle brake disc 788.25.37

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 316MM
INSIDE DIAMETER: 184MM
CIRCLE SIZE: 205 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CTX 1300 A ABS 84 CV, 62 kw 4cil. SC74A E Bastidores: JH2 SC74A-EK000001-- 2014-2016
Honda ST 1100 A Pan European ABS 100 CV, 74 kw 4cil. SC26 N Bastidores: SC26-4200007-SC26-4200993 1992
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 P Bastidores: SC26-4300061-- 1993
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 R Bastidores: SC26-4400209-- 1994
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 S Bastidores: SC26-4500104-SC26-4500564 1995
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 L Bastidores: SC26-2000024-SC26-2003574 1990
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 M Bastidores: SC26-2100001-SC26-2102389 1991
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 N Bastidores: SC26-2200001-SC26-2201773 1992
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 P Bastidores: SC26-2300001-- 1993
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 R Bastidores: SC26-2400001-- 1994
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 S Bastidores: SC26-2500231-SC26-2501387 1995
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D T Bastidores: JH2 SC26D-TM000001-JH2 SC26D-TM000464 1996
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D V Bastidores: JH2 SC26D-VM100001-JH2 SC26D-VM100317 1997
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D W Bastidores: JH2 SC26D-WM200001-- 1998
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D X Bastidores: JH2 SC26D-XM300001-- 1999
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D Y Bastidores: JH2 SC26D-YM400001-- 2000-2001
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A 2 Bastidores: JH2 SC51A-2M000001-JH2 SC51A-2M099999 2002-2003
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A 4 Bastidores: JH2 SC51A-4M200001-JH2 SC51A-4M299999 2004-2005
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A 6 Bastidores: JH2 SC51A-6M400001-- 2006-2007
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A 8 Bastidores: JH2 SC51A-8M600001-JH2 SC51A-8M609999 2008
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A 9 Bastidores: JH2 SC51A-9K700001-JH2 SC51A-9K709999 2009-2013
Honda ST 1300 A Pan European ABS CBS 127 CV, 93 kw 4cil. SC51A E Bastidores: JH2 SC51A-EK800001-- 2014-2017
Honda ST 1300 Pan European CBS 127 CV, 93 kw 4cil. SC51C 2 Bastidores: JH2 SC51C-2M000001-JH2 SC51C-2M099999 2002-2003
Honda ST 1300 Pan European CBS 127 CV, 93 kw 4cil. SC51C 4 Bastidores: JH2 SC51C-4M200001-JH2 SC51C-4M299999 2004-2005
Honda ST 1300 Pan European CBS 127 CV, 93 kw 4cil. SC51C 6 Bastidores: JH2 SC51C-6M400001-- 2006-2007
Honda ST 1300 Pan European CBS 127 CV, 93 kw 4cil. SC51C 8 Bastidores: JH2 SC51C-8M600001-JH2 SC51C-8M609999 2008
