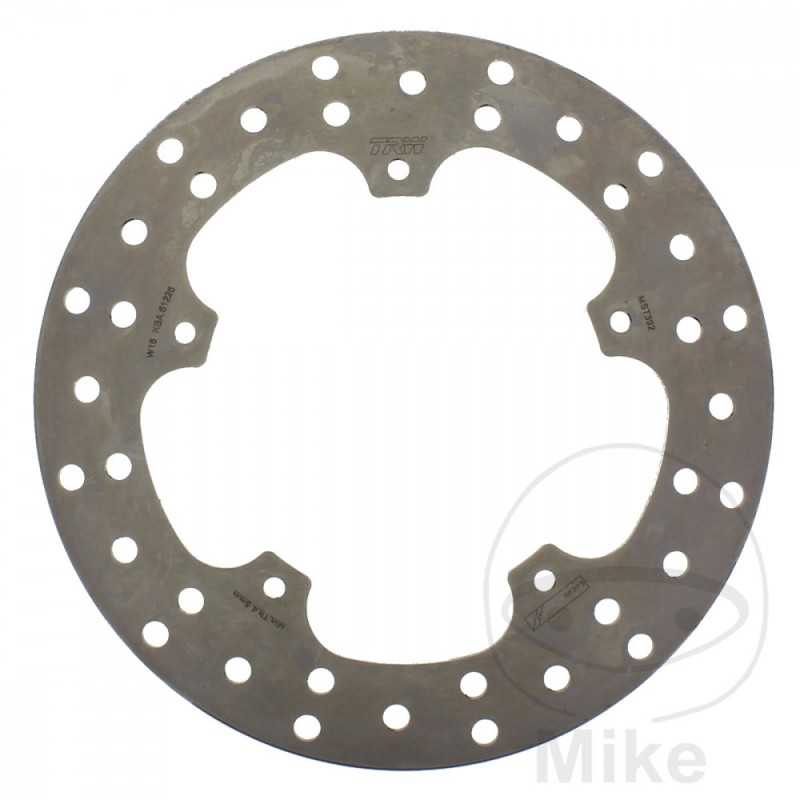

TRW motorcycle brake disc 788.25.32

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 119MM
CIRCLE SIZE: 136 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW HP4 1000 ABS 193 CV, 142 kw 4cil. K10/K42 0D01 Bastidores: --- 2012-2016
BMW HP4 1000 Competition ABS 193 CV, 142 kw 4cil. K10/K42 0D01 Bastidores: --- 2013-2016
BMW S 1000 R ABS 160 CV, 118 kw 4cil. K10/K47 0D02 Bastidores: --- 2013-2016
BMW S 1000 R ABS 165 CV, 121 kw 4cil. 2R10/K47 0D52 Bastidores: --- 2017
BMW S 1000 R ABS DDC 165 CV, 121 kw 4cil. 2R10/K47 0D52 Bastidores: --- 2017
BMW S 1000 R ABS DTC 165 CV, 121 kw 4cil. 2R10/K47 0D52 Bastidores: --- 2017
BMW S 1000 RR 193 CV, 142 kw 4cil. K10/K46 0507 Bastidores: --- 2009-2011
BMW S 1000 RR 193 CV, 142 kw 4cil. K10/K46 0524 Bastidores: --- 2012
BMW S 1000 RR ABS 193 CV, 142 kw 4cil. K10/K46 0507 Bastidores: --- 2009-2011
BMW S 1000 RR ABS 193 CV, 142 kw 4cil. K10/K46 0524 Bastidores: --- 2012-2014
BMW S 1000 RR ABS 199 CV, 146 kw 4cil. 2R10/K46 0D50 Bastidores: --- 2017-2018
BMW S 1000 RR ABS 199 CV, 146 kw 4cil. K10/K46 0D10 Bastidores: --- 2014-2016
BMW S 1000 RR ABS 207 CV, 152 kw 4cil. 2R99/K67 0E21 Bastidores: --- 2019
BMW S 1000 RR ABS M-paquete 207 CV, 152 kw 4cil. 2R99/K67 0E21 Bastidores: --- 2019
BMW S 1000 RR ABS paquete dinámico 207 CV, 152 kw 4cil. 2R99/K67 0E21 Bastidores: --- 2019
BMW S 1000 RR ABS Race-paquete 207 CV, 152 kw 4cil. 2R99/K67 0E21 Bastidores: --- 2019
BMW S 1000 RR Pro ABS 199 CV, 146 kw 4cil. 2R10/K46 0D50 Bastidores: --- 2017-2018
