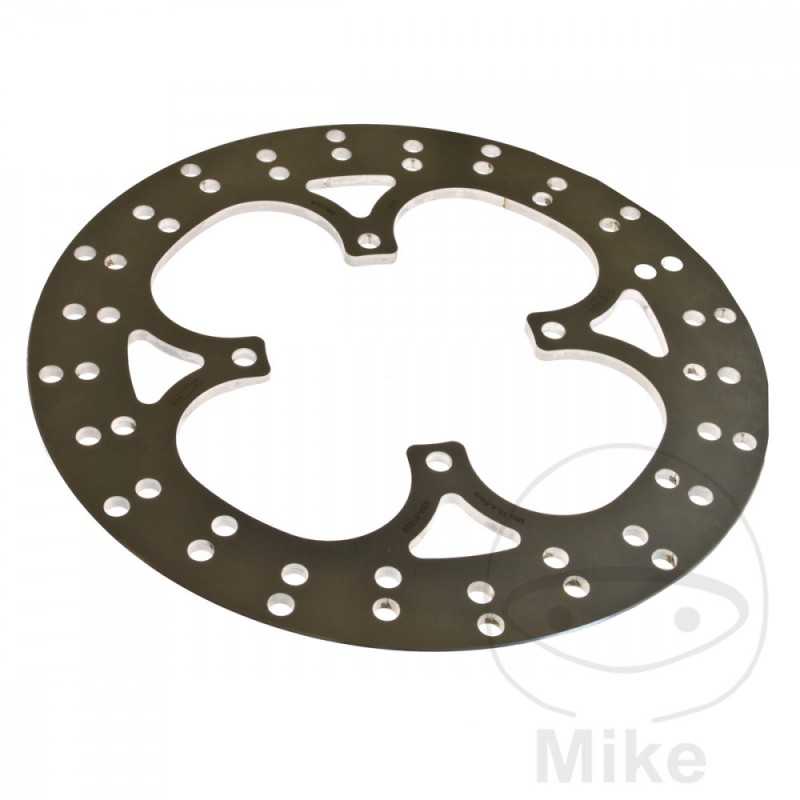

TRW motorcycle brake disc 788.24.26

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 94MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 L Bastidores: RC36-2000060-RC36-2009630 1990
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 M Bastidores: RC36-2100004-RC36-2108297 1991
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 N Bastidores: RC36-2200014-RC36-2206916 1992
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 P Bastidores: RC36-2300001-RC36-2306684 1993
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36 R Bastidores: RC36-2400060-RC36-2408470 1994
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36 S Bastidores: RC36-2500001-RC36-2505150 1995
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36B T Bastidores: RC36B-TM000001-- 1996
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36B V Bastidores: RC36B-VM100001-- 1997
