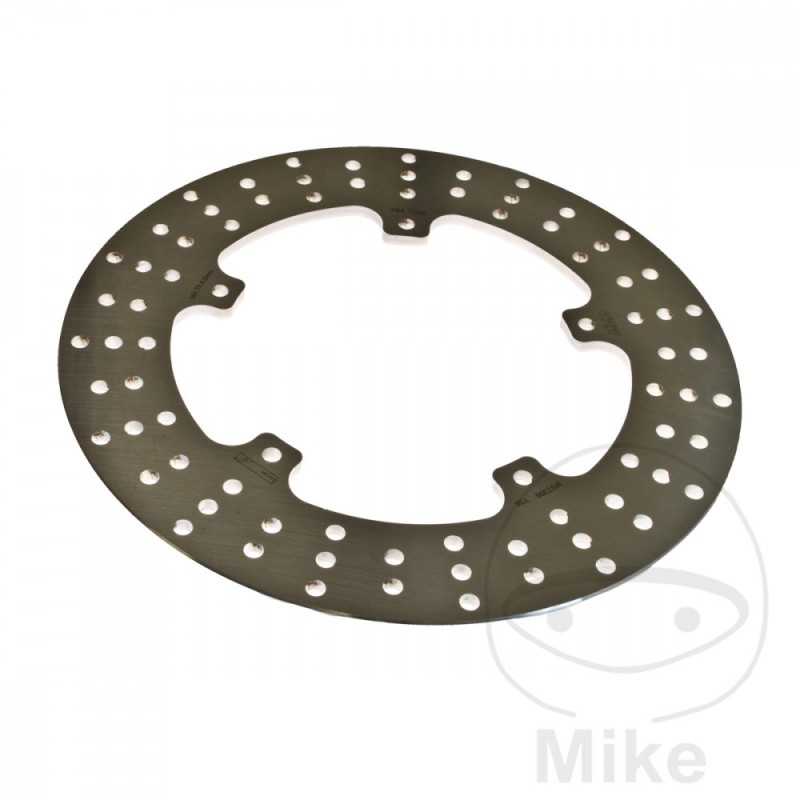

TRW motorcycle brake disc 788.24.00

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 125MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia SR 125 ie Max 15 CV, 11 kw 1cil. PM35700 Bastidores: --- 2012-2017
Aprilia SR 300 ie Max 22 CV, 16,1 kw 1cil. PM35600 Bastidores: --- 2012-2016
Gilera DNA 50 4,8 CV, 3,5 kw 1cil. C27000 Bastidores: ZAPC27000 henceforth0001001-ZAPC27000 henceforth0999999 2000-2002
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-1000001-ZAPC270000-1999999 2003
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-2000001-ZAPC270000-2999999 2004
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-3000001-- 2005
Gilera Fuoco 500 34 CV, 25 kw 1cil. M61100 Bastidores: ZAPM61100 henceforth0001001-- 2007-2014
Gilera Fuoco 500 40 CV, 29,5 kw 1cil. M61100 Bastidores: ZAPM61100 henceforth0001001-- 2007-2014
Gilera Fuoco 500 LT 40 CV, 29,5 kw 1cil. M83 Bastidores: --- 2014-2017
Gilera Nexus 125 15 CV, 11 kw 1cil. M35500 Bastidores: ZAPM35500 henceforth0001001-- 2007-2008
Gilera Nexus 125 ie 15 CV, 11 kw 1cil. M35700 Bastidores: ZAPM35700 henceforth0001001-- 2009-2014
Gilera Nexus 250 ie 22,4 CV, 16,5 kw 1cil. M35400 Bastidores: ZAPM35400 henceforth0001001-- 2007-2008
Gilera Nexus 300 ie 21,9 CV, 16,1 kw 1cil. M35600 Bastidores: ZAPM35600 henceforth0001001-- 2009-2014
Gilera Nexus 500 32,6 CV, 24 kw 1cil. M35200 Bastidores: ZAPM35200 henceforth0001001-- 2007-2014
Gilera Nexus 500 38 CV, 28 kw 1cil. M35200 Bastidores: ZAPM35200 henceforth0001001-- 2007-2014
Gilera Nexus 500 39,5 CV, 29 kw 1cil. M35100 Bastidores: ZAPM35100 henceforth0001001-- 2004-2006
Piaggio Beverly 400 ie Tourer 33,3 CV, 24,5 kw 1cil. M34400 Bastidores: ZAPM34400 henceforth0001001-- 2012
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth0001001-ZAPM34100 henceforth0999999 2003-2004
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth1000001-- 2005-2006
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34200 Bastidores: ZAPM34200 henceforth0001001-- 2007-2008
Piaggio Beverly 500 ie Cruiser 39,4 CV, 29 kw 1cil. M34500 Bastidores: ZAPM34500 henceforth0001001-- 2007-2012
Piaggio Liberty 125 3V ie 10,4 CV, 7,6 kw 1cil. M73400 Bastidores: RP8M73400 henceforth0001001-- 2014-2015
Piaggio Liberty 125 3V ie ABS 10,9 CV, 8 kw 1cil. M89100 Bastidores: RP8M89100 henceforth0001001-- 2016
Piaggio Liberty 125 3V ie ABS 10,9 CV, 8 kw 1cil. MA4100 Bastidores: RP8MA410000001001-RP8MA4100ZZ999999 2017-2019
Piaggio Liberty 125 3V ie ABS IGET Euro4 10,9 CV, 8 kw 1cil. MA4100 Bastidores: RP8MA410000001001-RP8MA4100ZZ999999 2020
Piaggio Liberty 125 S 3V ie ABS IGET Euro4 10,9 CV, 8 kw 1cil. MA4100 Bastidores: RP8MA410000001001-RP8MA4100ZZ999999 2020
Piaggio Liberty 125 S 3V ie Sport ABS 10,9 CV, 8 kw 1cil. M89100 Bastidores: RP8M89100 henceforth0001001-- 2016
Piaggio Liberty 125 S 3V ie Sport ABS 10,9 CV, 8 kw 1cil. MA4100 Bastidores: RP8MA410000001001-RP8MA4100ZZ999999 2017-2019
Piaggio Medley 125 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2019
Piaggio Medley 125 3V ie ABS IGET Euro4 15 CV, 11 kw 1cil. MB0100 Bastidores: RP8MB0100 henceforth0001001-- 2020
Piaggio Medley 125 3V ie Special Edition ABS 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2019
Piaggio Medley 125 4V ie ABS IGET Euro5 15 CV, 11 kw 1cil. MD0100 Bastidores: RP8MD010000000001-- 2021-2022
Piaggio Medley 125 S 3V ie ABS IGET Euro4 15 CV, 11 kw 1cil. MB0100 Bastidores: RP8MB0100 henceforth0001001-- 2020
Piaggio Medley 125 S 4V ie ABS IGET Euro5 15 CV, 11 kw 1cil. MD0100 Bastidores: RP8MD010000000001-- 2021-2022
Piaggio MP3 125 15 CV, 11 kw 1cil. M47300 Bastidores: ZAPM47300 henceforth0001001-- 2007-2008
Piaggio MP3 125 ie 15 CV, 11 kw 1cil. M63100 Bastidores: ZAPM63100 henceforth0001001-- 2009-2010
Piaggio MP3 125 ie Hybrid 15 CV, 11 kw 1cil. M65100 Bastidores: ZAPM65100 henceforth0001001-- 2010-2012
Piaggio MP3 125 ie Yourban ERL 15 CV, 11 kw 1cil. M71200 Bastidores: --- 2011-2013
Piaggio MP3 250 LT ie 22,5 CV, 16,5 kw 1cil. M64100 Bastidores: ZAPM64100 henceforth0001001-- 2009-2010
Piaggio MP3 250 RL ie 22,5 CV, 16,5 kw 1cil. M47201 Bastidores: ZAPM47201 henceforth0001001-- 2007-2008
Piaggio MP3 250 RL ie MIC 22,5 CV, 16,5 kw 1cil. M63200 Bastidores: ZAPM63200 henceforth0001001-- 2009-2010
Piaggio MP3 300 ERL ie Hybrid 25 CV, 18,2 kw 1cil. M65200 Bastidores: ZAPM65200 henceforth0001001-- 2012-2013
Piaggio MP3 300 LT ie 22,4 CV, 16,5 kw 1cil. M64102 Bastidores: --- 2010-2011
Piaggio MP3 300 LT ie Business 22,4 CV, 16,5 kw 1cil. M64102 Bastidores: M64102 henceforth0000001001-- 2013-2015
Piaggio MP3 300 LT ie Business ABS 21 CV, 15,5 kw 1cil. TA1100 Bastidores: ZAPTA1100 henceforth0001001-- 2017-2018
Piaggio MP3 300 LT ie Business ABS 23,1 CV, 17 kw 1cil. M86200 Bastidores: ZAPM86200 henceforth0001001-- 2015-2017
Piaggio MP3 300 LT ie Hybrid 24,7 CV, 18,2 kw 1cil. M72100 Bastidores: ZAPM72100 henceforth0001001-- 2010-2016
Piaggio MP3 300 LT ie Sport 22,7 CV, 16,7 kw 1cil. M64102 Bastidores: M64102 henceforth0000001001-- 2013-2015
Piaggio MP3 300 LT ie Sport ABS 21 CV, 15,5 kw 1cil. TA19L Bastidores: ZAPTA19L henceforth00001001-- 2017-2018
Piaggio MP3 300 LT ie Sport ABS 23,1 CV, 17 kw 1cil. M86200 Bastidores: ZAPM86200 henceforth0001001-- 2016-2017
Piaggio MP3 300 LT ie Touring 22,4 CV, 16,5 kw 1cil. M64102 Bastidores: ZAPM64102 henceforth0001001-- 2012-2013
Piaggio MP3 300 LT ie Yourban 22,7 CV, 16,7 kw 1cil. M75100 Bastidores: ZAPM75100 henceforth0001001-- 2011-2016
Piaggio MP3 300 LT ie Yourban ABS 21 CV, 15,5 kw 1cil. TA0100 Bastidores: ZAPTA0100 henceforth0001001-- 2017-2020
Piaggio MP3 300 LT ie Yourban Sport 22,7 CV, 16,7 kw 1cil. M75100 Bastidores: ZAPM75100 henceforth0001001-- 2012-2016
Piaggio MP3 300 RL ie Touring 22,4 CV, 16,5 kw 1cil. M63301 Bastidores: ZAPM63301 henceforth0001001-- 2013
Piaggio MP3 300 RL ie Yourban 22,4 CV, 16,5 kw 1cil. M71200 Bastidores: ZAPM71200 henceforth0001001-- 2012-2015
Piaggio MP3 300 RL ie Yourban 22,7 CV, 16,7 kw 1cil. M71200 Bastidores: ZAPM71200 henceforth0001001-- 2016-2017
Piaggio MP3 300 RL ie Yourban Sport 22,4 CV, 16,5 kw 1cil. M71200 Bastidores: ZAPM71200 henceforth0001001-- 2013-2015
Piaggio MP3 300 RL ie Yourban Sport 22,7 CV, 16,7 kw 1cil. M71200 Bastidores: ZAPM71200 henceforth0001001-- 2016-2017
Piaggio MP3 400 LT ie 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2009-2012
Piaggio MP3 400 LT ie Sport 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2011
Piaggio MP3 400 LT ie Touring 32,6 CV, 24 kw 1cil. M64200 Bastidores: ZAPM64200 henceforth0001001-- 2012-2013
Piaggio MP3 400 RL ie 32,6 CV, 24 kw 1cil. M59100 Bastidores: ZAPM59100 henceforth0001001-ZAPM59101 henceforth0005275 2007-2008
Piaggio MP3 400 RL ie 32,6 CV, 24 kw 1cil. M59101 Bastidores: ZAPM59101 henceforth0005276-- 2011-2012
Piaggio MP3 400 RL ie MIC 32,6 CV, 24 kw 1cil. M59102 Bastidores: ZAPM59102 henceforth0001001-- 2009-2010
Piaggio MP3 500 ie Business ABS ASR 39 CV, 28,5 kw 1cil. TA1200 Bastidores: ZAPTA1200 henceforth0001001-- 2017-2018
Piaggio MP3 500 ie Sport ABS ASR 39 CV, 28,5 kw 1cil. TA1200 Bastidores: ZAPTA1200 henceforth0001001-- 2017-2018
Piaggio MP3 500 LT ie ABS ASR 39 CV, 28,5 kw 1cil. TA1200 Bastidores: ZAPTA1200 henceforth0001001-- 2018
Piaggio MP3 500 LT ie Business 40,1 CV, 29,5 kw 1cil. M64300 Bastidores: ZAPM64300 henceforth0001001-- 2011-2014
Piaggio MP3 500 LT ie Business ABS ASR 40,1 CV, 29,5 kw 1cil. M86100/M86101 Bastidores: ZAPM86100 henceforth0001001-- 2015-2017
Piaggio MP3 500 LT ie Sport 40,1 CV, 29,5 kw 1cil. M64300 Bastidores: ZAPM64300 henceforth0001001-- 2013-2014
Piaggio MP3 500 LT ie Sport ABS ASR 40,1 CV, 29,5 kw 1cil. M86100/M86101 Bastidores: ZAPM86100 henceforth0001001-- 2015-2017
Piaggio Super Hexagon 125 GTX 12 pulgadas 15 CV, 11 kw 1cil. M2000002 Bastidores: ZAPM2000002 henceforth00001-- 2002-2003
Piaggio X7 125 14 CV, 10,3 kw 1cil. M62100 Bastidores: ZAPM62100 henceforth0001001-- 2008
Piaggio X7 125 ie Evo 15 CV, 11 kw 1cil. M62101 Bastidores: ZAPM62101 henceforth0001001-- 2009-2012
Piaggio X7 125 ie Evo 15 CV, 11 kw 1cil. M62101 Bastidores: ZAPM62101 henceforth0001001-- 2014-2014
Piaggio X7 250 ie 22,2 CV, 16,3 kw 1cil. M62200 Bastidores: ZAPM62200 henceforth0001001-- 2008-2010
Piaggio X7 300 ie Evo 22,4 CV, 16,5 kw 1cil. M62201 Bastidores: ZAPM62201 henceforth0001001-- 2010-2012
Piaggio X8 125 15 CV, 11 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0001001-ZAPM36200 henceforth0007986 2004
Piaggio X8 125 15 CV, 11 kw 1cil. M36301 Bastidores: ZAPM36301 henceforth0001001-ZAPM36301 henceforth0014608 2005-2007
Piaggio X8 125 Premium 15 CV, 11 kw 1cil. M36600 Bastidores: ZAPM36600 henceforth0001001-ZAPM36600 henceforth0003696 2007
Piaggio X8 200 19 CV, 13,8 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0001001-ZAPM36200 henceforth0007986 2004
Piaggio X8 200 19 CV, 13,8 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0007987-ZAPM36200 henceforth0015761 2005
Piaggio X8 250 ie 21,2 CV, 15,6 kw 1cil. M36400 Bastidores: ZAPM36400 henceforth0001001-- 2006-2008
Piaggio X8 400 ie 33,3 CV, 24,5 kw 1cil. M52100 Bastidores: ZAPM52100 henceforth0001001-- 2007-2008
Piaggio X9 500 ie 39 CV, 28,5 kw 1cil. M27000 Bastidores: ZAPM2700001 henceforth00001-ZAPM2700003-999999 2001-2003
Piaggio X9 500 ie Evolution 39 CV, 28,5 kw 1cil. M2700004 Bastidores: ZAPM2700004 henceforth00001-ZAPM2700005-999999 2004-2005
Piaggio X9 500 ie Evolution ABS 39 CV, 28,5 kw 1cil. M27000 Bastidores: ZAPM27000 henceforth0001001-- 2006-2007
Piaggio X9 500 ie Evolution ABS 39 CV, 28,5 kw 1cil. M2700006 Bastidores: ZAPM2700006 henceforth00001-- 2004-2005
Piaggio X9 500 ie Street 39 CV, 28,5 kw 1cil. - Bastidores: --- 2005-2007
Piaggio XEvo 125 15 CV, 11 kw 1cil. M36601 Bastidores: ZAPM36601 henceforth0001001-- 2007-2016
Piaggio XEvo 125 Sport 15 CV, 11 kw 1cil. M36401 Bastidores: ZAPM36401 henceforth0001001-- 2014-2016
Piaggio XEvo 250 ie 21,7 CV, 16 kw 1cil. M36401 Bastidores: --- 2007-2010
Piaggio XEvo 400 ie 33,3 CV, 24,5 kw 1cil. M52101 Bastidores: ZAPM52101 henceforth0001003-- 2007-2012
