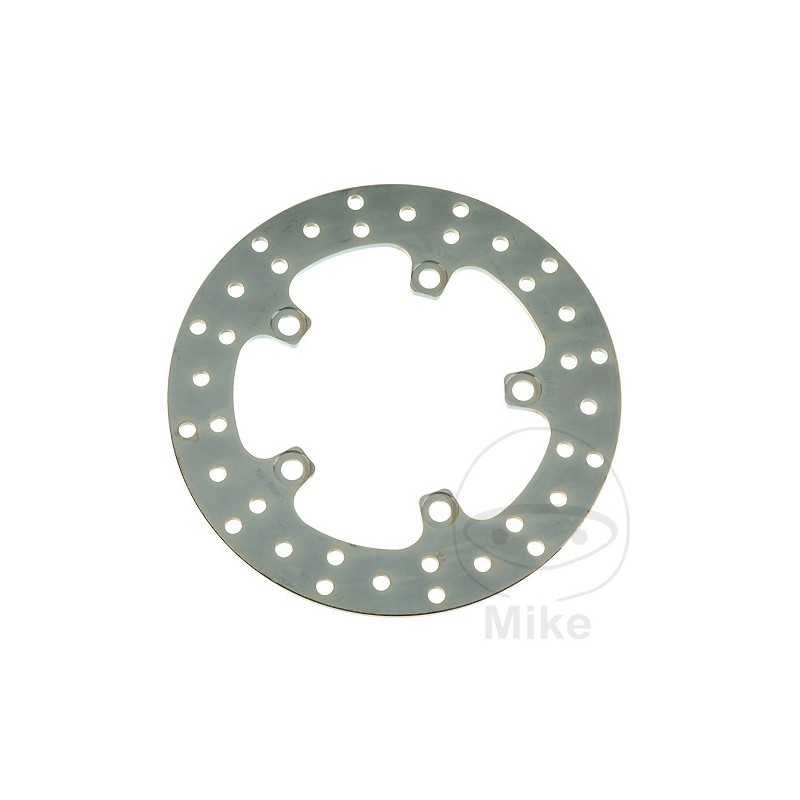

TRW motorcycle brake disc 788.18.57

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 106MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67E Bastidores: RN458 henceforth03193-- 2018
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67J Bastidores: RN458 henceforth05363-- 2019
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67S Bastidores: RN458 henceforth07233-- 2020
Yamaha MT-10 1000 A /Touring Edition ABS MTN1000 160 CV, 118 kw 4cil. RN458 B67S Bastidores: RN458 henceforth07233-- 2021
Yamaha MT-10 1000 A ABS 160 CV, 118 kw 4cil. RN451 B671 Bastidores: RN451 henceforth00301-- 2016
Yamaha MT-10 1000 A ABS 160 CV, 118 kw 4cil. RN458 B678 Bastidores: RN458 henceforth00301-- 2017
Yamaha MT-10 1000 A ABS MTN1000 166 CV, 122 kw 4cil. RN781 B5Y1 Bastidores: --- 2022
Yamaha MT-10 1000 SP A ABS 160 CV, 118 kw 4cil. RN455 BW81 Bastidores: RN455 henceforth00301-- 2017-2020
Yamaha MT-10 1000 SP A ABS MTN1000D 160 CV, 118 kw 4cil. RN455 BW81 Bastidores: RN455 henceforth00301-- 2021
Yamaha MT-10 1000 SP A ABS MTN1000D 166 CV, 122 kw 4cil. RN785 BGG1 Bastidores: --- 2022
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY1 Bastidores: RN121 henceforth00301-- 2004
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY7 Bastidores: RN121 henceforth16418-- 2005
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYE Bastidores: RN126 henceforth00301-- 2006
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYR Bastidores: RN126 henceforth03661-- 2006
Yamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C81 Bastidores: RN191 henceforth00301-- 2007
Yamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C88 Bastidores: RN191 henceforth13277-- 2008
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14B1 Bastidores: RN221 henceforth00301-- 2009
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BC Bastidores: RN221 henceforth06659-- 2010
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BR Bastidores: RN221 henceforth09717-- 2011
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KB8 Bastidores: RN225 henceforth00301-- 2012
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KBT Bastidores: RN225 henceforth02227-- 2013
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG1 Bastidores: RN225 henceforth03557-- 2014
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG5 Bastidores: RN225 henceforth03779-- 2014
Yamaha YZF-R1 1000 200 CV, 147 kw 4cil. RN321 2CR1 Bastidores: RN321 henceforth00301-- 2015
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN321 2CRC Bastidores: RN321 henceforth03306-- 2016
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN491 BX41 Bastidores: RN491 henceforth00301-- 2017
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX46 Bastidores: RN497 henceforth00301-- 2018
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX4D Bastidores: RN497 henceforth02249-- 2019
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3L1 Bastidores: RN651 henceforth00301-- 2020-2021
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3LG Bastidores: RN651 henceforth04712-- 2022
Yamaha YZF-R1 1000 Anniversary 182 CV, 134 kw 4cil. RN225 1KBJ Bastidores: RN225 henceforth00376-- 2012-2013
Yamaha YZF-R1 1000 Anniversary ABS 200 CV, 147 kw 4cil. RN321 2CRJ Bastidores: RN321 henceforth03246-- 2016
Yamaha YZF-R1 1000 M 200 CV, 147 kw 4cil. RN326 2KS1 Bastidores: RN326 henceforth00301-- 2015
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN326 2KSC Bastidores: RN326 henceforth01168-- 2016
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN494 2KSF Bastidores: RN494 henceforth00301-- 2017
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN499 2KSM Bastidores: RN499 henceforth00301-- 2018-2019
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2020
Yamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2021
Yamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4SD Bastidores: RN655 henceforth01145-- 2022-2023
Yamaha YZF-R1 1000 SP 175 CV, 129 kw 4cil. RN129 4B11 Bastidores: RN129 henceforth00301-- 2006
Yamaha YZF-R1 1000 World GP 60th Anniversary ABS 200 CV, 147 kw 4cil. RN651 B3LS Bastidores: RN651 henceforth04734-- 2022-2023
Yamaha YZF-R6 600 106 CV, 78 kw 4cil. RJ052 5SL2 Bastidores: RJ052 henceforth00301-- 2003
Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ051 5SL1 Bastidores: RJ051 henceforth00301-- 2003
Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ091 5SLB Bastidores: RJ091 henceforth00301-- 2004
Yamaha YZF-R6 600 120 CV, 88 kw 4cil. RJ095 5SLM Bastidores: RJ095 henceforth00301-- 2005
Yamaha YZF-R6 600 120 CV, 88 kw 4cil. RJ095 5SLV Bastidores: RJ095 henceforth05856-- 2005
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SL Bastidores: RJ155 henceforth00301-- 2010
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SV Bastidores: RJ155 henceforth02714-- 2011
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSG Bastidores: RJ155 henceforth04386-- 2012
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSU Bastidores: RJ155 henceforth05856-- 2013
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CX4 Bastidores: RJ155 henceforth07120-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXB Bastidores: RJ155 henceforth07100-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXE Bastidores: RJ155 henceforth08279-- 2015
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXM Bastidores: RJ155 henceforth09069-- 2016-2017
Yamaha YZF-R6 600 127 CV, 93 kw 4cil. RJ111 2C01 Bastidores: RJ111 henceforth00301-- 2006
Yamaha YZF-R6 600 127 CV, 93 kw 4cil. RJ111 2C0B Bastidores: RJ111 henceforth15305-- 2007
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13S1 Bastidores: RJ151 henceforth00301-- 2008
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13SB Bastidores: RJ151 henceforth13030-- 2009
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN64 Bastidores: RJ271 henceforth00301-- 2017
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6A Bastidores: RJ271 henceforth04084-- 2018
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6H Bastidores: RJ271 henceforth06612-- 2019
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6P Bastidores: RJ271 henceforth09279-- 2020
Yamaha YZF-R6 600 Anniversary 123,8 CV, 91 kw 4cil. RJ155 1JSL Bastidores: RJ155 henceforth04983-- 2012-2013
Yamaha YZF-R6 600 S Edition 127 CV, 93 kw 4cil. RJ111 2C01 Bastidores: RJ111 henceforth00301-- 2006-2007
