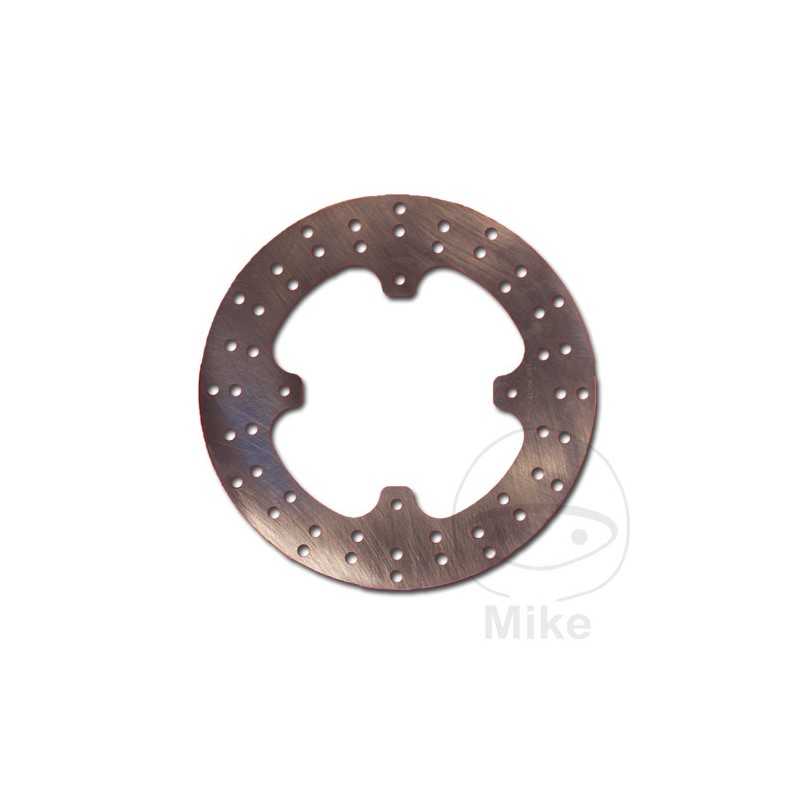

TRW motorcycle brake disc 788.17.41

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FX 650 Vigor 34 CV, 25 kw 1cil. RD09C X Bastidores: VTM RD09C henceforthXE110002-- 1999-2000
Honda FX 650 Vigor 39 CV, 29 kw 1cil. RD09A X Bastidores: VTM RD09A henceforthXE420004-- 1999-2000
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 N Bastidores: RD02-3500001-RD02-3500740 1992
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 P Bastidores: RD02-3600001-- 1993
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD02 R Bastidores: RD02-7000001-- 1994
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD087 S Bastidores: ZDC RD087-1SF000396-- 1995
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B T Bastidores: ZDC RD08B henceforthTF100001-- 1996
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B V Bastidores: ZDC RD08B henceforthVF200001-- 1997
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B W Bastidores: ZDC RD08B henceforthWF300001-- 1998
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B X Bastidores: ZDC RD08B henceforthXF300001-- 1999-2000
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 N Bastidores: RD02-5500015-RD02-5508074 1992
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 P Bastidores: RD02-5600354-- 1993
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 R Bastidores: RD02-5700005-- 1994
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD087 S Bastidores: ZDC RD087 henceforthSF000276-- 1995
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A T Bastidores: ZDC RD08A henceforthTF100001-- 1996
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A V Bastidores: ZDC RD08A 0VF200001-- 1997
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A W Bastidores: ZDC RD08A henceforthWF300001-- 1998
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A X Bastidores: ZDC RD08A henceforthXF300001-- 1999-2000
Honda SLR 650 34 CV, 25 kw 1cil. RD09C V Bastidores: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
Honda SLR 650 34 CV, 25 kw 1cil. RD09C W Bastidores: VTM RD09C henceforthWE000002-- 1998
Honda SLR 650 39 CV, 29 kw 1cil. RD09A V Bastidores: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
Honda SLR 650 39 CV, 29 kw 1cil. RD09A W Bastidores: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
