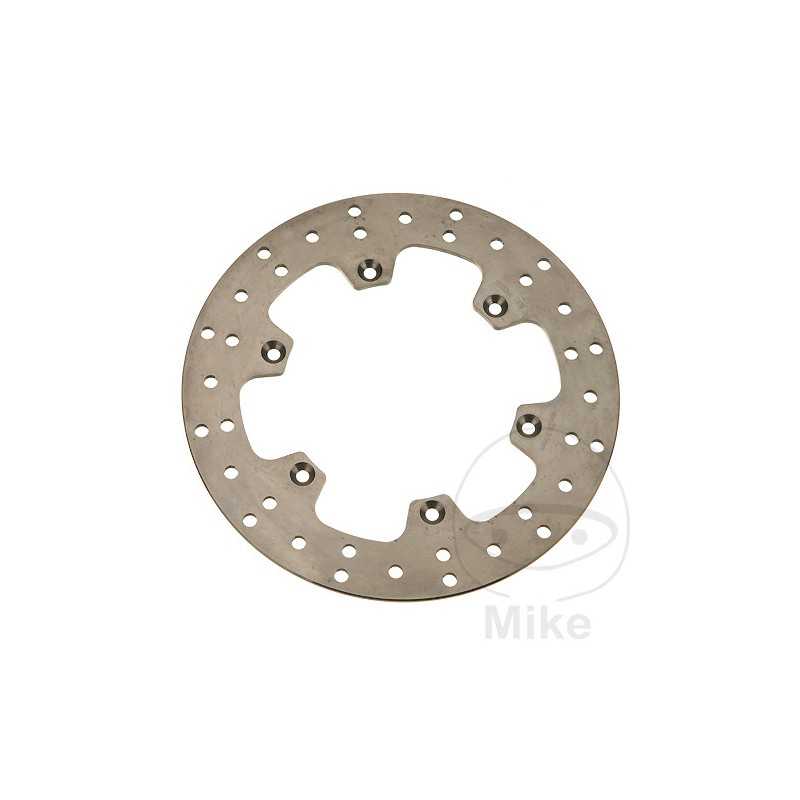

TRW motorcycle brake disc 788.10.63

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 132MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB1 Bastidores: 3TB henceforth00101-3TB henceforth20000 1990
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB3 Bastidores: 3TB henceforth37101-3TB henceforth56000 1991
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB5 Bastidores: 3TB henceforth58101-3TB henceforth90000 1992
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB7 Bastidores: 3TB-109101-- 1993
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB9 Bastidores: 3TB-161101-3TB-177999 1994
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW1 Bastidores: 3UW henceforth00101-3UW henceforth04000 1990
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW2 Bastidores: 3UW henceforth06101-3UW henceforth09000 1991
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW3 Bastidores: 3UW henceforth09101-3UW henceforth12000 1992
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW4 Bastidores: 3UW henceforth14101-- 1993
Yamaha XT 600 EN 34 CV, 25 kw 1cil. 3UW 4ME1 Bastidores: 3UW henceforth26101-3UW henceforth27999 1994
Yamaha XT 600 H 44 CV, 32 kw 1cil. 43F 43F Bastidores: 43F henceforth00101-43F henceforth36000 1984-1986
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 2KF Bastidores: 2KF henceforth00101-2KF henceforth35000 1987-1988
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 3PW1 Bastidores: 2KF henceforth19101-- 1989-1990
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP1 Bastidores: 3TB henceforth23101-3TB henceforth35000 1991
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP3 Bastidores: 3TB henceforth95101-3TB-109000 1992
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP5 Bastidores: 3TB-141101-- 1993
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP6 Bastidores: 3TB-154101-3TB-160999 1994-1995
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE1 Bastidores: 3UW henceforth04101-3UW henceforth06000 1991
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE2 Bastidores: 3UW henceforth12101-3UW henceforth14000 1992
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE3 Bastidores: 3UW henceforth18101-- 1993
Yamaha XT 600 KN 34 CV, 25 kw 1cil. 3UW 4MF1 Bastidores: 3UW henceforth28101-3UW029999 1994-1995
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 2NF Bastidores: 2NF henceforth00101-2NF henceforth05000 1987-1988
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 3PX1 Bastidores: 2NF henceforth02101-- 1989-1990
Yamaha XT 600 N 27 CV, 20 kw 1cil. 43F 49H Bastidores: 43F henceforth36101-43F henceforth41000 1984-1986
Yamaha XT 600 Z Tenere 27 CV, 20 kw 1cil. 55W 55W Bastidores: 55W henceforth00101-55W henceforth20000 1985
Yamaha XT 600 Z Tenere 44 CV, 32 kw 1cil. 34L 34L Bastidores: 34L henceforth00101-34L henceforth20000 1983
Yamaha XT 600 Z Tenere 44 CV, 32 kw 1cil. 34L 50T Bastidores: 34L henceforth20101-34L henceforth33000 1984
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 1VJ 1VJ Bastidores: 1VJ henceforth00101-1VJ henceforth41000 1986-1987
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ1 Bastidores: 3AJ henceforth00101-3AJ henceforth31000 1988
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ4 Bastidores: 3AJ henceforth34101-3AJ henceforth54000 1989
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ6 Bastidores: 3AJ henceforth56101-3AJ henceforth66000 1990-1991
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 55W 55W Bastidores: 55W henceforth00101-55W henceforth20000 1985
