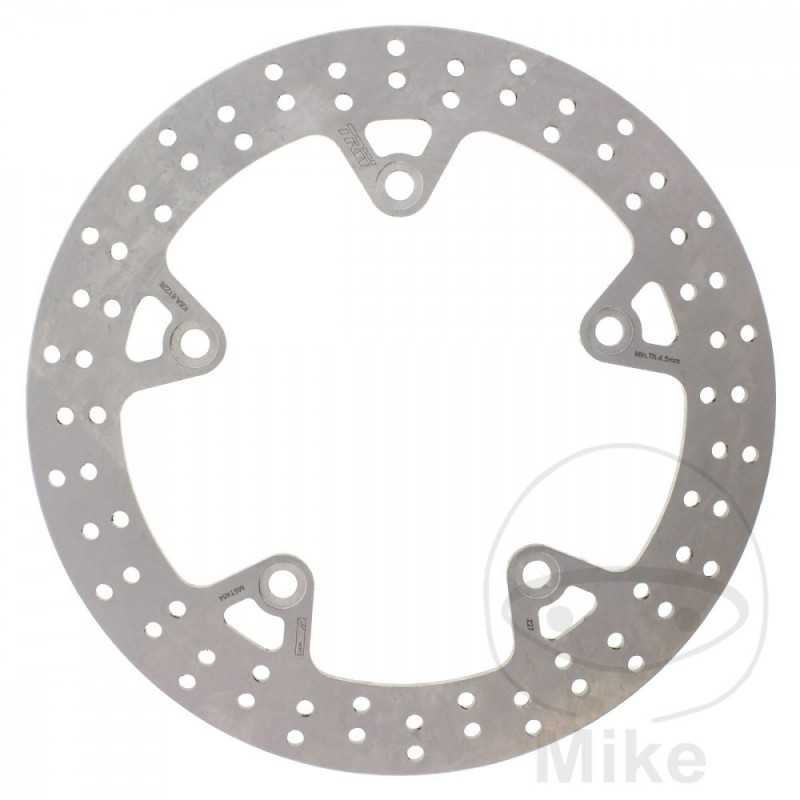

TRW motorcycle brake disc 788.10.20

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 136MM
CIRCLE SIZE: 160 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 1200 GS ABS LC llanta de fundición 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS ABS LC llanta de fundición 125 CV, 92 kw 2cil. R12W/K50 0A01 Bastidores: --- 2013-2016
BMW R 1200 GS ABS LC llanta de fundición DTC 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS ABS LC llanta de fundición ESA 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS ABS LC llanta de radios 125 CV, 92 kw 2cil. R12W/K50 0A01 Bastidores: --- 2013-2016
BMW R 1200 GS Adventure ABS DTC LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Adventure ABS ESA LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Adventure ABS LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Adventure ABS LC 125 CV, 92 kw 2cil. R12W/K51 0A02 Bastidores: --- 2014-2016
BMW R 1200 GS Adventure Triple Black ABS ESA LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017
BMW R 1200 GS Adventure Triple Black ABS LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017
BMW R 1200 GS Exclusive ABS LC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Exclusive ABS LC DTC 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Exclusive ABS LC ESA 125 CV, 92 kw 2cil. 1G12/K51 0A02 Bastidores: --- 2017-2018
BMW R 1200 GS Rally ABS LC 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS Rally ABS LC DTC 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS Rally ABS LC ESA 125 CV, 92 kw 2cil. 1G12/K50 0A51 Bastidores: --- 2017-2018
BMW R 1200 GS Triple Black ABS LC 125 CV, 92 kw 2cil. R12W/K50 0A01 Bastidores: --- 2016
BMW R 1200 RT ABS LC 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1200 RT ABS LC 125 CV, 92 kw 2cil. R12WT/K52 0A03 Bastidores: --- 2013-2016
BMW R 1200 RT ABS LC DTC 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1200 RT ABS LC ESA 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1250 GS ABS 136 CV, 100 kw 2cil. 1G13/K50 0J91 Bastidores: --- 2019
BMW R 1250 GS ABS 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS ABS DTC 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS ABS ESA 136 CV, 100 kw 2cil. 1G13/K50 0J91 Bastidores: --- 2019
BMW R 1250 GS ABS ESA 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS Adventure ABS 136 CV, 100 kw 2cil. 1G13/K51 0J51 Bastidores: --- 2019
BMW R 1250 GS Adventure ABS 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS Adventure ABS DTC 136 CV, 100 kw 2cil. 1G13/K51 0J51 Bastidores: --- 2019
BMW R 1250 GS Adventure ABS DTC 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS Adventure ABS ESA 136 CV, 100 kw 2cil. 1G13/K51 0J51 Bastidores: --- 2019
BMW R 1250 GS Adventure ABS ESA 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS Adventure Rally ABS 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS Rally ABS 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS TE ABS DTC ESA 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS TE Adventure ABS DTC ESA 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS TE Adventure Exclusive ABS DTC ESA 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS TE Adventure Rally ABS DTC ESA 136 CV, 100 kw 2cil. K51 0J51 Bastidores: --- 2020
BMW R 1250 GS TE Exclusive ABS DTC ESA 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 GS TE Rally ABS DTC ESA 136 CV, 100 kw 2cil. K50 0J91 Bastidores: --- 2020
BMW R 1250 R ABS 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 R ABS 136 CV, 100 kw 2cil. K53 0J71 Bastidores: --- 2020
BMW R 1250 R ABS DTC 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 R ABS DTC 136 CV, 100 kw 2cil. K53 0J71 Bastidores: --- 2020
BMW R 1250 R ABS ESA 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 R ABS ESA 136 CV, 100 kw 2cil. K53 0J71 Bastidores: --- 2020
BMW R 1250 RS ABS 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RS ABS 136 CV, 100 kw 2cil. K54 0J81 Bastidores: --- 2020
BMW R 1250 RS ABS DTC 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RS ABS DTC 136 CV, 100 kw 2cil. K54 0J81 Bastidores: --- 2020
BMW R 1250 RS ABS ESA 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RS ABS ESA 136 CV, 100 kw 2cil. K54 0J81 Bastidores: --- 2020
BMW R 1250 RT ABS 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW R 1250 RT ABS 136 CV, 100 kw 2cil. K52 0L01 Bastidores: --- 2020
BMW R 1250 RT ABS DTC 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW R 1250 RT ABS DTC 136 CV, 100 kw 2cil. K52 0L01 Bastidores: --- 2020
BMW R 1250 RT ABS ESA 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW R 1250 RT ABS ESA 136 CV, 100 kw 2cil. K52 0L01 Bastidores: --- 2020
BMW R 1250 RT LE ABS 136 CV, 100 kw 2cil. K52 0L01 Bastidores: --- 2020
BMW R 1250 RT SE ABS 136 CV, 100 kw 2cil. K52 0L01 Bastidores: --- 2020
