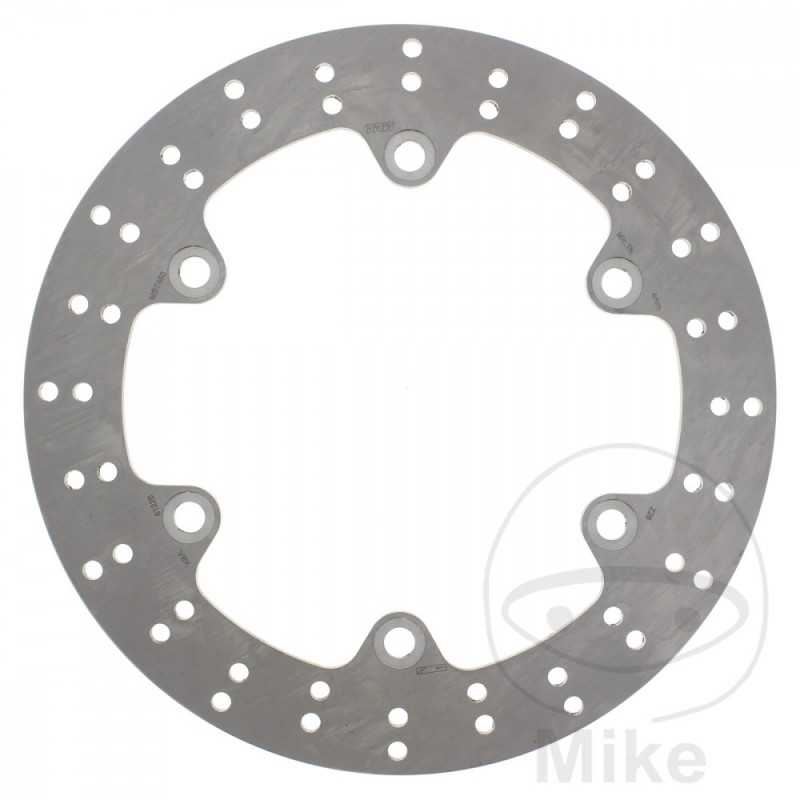

TRW motorcycle brake disc 788.10.15

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSS 125 AD Forza ABS 15 CV, 11 kw 1cil. JF60B F Bastidores: ZDC JF60B-FF000001-ZDC JF60B-FF999999 2015-2016
Honda NSS 125 AD Forza ABS 15 CV, 11 kw 1cil. JF69A H Bastidores: ZDC JF69A-HF000001-ZDC JF69A-HF999999 2017-2018
Honda NSS 125 AD Forza ABS Top Case 15 CV, 11 kw 1cil. JF69A K Bastidores: ZDC JF69A-KF050001-- 2019-2020
