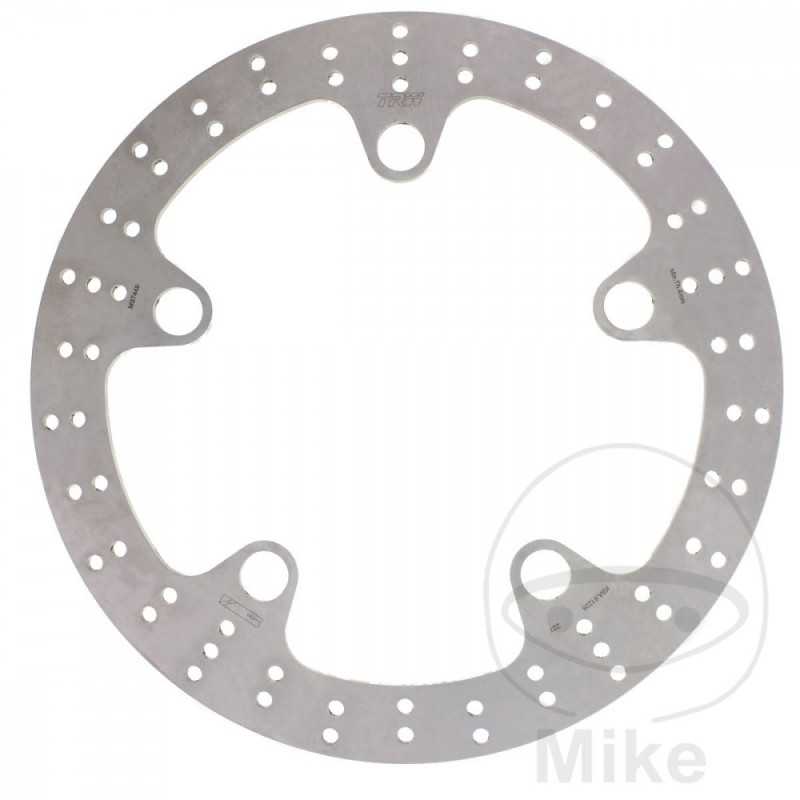

TRW motorcycle brake disc 788.10.13

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 165.3MM
CIRCLE SIZE: 195 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 19.5
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1800 C Goldwing/F6C/Valkyrie ABS 117 CV, 86 kw 6cil. SC68P E Bastidores: JH2 SC68P-EK000001-- 2014
Honda GL 1800 C Goldwing/F6C/Valkyrie ABS 117 CV, 86 kw 6cil. SC68P F Bastidores: JH2 SC68P-EK000001-- 2015-2016
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC70A C Bastidores: JH2 SC70A-CK000001-JH2 SC70A-CK099999 2012
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC70A D Bastidores: JH2 SC70A-DK000001-- 2013
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC76A H Bastidores: JH2 SC76A-HK100001-- 2017
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC76A J Bastidores: JH2 SC76A-JK200001-- 2018-2021
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70C C Bastidores: JH2 SC70C-CK000001-JH2 SC70C-CK099999 2012
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70C D Bastidores: JH2 SC70C-DK100001-- 2013
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76C H Bastidores: JH2 SC76C-HK100001-- 2017
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76C J Bastidores: JH2 SC76C-JK200001-- 2018-2021
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70G E Bastidores: JH2 SC70G-EK000001-- 2014
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70G F Bastidores: JH2 SC70G-FK100001-- 2015
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76F G Bastidores: JH2 SC76F-GK000001-- 2016
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC70E E Bastidores: JH2 SC70E-EK000001-- 2014
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC70E F Bastidores: JH2 SC70E-FK100001-- 2015
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC76E G Bastidores: JH2 SC76E-GK000001-- 2016
