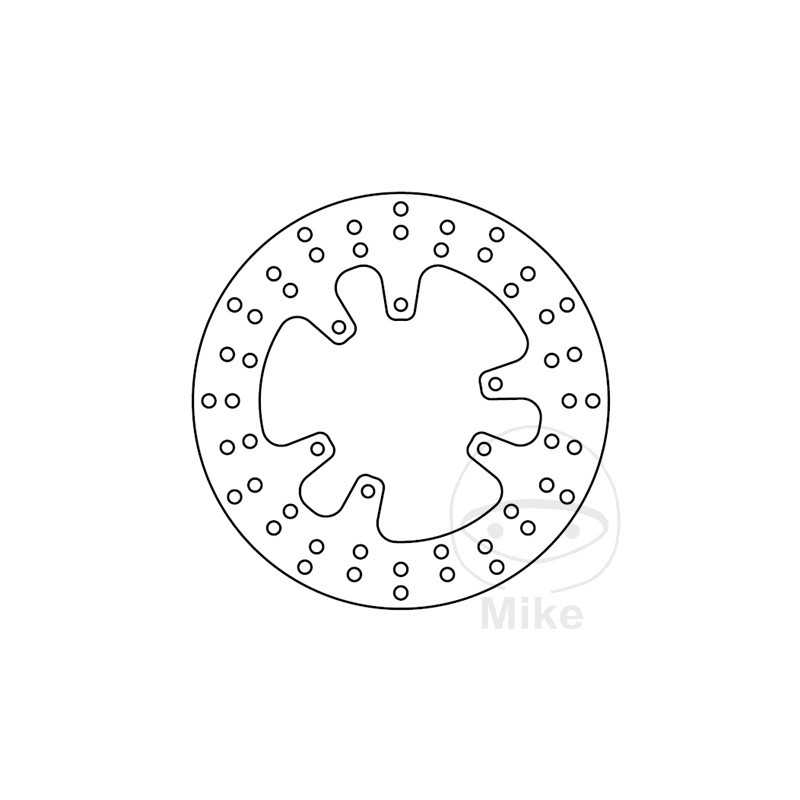

TRW motorcycle brake disc 788.09.82

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 86MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 2KF Bastidores: 2KF henceforth00101-2KF henceforth35000 1987-1988
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 3PW1 Bastidores: 2KF henceforth19101-- 1989-1990
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 2NF Bastidores: 2NF henceforth00101-2NF henceforth05000 1987-1988
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 3PX1 Bastidores: 2NF henceforth02101-- 1989-1990
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ1 Bastidores: 3AJ henceforth00101-3AJ henceforth31000 1988
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ4 Bastidores: 3AJ henceforth34101-3AJ henceforth54000 1989
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ6 Bastidores: 3AJ henceforth56101-3AJ henceforth66000 1990-1991
Yamaha XTZ 660 H Tenere 46 CV, 34 kw 1cil. 3YF 4MY3 Bastidores: 3YF-106101-- 1996-1998
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF1 Bastidores: 3YF henceforth00101-3YF henceforth29000 1991
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF4 Bastidores: 3YF henceforth32101-3YF henceforth57000 1992
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF7 Bastidores: 3YF henceforth64101-- 1993
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 4MY1 Bastidores: 3YF henceforth88101-3YF-104099 1994-1995
Yamaha XTZ 660 N Tenere 27 CV, 20 kw 1cil. 3YF 3YF3 Bastidores: 3YF henceforth59101-3YF henceforth62000 1992
Yamaha XTZ 660 N Tenere 27 CV, 20 kw 1cil. 3YF 3YF6 Bastidores: 3YF henceforth62101-- 1993
Yamaha XTZ 660 N Tenere 34 CV, 25 kw 1cil. 4MD 4NW1 Bastidores: 4MD henceforth01101-- 1994-1995
