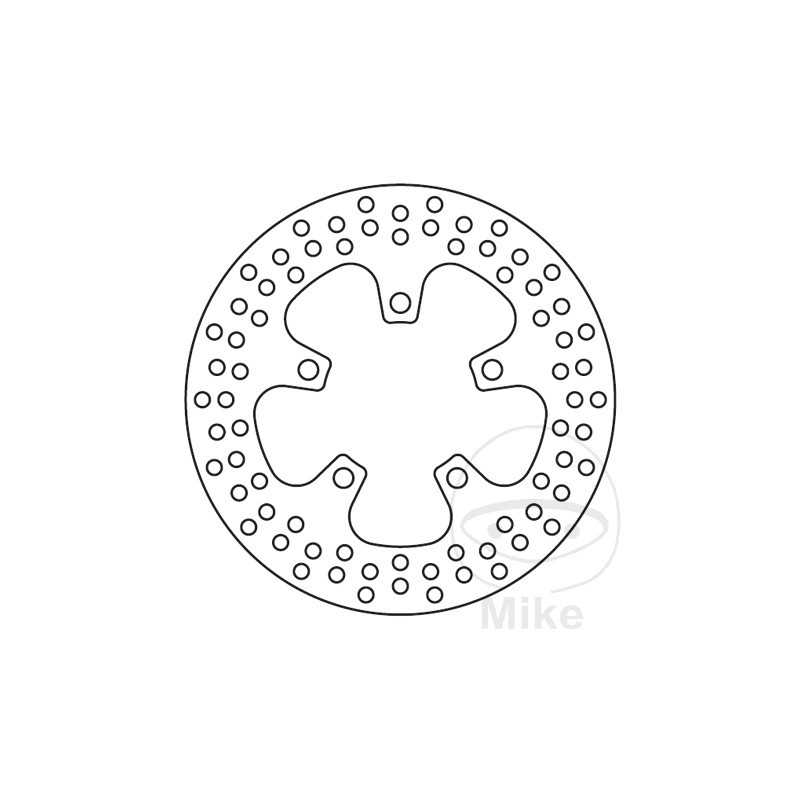

TRW motorcycle brake disc 788.08.83

All brake discs have an ABE, also for scooters.

Discs are low-wear and have up to 30% longer life than some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs are made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature buildup and breakdown allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually driven with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated brake edge.

- In rigid and floating versions

- Coordinated design from front to rear axle.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 83MM
CIRCLE SIZE: 104 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 1 Bastidores: ZX750PPA henceforth00001-ZX750PPA henceforth13000 1996
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 2 Bastidores: ZX750PPA henceforth13001-ZX750PPA henceforth25000 1997
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 3 Bastidores: ZX750PPA henceforth25001-ZX750PPA henceforth36000 1998
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 4 Bastidores: ZX750PPA henceforth36001-ZX750PPA henceforth47000 1999
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 5 Bastidores: ZX750PPA henceforth47001-ZX750PPA henceforth53000 2000
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 6 Bastidores: ZX750PPA henceforth53001-ZX750PPA henceforth58000 2001
Kawasaki ZX-7R 750 P Ninja 122 CV, 90 kw 4cil. ZX750PPA 7 Bastidores: ZX750PPA henceforth58001-ZX750PPA-999999 2002
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 1 Bastidores: ZX750PPA henceforth00001-ZX750PPA henceforth13000 1996
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 2 Bastidores: ZX750PPA henceforth13001-ZX750PPA henceforth25000 1997
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 3 Bastidores: ZX750PPA henceforth25001-ZX750PPA henceforth36000 1998
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 4 Bastidores: ZX750PPA henceforth36001-ZX750PPA henceforth47000 1999
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 5 Bastidores: ZX750PPA henceforth47001-ZX750PPA henceforth53000 2000
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 6 Bastidores: ZX750PPA henceforth53001-ZX750PPA henceforth58000 2001
Kawasaki ZX-7R 750 P Ninja 98 CV, 72 kw 4cil. ZX750PPA 7 Bastidores: ZX750PPA henceforth58001-ZX750PPA-999999 2002
Kawasaki ZX-7RR 750 N Ninja 122 CV, 90 kw 4cil. ZX750NAA 1 Bastidores: ZX750NNA henceforth00501-ZX750NNA henceforth01500 1996
Kawasaki ZX-7RR 750 N Ninja 122 CV, 90 kw 4cil. ZX750NNA 2 Bastidores: ZX750NNA henceforth01501-ZX750NNA-999999 1997-1999
Kawasaki ZX-7RR 750 N Ninja 98 CV, 72 kw 4cil. ZX750NAA 1 Bastidores: ZX750NNA henceforth00501-ZX750NNA henceforth01500 1996
Kawasaki ZX-7RR 750 N Ninja 98 CV, 72 kw 4cil. ZX750NNA 2 Bastidores: ZX750NNA henceforth01501-ZX750NNA-999999 1997-1999
Kawasaki ZX-9R 900 B Ninja 139/100 CV, 102/74 kw 4cil. ZX900B 1 Bastidores: ZX900B henceforth00001-ZX900B henceforth18000 1994
Kawasaki ZX-9R 900 B Ninja 139/100 CV, 102/74 kw 4cil. ZX900B 2 Bastidores: ZX900B henceforth18001-ZX900B henceforth28000 1995
Kawasaki ZX-9R 900 B Ninja 139/98 CV, 102/72 kw 4cil. ZX900B 3 Bastidores: ZX900B henceforth28001-ZX900B henceforth38000 1996
Kawasaki ZX-9R 900 B Ninja 139/98 CV, 102/72 kw 4cil. ZX900B 4 Bastidores: ZX900B henceforth38001-ZX900B-999999 1997
Kawasaki ZXR 750 H Stinger 107/100 CV, 78,5/74 kw 4cil. ZX750H 1 Bastidores: ZX750H henceforth00001-ZX750H henceforth15000 1989
Kawasaki ZXR 750 H Stinger 107/100 CV, 78,5/74 kw 4cil. ZX750H 2 Bastidores: ZX750H henceforth15001-ZX750H-999999 1990
Kawasaki ZXR 750 J 100 CV, 74 kw 4cil. ZX750J 1 Bastidores: ZX750J henceforth00001-ZX750J henceforth13900 1991
Kawasaki ZXR 750 J 100 CV, 74 kw 4cil. ZX750J 2 Bastidores: ZX750J henceforth13901-ZX750J-999999 1992
Kawasaki ZXR 750 L 122/100 CV, 90/74 kw 4cil. ZX750L 1 Bastidores: ZX750L henceforth00001-ZX750L henceforth20000 1993
Kawasaki ZXR 750 L 122/100 CV, 90/74 kw 4cil. ZX750L 2 Bastidores: ZX750L henceforth20001-ZX750L henceforth30000 1994
Kawasaki ZXR 750 L 122/100 CV, 90/74 kw 4cil. ZX750L 3 Bastidores: ZX750L henceforth30001-ZX750L-999999 1995
Kawasaki ZXR 750 R 122/100 CV, 90/74 kw 4cil. ZX750K K1 Bastidores: ZX750K henceforth00001-ZX750K-999999 1991-1992
Kawasaki ZXR 750 R 122/100 CV, 90/74 kw 4cil. ZX750M M1 Bastidores: ZX750M henceforth00001-ZX750M henceforth02000 1993
Kawasaki ZXR 750 R 122/100 CV, 90/74 kw 4cil. ZX750M M2 Bastidores: ZX750M henceforth02001-ZX750M-999999 1994-1995
