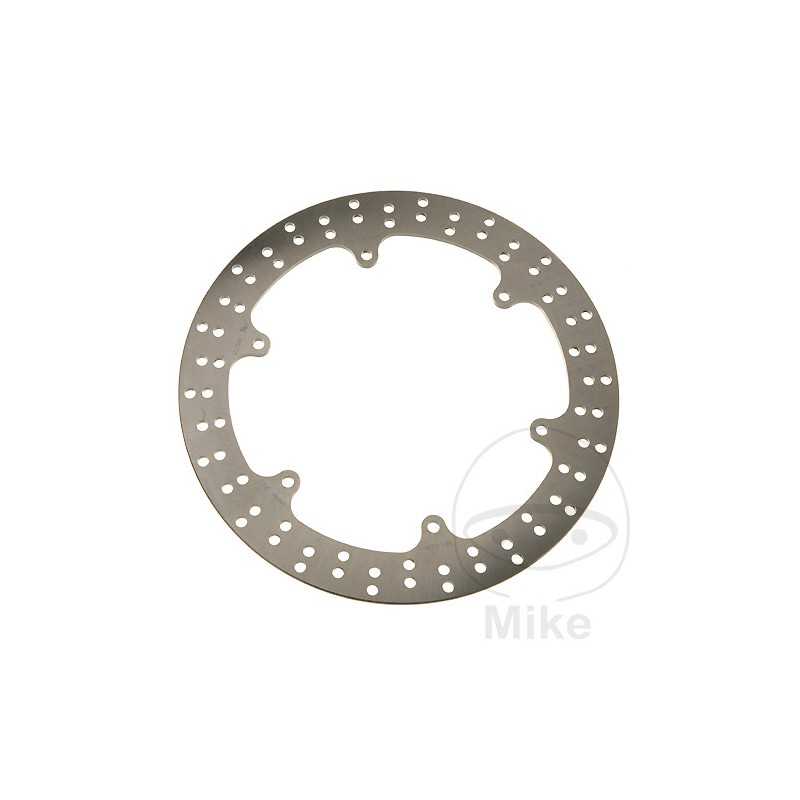

TRW motorcycle brake disc 788.07.43

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 198MM
CIRCLE SIZE: 216 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XJ 600 NH 50 CV, 37 kw 4cil. 4BR 4KA1 Bastidores: 4BR-133101-4BR-136999 1994
Yamaha XJ 600 NH 50 CV, 37 kw 4cil. 4BR 4KA2 Bastidores: 4BR-144101-4BR-200099 1995
Yamaha XJ 600 NH 50 CV, 37 kw 4cil. 4BR 4KA3 Bastidores: 4BR-200101-- 1996
Yamaha XJ 600 NH 50 CV, 37 kw 4cil. 4BR 4KA4 Bastidores: 4BR-229301-- 1997
Yamaha XJ 600 NN 34 CV, 25 kw 4cil. 4LX 4MB1 Bastidores: 4LX henceforth04101-4LX henceforth05999 1994
Yamaha XJ 600 NN 34 CV, 25 kw 4cil. 4LX 4MB2 Bastidores: 4LX henceforth06101-- 1995
Yamaha XJ 600 NN 34 CV, 25 kw 4cil. 4LX 4MB3 Bastidores: 4LX henceforth16101-4LX henceforth16999 1996
Yamaha XJ 600 NN 34 CV, 25 kw 4cil. 4LX 4MB4 Bastidores: 4LX henceforth21951-- 1997
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB1 Bastidores: 4BR henceforth20101-4BR henceforth26000 1992
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB2 Bastidores: 4BR henceforth58101-- 1993
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB4 Bastidores: 4BR henceforth85101-4BR henceforth92999 1994
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB5 Bastidores: 4BR-157101-- 1995
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB6 Bastidores: 4BR-211001-- 1996
Yamaha XJ 600 SH Diversion 50 CV, 37 kw 4cil. 4BR 4EB7 Bastidores: 4BR-229201-- 1997
Yamaha XJ 600 SN Diversion 27 CV, 20 kw 4cil. 4BR 4DS1 Bastidores: 4BR henceforth32101-4BR henceforth39000 1992
Yamaha XJ 600 SN Diversion 27 CV, 20 kw 4cil. 4BR 4DS2 Bastidores: 4BR henceforth65101-- 1993
Yamaha XJ 600 SN Diversion 34 CV, 25 kw 4cil. 4LX 4LX1 Bastidores: 4LX henceforth00101-4LX henceforth03999 1994
Yamaha XJ 600 SN Diversion 34 CV, 25 kw 4cil. 4LX 4LX2 Bastidores: 4LX henceforth08101-- 1995
Yamaha XJ 600 SN Diversion 34 CV, 25 kw 4cil. 4LX 4LX3 Bastidores: 4LX henceforth17001-- 1996
Yamaha XJ 600 SN Diversion 34 CV, 25 kw 4cil. 4LX 4LX4 Bastidores: 4LX henceforth22051-- 1997
Yamaha XVZ 1300 A Royal Star 74 CV, 54,5 kw 4cil. 4YP 4YP1 Bastidores: 4YP henceforth00702-- 1997
Yamaha XVZ 1300 A Royal Star 74 CV, 54,5 kw 4cil. 4YP 4YP2 Bastidores: 4YP henceforth06137-- 1998
Yamaha XVZ 1300 A Royal Star 74 CV, 54,5 kw 4cil. 4YP 4YP3 Bastidores: 4YP henceforth08287-- 1999
Yamaha XVZ 1300 A Royal Star 74 CV, 54,5 kw 4cil. 4YP 4YP4 Bastidores: 4YP henceforth08613-- 2000
Yamaha XVZ 1300 AH Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NK 4NK1 Bastidores: 4NK henceforth00101-- 1996-1999
Yamaha XVZ 1300 AH Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NK 4NK3 Bastidores: 4NK henceforth12101-- 1996-1999
Yamaha XVZ 1300 AHC Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NK 4NK2 Bastidores: 4NK henceforth10101-- 1996-1999
Yamaha XVZ 1300 ATH Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NL 4NL1 Bastidores: 4NL henceforth00101-- 1996-1999
Yamaha XVZ 1300 ATH Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NL 4NL3 Bastidores: 4NL henceforth07101-- 1996-1999
Yamaha XVZ 1300 ATHC Royal Star Tour Classic 74 CV, 55 kw 4cil. 4NL 4NL2 Bastidores: 4NL henceforth06101-- 1996-1999
Yamaha XVZ 1300 TF Royal Star Venture 95 CV, 70 kw 4cil. VP091 5JC1 Bastidores: VP091 henceforth00301-- 1999
Yamaha XVZ 1300 TF Royal Star Venture 95 CV, 70 kw 4cil. VP091 5JC2 Bastidores: VP091 henceforth01465-- 2000
Yamaha XVZ 1300 TF Royal Star Venture 95 CV, 70 kw 4cil. VP091 5JC3 Bastidores: VP091 henceforth01622-- 2001
