TRW motorcycle brake disc 788.06.44

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

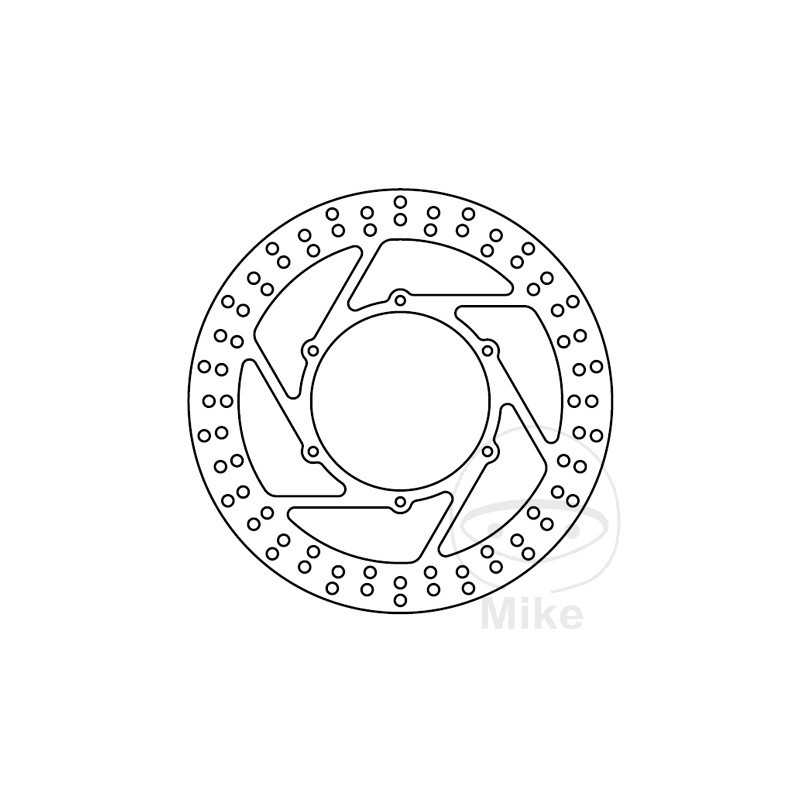

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 126.5MM
CIRCLE SIZE: 143 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 640 E LC4 54/34 CV, 40 /25kw 1cil. - Bastidores: --- 2003-2007
KTM Adventure 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
KTM EGS 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1996-1997
KTM EGS 620 LC4 31 CV, 23 kw 1cil. - Bastidores: --- 1996
KTM EGS 620 LC4 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4 50 CV, 37 kw 1cil. - Bastidores: --- 1996
KTM EGS 620 LC4 LSE 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4-E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4-E Adventure 50 CV,37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS-E 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1997
KTM EXC 400 LC4 Competition 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1996
KTM EXC 400 LC4 Competition Sixdays Winner 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1997
KTM EXC 620 LC4 Competition 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM EXC 620 LC4 Competition 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1998
KTM EXC 620 LC4 Competition 34/50 CV, 25/37 kw 1cil. - Bastidores: --- 1999
KTM EXC 620 LC4 Competition Sixdays Winner 1cil. - Bastidores: --- 1996-1998
KTM EXC 620 LC4 Rally 1cil. - Bastidores: --- 1997
KTM EXC 660 LC4 Rally 1cil. - Bastidores: --- 1996-1997
KTM EXC 660 LC4 Rally 1cil. - Bastidores: --- 1999-1999
KTM LC4 400 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1998
KTM LC4-E 400 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1998
KTM LC4-E 400 34/42 CV, 25/31 kw 1cil. - Bastidores: --- 1999
KTM LC4-E 400 LSE 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1997-1998
KTM LC4-E 640 49 CV, 36 kw 1cil. - Bastidores: --- 2000-2002
KTM LC4-E 640 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2006
