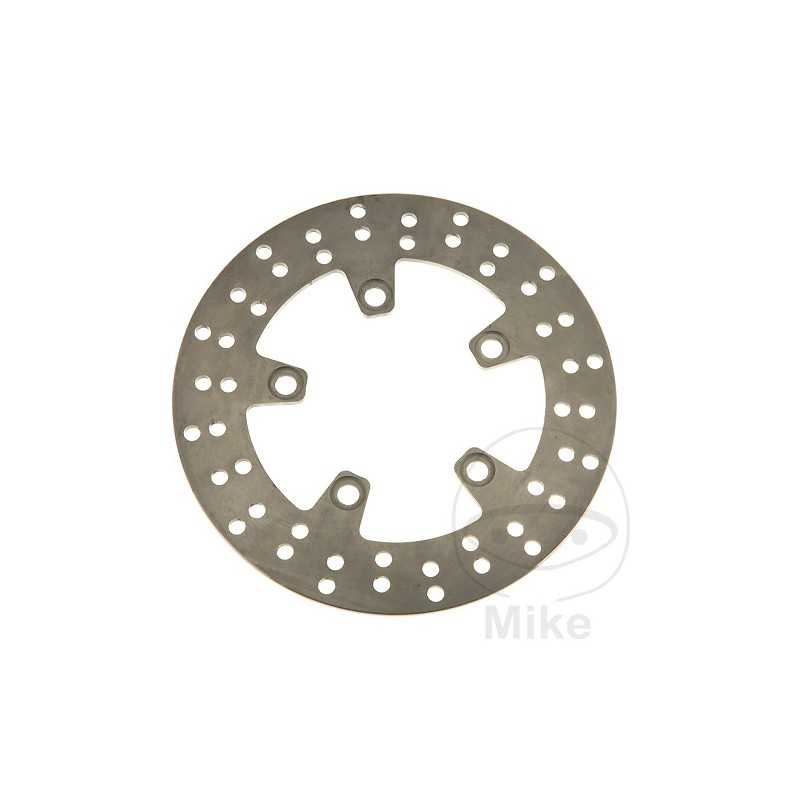

TRW motorcycle brake disc 788.05.86

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 89MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 160 CV, 118 kw 4cil. WVBL1112 K1 Bastidores: BL1112 henceforth0100001-BL1112 henceforth0108730 2001
Suzuki GSX-R 1000 160 CV, 118 kw 4cil. WVBL1112 K2 Bastidores: BL1112 henceforth0108731-- 2002
Suzuki GSX-R 1000 164 CV, 121 kw 4cil. WVBZ1111 K3 Bastidores: BZ1111 henceforth0100001-BZ1111 henceforth0107537 2003
Suzuki GSX-R 1000 164 CV, 121 kw 4cil. WVBZ1111 K4 Bastidores: BZ1111 henceforth0107538-- 2004
Suzuki GSX-R 1000 178 CV, 131 kw 4cil. WVB61111 K5 Bastidores: B61111 henceforth0100001-B61111 henceforth0107743 2005
Suzuki GSX-R 1000 178 CV, 131 kw 4cil. WVB61111 K6 Bastidores: B61111 henceforth0107744-- 2006
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K7 Bastidores: CL1111 henceforth0100001-CL1111 henceforth0113727 2007
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K8 Bastidores: CL1111 henceforth0113728-- 2008
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 K9 Bastidores: CY1111 henceforth0100001-CY1111 henceforth0105530 2009
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L0 Bastidores: CY1111 henceforth0105531-CY1111 henceforth0107726 2010
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L1 Bastidores: CY1111 henceforth0107727-CY1111 henceforth0108997 2011
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L2 Bastidores: CY1111 henceforth0108998-CY1111 henceforth0109778 2012
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L3 Bastidores: CY1111 henceforth0109781-CY1111 henceforth0110633 2013
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L4 Bastidores: CY1111 henceforth0110634-CY1111 henceforth0111554 2014
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L5 Bastidores: CY1111 henceforth0111555-- 2015
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L6 Bastidores: CY1111-G0100001-- 2016
Suzuki GSX-R 1000 A 30th Anniversary ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: --- 2016
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L5 Bastidores: CY1121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: CY1121-G0100001-- 2016
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L5 Bastidores: CY2121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L6 Bastidores: CY2121-G0100001-- 2016
Suzuki GSX-R 1000 U1 98 CV, 72 kw 4cil. WVBL2112 K1 Bastidores: BL2112 henceforth0100001-BL2112 henceforth0100401 2001
Suzuki GSX-R 1000 U1 98 CV, 72 kw 4cil. WVBL2112 K2 Bastidores: BL211200-100402-- 2002
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVB62111 K5 Bastidores: B62111 henceforth0100001-B62111 henceforth0101357 2005
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVB62111 K6 Bastidores: B62111 henceforth0101358-- 2006
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVBL3112 K1 Bastidores: BL3112 henceforth0100001-BL3112 henceforth0102435 2001
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVBL3112 K2 Bastidores: BL3112 henceforth0102436-- 2002
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K7 Bastidores: CL2111 henceforth0100001-CL2111 henceforth0102041 2007
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K8 Bastidores: CL2111 henceforth0102042-- 2008
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 K9 Bastidores: CY2111 henceforth0100001-CY2111 henceforth0101291 2009
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L0 Bastidores: CY2111 henceforth0101292-CY2111 henceforth0102360 2010
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L1 Bastidores: CY2111 henceforth0102361-CY2111 henceforth0102758 2011
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L2 Bastidores: CY2111 henceforth0102759-CY2111 henceforth0103265 2012
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L3 Bastidores: CY2111 henceforth0103266-CY2111 henceforth0103744 2013
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L4 Bastidores: CY2111 henceforth0103745-CY2111 henceforth0103963 2014
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L5 Bastidores: CY2111 henceforth0103964-- 2015
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L6 Bastidores: CY2111-G0100001-- 2016
Suzuki GSX-R 1000 Z 185 CV, 136 kw 4cil. WVCY1111 L3 Bastidores: CY1111 henceforth0110977-- 2013
Suzuki GSX-R 1000 Z 185 CV, 136 kw 4cil. WVCY1111 L4 Bastidores: CY1111 henceforth0110661-CY1111 henceforth0111554 2014
Suzuki GSX-R 1000 Z 25th Anniversary 185 CV, 136 kw 4cil. WVCY1111 L0 Bastidores: CY1111 henceforth0105531-CY1111 henceforth0107726 2010
Suzuki GSX-R 1000 ZUF 106 CV, 78 kw 4cil. WVCY2111 L3 Bastidores: CY2111 henceforth0103267-- 2013
Suzuki GSX-R 1000 ZUF 106 CV, 78 kw 4cil. WVCY2111 L4 Bastidores: CY2111 henceforth0103745-CY2111 henceforth0103963 2014
Suzuki GSX-R 1000 ZUF 25th Anniversary 106 CV, 78 kw 4cil. WVCY2111 L0 Bastidores: CY2111 henceforth0101292-CY2111 henceforth0102360 2010
Suzuki GSX-R 600 106/98 CV, 78/72 kw 4cil. AD3112 V Bastidores: AD3112 henceforth0100001-AD3112 henceforth0102576 1997
Suzuki GSX-R 600 106/98 CV, 78/72 kw 4cil. AD3112 W Bastidores: AD3112 henceforth0102577-AD3112 henceforth0104329 1998
Suzuki GSX-R 600 110/98 CV, 81/72 kw 4cil. AD3112 X Bastidores: AD3112 henceforth0104330-AD3112 henceforth0105443 1999
Suzuki GSX-R 600 110/98 CV, 81/72 kw 4cil. AD3112 Y Bastidores: AD3112 henceforth0105444-- 2000
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K1 Bastidores: BG1112 henceforth0100001-BG1112 henceforth0110600 2001
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K2 Bastidores: BG1112 henceforth0110601-BG1112 henceforth0114069 2002
Suzuki GSX-R 600 116 CV, 85 kw 4cil. WVBG1112 K3 Bastidores: BG1112 henceforth0114070-- 2003
Suzuki GSX-R 600 120 CV, 88 kw 4cil. WVB21111 K4 Bastidores: B21111 henceforth0100001-B21111 henceforth0107930 2004
Suzuki GSX-R 600 120 CV, 88 kw 4cil. WVB21111 K5 Bastidores: B21111 henceforth0107931-- 2005
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L1 Bastidores: C31111 henceforth0100001-C31111 henceforth0103028 2011
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L2 Bastidores: C31111 henceforth0103029-C31111 henceforth0103223 2012
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L3 Bastidores: C31111 henceforth0103224-C31111 henceforth0103520 2013
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L4 Bastidores: C31111 henceforth0103521-C31111 henceforth0103951 2014
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L5 Bastidores: C31111 henceforth0103952-C31111 henceforth0109999 2015
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCE1111 K6 Bastidores: CE1111 henceforth0100001-CE1111 henceforth0111177 2006
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCE1111 K7 Bastidores: CE1111 henceforth0111178-- 2007
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 K8 Bastidores: CV1111 henceforth0100001-CV1111 henceforth0107998 2008
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 K9 Bastidores: CV1111 henceforth0107999-CV1111 henceforth0110823 2009
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 L0 Bastidores: CV1111 henceforth0110824-- 2010
Suzuki GSX-R 600 126 CV, 92,5 kw 4cil. C31111 L6 Bastidores: C31111-G0100001-C31111-G0109999 2016
Suzuki GSX-R 600 126 CV, 92,5 kw 4cil. C31111 L7 Bastidores: C31111-H0100001-C31111-H0109999 2017
Suzuki GSX-R 600 30th Anniversary 126 CV, 92,5 kw 4cil. C31111 L6 Bastidores: C31111-G0100001-C31111-G0109999 2016
Suzuki GSX-R 600 U1 98 CV, 72 kw 4cil. WVBG2112 K1 Bastidores: BG2112 henceforth0100001-BG2112 henceforth0102034 2001
Suzuki GSX-R 600 U1 98 CV, 72 kw 4cil. WVBG2112 K2 Bastidores: BG2112 henceforth0102035-- 2002
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVB22111 K4 Bastidores: B22111 henceforth0100001-B22111 henceforth0101023 2004
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVB22111 K5 Bastidores: B22111 henceforth0101424-- 2005
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K1 Bastidores: BG3112 henceforth0100001-BG3112 henceforth0100012 2001
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K2 Bastidores: BG3112 henceforth0100013-BG3112 henceforth0102345 2002
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVBG3112 K3 Bastidores: BG3112 henceforth0102346-- 2003
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCE2111 K6 Bastidores: CE2111 henceforth0100001-CE2111 henceforth0100283 2006
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCE2111 K7 Bastidores: CE2111 henceforth0100284-- 2007
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCV2111 K8 Bastidores: CV2111 henceforth0100001-CV2111 henceforth0101187 2008
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVB23111 K4 Bastidores: B23111 henceforth0100001-B23111 henceforth0100041 2004
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVB23111 K5 Bastidores: B23111 henceforth0100042-- 2005
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCE3111 K6 Bastidores: CE3111 henceforth0100001-CE3111 henceforth0100283 2006
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCE3111 K7 Bastidores: CE3111 henceforth0100284-- 2007
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCV3111 K8 Bastidores: CV3111 henceforth0100001-CV3111 henceforth0100745 2008
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L1 Bastidores: C33111 henceforth0100001-C33111 henceforth0100100 2011
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L2 Bastidores: C33111 henceforth0100101-- 2012
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L3 Bastidores: C33111 henceforth0100101-- 2013
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. WVCV3111 K9 Bastidores: CV3111 henceforth0100746-CV3111 henceforth0100945 2009
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. WVCV3111 L0 Bastidores: CV3111 henceforth0100946-- 2010
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L1 Bastidores: C32111 henceforth0100001-C32111 henceforth0100455 2011
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L2 Bastidores: C32111 henceforth0100456-C32111 henceforth0100535 2012
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L3 Bastidores: C32111 henceforth0100536-C32111 henceforth0100565 2013
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L4 Bastidores: C32111 henceforth0100566-C32111 henceforth0100653 2014
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L5 Bastidores: C32111 henceforth0100654-C32111 henceforth0109999 2015
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L6 Bastidores: C32111-G0100001-C32111-G0109999 2016
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. WVCV2111 K9 Bastidores: CV2111 henceforth0101188-CV2111 henceforth0102088 2009
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. WVCV2111 L0 Bastidores: CV2111 henceforth0102089-- 2010
Suzuki GSX-R 600 UF Anniversary 106 CV 78 kw 4cil. C32111 L6 Bastidores: C32111-G0100001-C32111-G0109999 2016
Suzuki GSX-R 600 X Anniversary 120 CV, 88 kw 4cil. WVB21114 K5 Bastidores: B21114 henceforth0100001-- 2005
Suzuki GSX-R 600 XU2 Anniversary 106 CV 78 kw 4cil. WVB22114 K5 Bastidores: B22114 henceforth0100001-- 2005
Suzuki GSX-R 600 XU3 Anniversary 34 CV, 25 kw 4cil. WVB23114 K5 Bastidores: B23114 henceforth0100001-- 2005
Suzuki GSX-R 750 128 CV, 94 kw 4cil. GR7DB T Bastidores: GR7DB henceforth00500001-GR7DB henceforth00503788 1996
Suzuki GSX-R 750 128 CV, 94 kw 4cil. GR7DB V Bastidores: GR7DB henceforth00503789-GR7DB henceforth00505080 1997
Suzuki GSX-R 750 135 CV, 99 kw 4cil. GR7DB W Bastidores: GR7DB henceforth00505081-GR7DB henceforth00507520 1998
Suzuki GSX-R 750 135 CV, 99 kw 4cil. GR7DB X Bastidores: GR7DB henceforth00507521-- 1999
Suzuki GSX-R 750 141 CV, 104 kw 4cil. WVBD1112 K1 Bastidores: BD1112 henceforth0104709-BD1112 henceforth0109342 2001
Suzuki GSX-R 750 141 CV, 104 kw 4cil. WVBD1112 K2 Bastidores: BD1112 henceforth0109343-BD1112 henceforth0112621 2002
Suzuki GSX-R 750 141 CV, 104 kw 4cil. WVBD1112 K3 Bastidores: BD1112 henceforth0112622-- 2003
Suzuki GSX-R 750 141 CV, 104 kw 4cil. WVBD1112 Y Bastidores: BD1112 henceforth0100001-BD1112 henceforth0104708 2000
Suzuki GSX-R 750 148 CV, 109 kw 4cil. WVB31111 K4 Bastidores: B31111 henceforth0100001-B31111 henceforth0104084 2004
Suzuki GSX-R 750 148 CV, 109 kw 4cil. WVB31111 K5 Bastidores: B31111 henceforth0104085-- 2005
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L1 Bastidores: C41111 henceforth0100001-C41111 henceforth0103112 2011
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L2 Bastidores: C41111 henceforth0103113-C41111 henceforth0103291 2012
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L3 Bastidores: C41111 henceforth0103292-C41111 henceforth0103629 2013
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L4 Bastidores: C41111 henceforth0103630-C41111 henceforth0104138 2014
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L5 Bastidores: --- 2015
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L6 Bastidores: C41111-G0100001-C41111-G0109999 2016
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L7 Bastidores: C41111-H0100001-C41111-H0109999 2017-2018
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCF1111 K6 Bastidores: CF1111 henceforth0100001-CF1111 henceforth0106999 2006
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCF1111 K7 Bastidores: CF1111 henceforth0107000-- 2007
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 K8 Bastidores: CW1111 henceforth0100001-CW1111 henceforth0108226 2008
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 K9 Bastidores: CW1111 henceforth0108248-CW1111 henceforth0110040 2009
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 L0 Bastidores: CW1111 henceforth0110041-- 2010
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB T Bastidores: GR7DB henceforth00500001-GR7DB henceforth00503788 1996
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB V Bastidores: GR7DB henceforth00503789-GR7DB henceforth00505080 1997
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB W Bastidores: GR7DB henceforth00505081-GR7DB henceforth00507520 1998
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB X Bastidores: GR7DB henceforth00507521-- 1999
Suzuki GSX-R 750 30th Anniversary 150 CV, 110 kw 4cil. C41111 L6 Bastidores: C41111-G0000001-C41111-G0109999 2016
Suzuki GSX-R 750 U1 98 CV, 72 kw 4cil. - K1 Bastidores: --- 2001
Suzuki GSX-R 750 U1 98 CV, 72 kw 4cil. - K3 Bastidores: --- 2003
Suzuki GSX-R 750 U1 98 CV, 72 kw 4cil. BD2112 K2 Bastidores: BD2112 henceforth0100552-- 2002
Suzuki GSX-R 750 U1 98 CV, 72 kw 4cil. BD2112 Y Bastidores: BD2112 henceforth0100001-BD2112 henceforth0100551 2000
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVB32111 K4 Bastidores: B32111 henceforth0100001-B32111 henceforth0101238 2004
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVB32111 K5 Bastidores: B32111 henceforth0101239-- 2005
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCF2111 K6 Bastidores: CF2111 henceforth0100001-CF2111 henceforth0100938 2006
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCF2111 K7 Bastidores: CF2111 henceforth0100939-- 2007
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCW2111 K8 Bastidores: CW2111 henceforth0100001-CW2111 henceforth0101397 2008
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L1 Bastidores: C42111 henceforth0100001-C42111 henceforth0100565 2011
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L2 Bastidores: C42111 henceforth0100566-C42111 henceforth0100717 2012
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L3 Bastidores: C42111 henceforth0100718-C42111 henceforth0100779 2013
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L4 Bastidores: C42111 henceforth0100780-C42111 henceforth0100837 2014
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L5 Bastidores: --- 2015-2016
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. WVCW2111 K9 Bastidores: CW2111 henceforth0101398-CW2111 henceforth0102299 2009
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. WVCW2111 L0 Bastidores: CW2111 henceforth0102300-- 2010
Suzuki GSX-R 750 X 148 CV, 109 kw 4cil. WVB31114 K5 Bastidores: B31114 henceforth0100001-- 2005
Suzuki GSX-R 750 XU2 106 CV, 78 kw 4cil. WVB31216 K5 Bastidores: B31216 henceforth0100001-- 2005
Suzuki SV 1000 120 CV, 88 kw 2cil. WVBX1111 K3 Bastidores: BX1111 henceforth0100001-BX1111 henceforth0101467 2003
Suzuki SV 1000 120 CV, 88 kw 2cil. WVBX1111 K4 Bastidores: BX1111 henceforth0101468-- 2004
Suzuki SV 1000 124 CV, 91 kw 2cil. WVBX4311 K5 Bastidores: BX4311 henceforth0100001-BX4311 henceforth0100231 2005
Suzuki SV 1000 S 120 CV, 88 kw 2cil. WVBX1321 K3 Bastidores: BX1321 henceforth0100001-BX1321 henceforth0106109 2003
Suzuki SV 1000 S 120 CV, 88 kw 2cil. WVBX1321 K4 Bastidores: BX1321 henceforth0106110-- 2004
Suzuki SV 1000 S 124 CV, 91 kw 2cil. WVBX4121 K5 Bastidores: BX4121 henceforth0100001-BX4121 henceforth0100324 2005
Suzuki SV 1000 S2 98 CV, 72 kw 2cil. WVBX3221 K3 Bastidores: BX3221 henceforth0100001-BX3221 henceforth0102662 2003
Suzuki SV 1000 S2 98 CV, 72 kw 2cil. WVBX3221 K4 Bastidores: BX3221 henceforth0102663-- 2004
Suzuki SV 1000 S2 98 CV, 72 kw 2cil. WVBX6121 K5 Bastidores: BX6121 henceforth0100001-BX6121 henceforth0100095 2005
Suzuki SV 1000 SZ 124 CV, 91 kw 2cil. WVBX4121 K5 Bastidores: BX4121 henceforth0100140-- 2005
Suzuki SV 1000 SZ2 98 CV, 72 kw 2cil. WVBX6121 K5 Bastidores: BX6121 henceforth0100001-- 2005
Suzuki SV 1000 U2 98 CV, 72 kw 2cil. WVBX3111 K3 Bastidores: BX3111 henceforth0100001-BX3111 henceforth0101743 2003
Suzuki SV 1000 U2 98 CV, 72 kw 2cil. WVBX3111 K4 Bastidores: BX3111 henceforth0101744-- 2004
Suzuki SV 1000 U2 98 CV, 72 kw 2cil. WVBX5211 K5 Bastidores: BX5211 henceforth0100001-- 2005
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K3 Bastidores: BY1111 henceforth0100001-BY1111 henceforth0106361 2003
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K4 Bastidores: BY1111 henceforth0106362-BY1111 henceforth0108929 2004
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K5 Bastidores: BY1111 henceforth0108930-BY1111 henceforth0110433 2005
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K6 Bastidores: BY1111 henceforth0110434-BY1111 henceforth0111673 2006
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K7 Bastidores: BY1111 henceforth0111674-BY1111 henceforth0112445 2007
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K8 Bastidores: BY1111 henceforth0112446-BY1111 henceforth0113287 2008
Suzuki SV 650 72 CV, 53 kw 2cil. WVBY1111 K9 Bastidores: BY1111 henceforth0113288-- 2009
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K3 Bastidores: BY1321 henceforth0100001-BY1321 henceforth0106875 2003
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K4 Bastidores: BY1321 henceforth0106876-BY1321 henceforth0110275 2004
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K5 Bastidores: BY1321 henceforth0110276-BY1321 henceforth0112390 2005
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K6 Bastidores: BY1321 henceforth0112391-BY1321 henceforth0114477 2006
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K7 Bastidores: BY1321 henceforth0114478-BY1321 henceforth0114922 2007
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K8 Bastidores: BY1321 henceforth0114923-BY1321 henceforth0115496 2008
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 K9 Bastidores: BY1321 henceforth0115497-BY1321 henceforth0115790 2009
Suzuki SV 650 S 72 CV, 53 kw 2cil. WVBY1321 L0 Bastidores: BY1321 henceforth0115791-- 2010-2016
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K3 Bastidores: BY2221 henceforth0100001-BY2221 henceforth0102898 2003
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K4 Bastidores: BY2221 henceforth0102899-BY2221 henceforth0104300 2004
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K5 Bastidores: BY2221 henceforth0104301-BY2221 henceforth0106186 2005
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K6 Bastidores: BY2221 henceforth0106187-BY2221 henceforth0107332 2006
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K7 Bastidores: BY2221 henceforth0107333-BY2221 henceforth0108240 2007
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K8 Bastidores: BY2221 henceforth0108241-BY2221 henceforth0109065 2008
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 K9 Bastidores: BY2221 henceforth0109066-BY2221 henceforth0109494 2009
Suzuki SV 650 SU 34 CV, 25 kw 2cil. WVBY2221 L0 Bastidores: BY2221 henceforth0109495-- 2010
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K3 Bastidores: BY2111 henceforth0100001-BY2111 henceforth0100639 2003
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K4 Bastidores: BY2111 henceforth0100640-BY2111 henceforth0101997 2004
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K5 Bastidores: BY2111 henceforth0101996-BY2111 henceforth0103959 2005
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K6 Bastidores: BY2111 henceforth0103960-BY2111 henceforth0105575 2006
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K7 Bastidores: BY2111 henceforth0105576-BY2111 henceforth0106887 2007
Suzuki SV 650 U 34 CV, 25 kw 2cil. WVBY2111 K8 Bastidor
