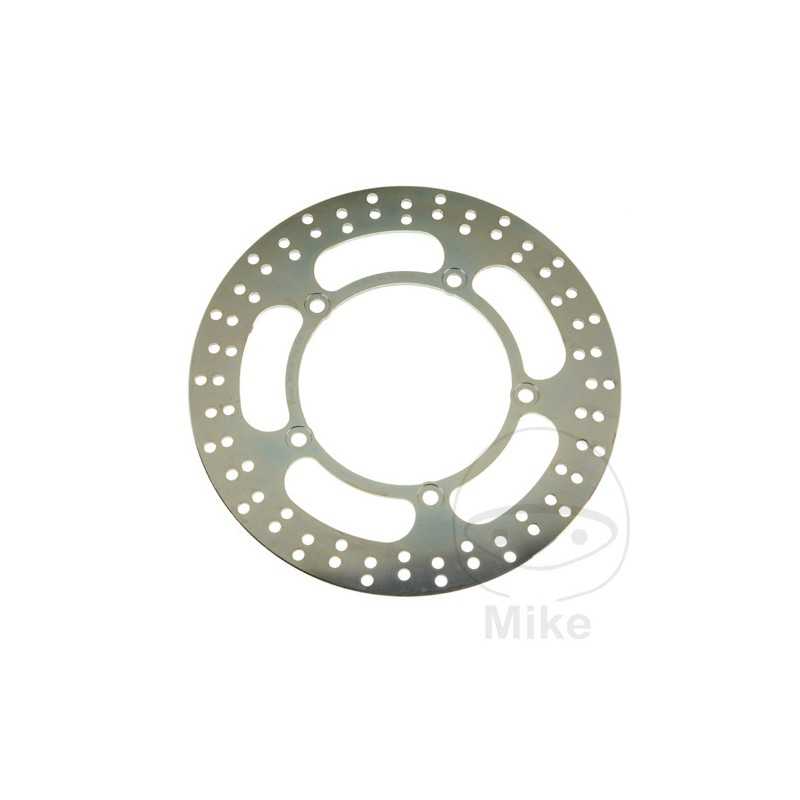

TRW motorcycle brake disc 788.04.87

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 144MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VT 600 C Shadow 27 CV, 20 kw 2cil. PC21 K Bastidores: PC21-3100001-PC21-3100660 1989
Honda VT 600 C Shadow 27 CV, 20 kw 2cil. PC21 L Bastidores: PC21-3200001-PC21-3200600 1990-1991
Honda VT 600 C Shadow 27 CV, 20 kw 2cil. PC21 N Bastidores: PC21-3400001-PC21-3400875 1992
Honda VT 600 C Shadow 27 CV, 20 kw 2cil. PC21 P Bastidores: PC21-3500001-PC21-3500750 1993
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21 R Bastidores: PC21-6000001-PC21-6001230 1994
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21 S Bastidores: PC21-6100001-- 1995
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D T Bastidores: JH2 PC21D-TM000001-- 1996
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D V Bastidores: JH2 PC21D-VM720001-- 1997
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D W Bastidores: JH2 PC21D-WM730001-- 1998
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D X Bastidores: JH2 PC21D-XK760001-- 1999-2000
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D X Bastidores: JH2 PC21D-XM740001-- 1999-2000
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D X Bastidores: JH2 PC21D-XM770001-- 1999-2000
Honda VT 600 C Shadow 34 CV, 25 kw 2cil. PC21D X Bastidores: JH2 PC21D-XM780001-- 1999-2000
Honda VT 600 C Shadow 38 CV, 28 kw 2cil. PC21B W Bastidores: JH2 PC21B-WM730001-- 1998
Honda VT 600 C Shadow 38 CV, 28 kw 2cil. PC21B X Bastidores: JH2 PC21B-XK760001-- 1999-2000
Honda VT 600 C Shadow 38 CV, 28 kw 2cil. PC21B X Bastidores: JH2 PC21B-XK780001-- 1999-2000
Honda VT 600 C Shadow 38 CV, 28 kw 2cil. PC21B X Bastidores: JH2 PC21B-XM740001-- 1999-2000
Honda VT 600 C Shadow 38 CV, 28 kw 2cil. PC21B X Bastidores: JH2 PC21B-XM770001-- 1999-2000
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21 L Bastidores: PC21-2200199-PC21-2204704 1990-1991
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21 N Bastidores: PC21-2400002-PC21-2406684 1992
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21 P Bastidores: PC21-2500015-PC21-2508091 1993
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21 R Bastidores: PC21-2600076-PC21-2607840 1994
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21 S Bastidores: PC21-2700001-- 1995
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21B T Bastidores: JH2 PC21B-TM000001-- 1996
Honda VT 600 C Shadow 39 CV, 29 kw 2cil. PC21B V Bastidores: JH2 PC21B-VM720001-- 1997
Honda VT 600 C Shadow 41 CV, 30 kw 2cil. PC21 K Bastidores: PC21-2100001-PC21-2104083 1989
Honda VT 600 C Shadow piñón engranaje fino 27 CV, 20 kw 2cil. PC21 J Bastidores: PC21-3000001-PC21-3000350 1988
Honda VT 600 C Shadow piñón engranaje fino 41 CV, 30 kw 2cil. PC21 J Bastidores: PC21-2000001-PC21-2002167 1988
Honda VT 600 C Shadow piñón engranaje grueso 27 CV, 20 kw 2cil. PC21 J Bastidores: PC21-3000001-PC21-3000350 1988
Honda VT 600 C Shadow piñón engranaje grueso 41 CV, 30 kw 2cil. PC21 J Bastidores: PC21-2000001-PC21-2002167 1988
