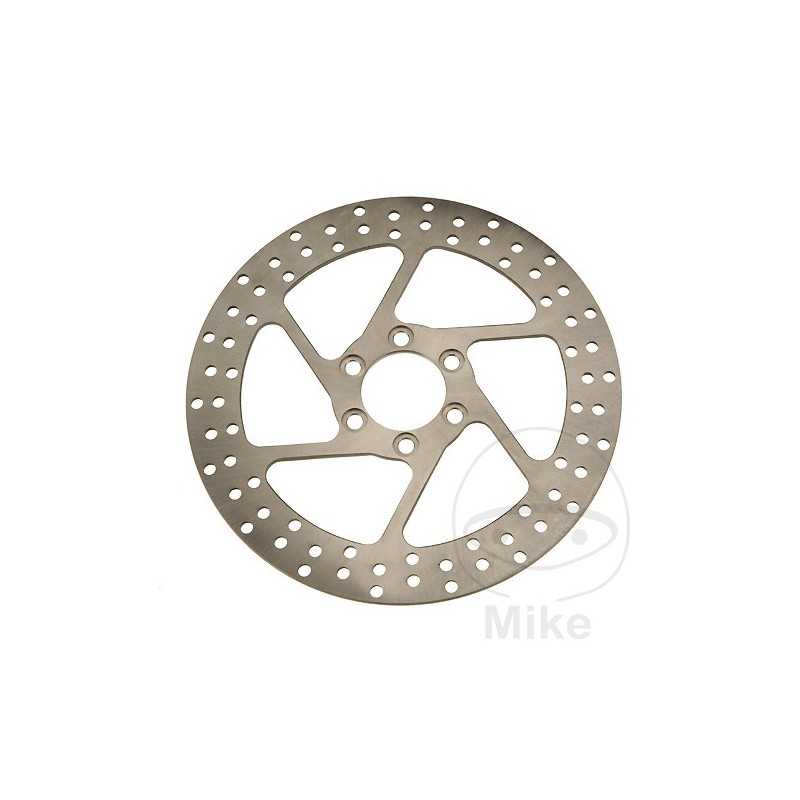

TRW motorcycle brake disc 788.04.04

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design

+
OUTER DIAMETER: 275MM
INSIDE DIAMETER: 57MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K1 Bastidores: VX51L henceforth00504901-VX51L henceforth00505797 2001
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K2 Bastidores: VX51L henceforth00505798-VX51L henceforth00506817 2002
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K3 Bastidores: VX51L henceforth00506818-- 2003
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L T Bastidores: VX51L-125294-VX51L-129696 1996
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L V Bastidores: VX51L-129697-VX51L-132929 1997
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L W Bastidores: VX51L-132930-VX51L-135285 1998
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L X Bastidores: VX51L-135286-- 1999
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L Y Bastidores: VX51L henceforth00503273-VX51L henceforth00504900 2000
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L R Bastidores: VX51L-115246-VX51L-121561 1994
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L S Bastidores: VX51L-121562-VX51L-125293 1995
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD N Bastidores: VX51LD-108040-VX51LD-110757 1992
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD P Bastidores: VX51LD-110758-- 1993
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD K Bastidores: VX51LD-104562-VX51LD-105129 1989
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD L Bastidores: VX51LD-105130-VX51LD-105901 1990
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD M Bastidores: VX51LD-105902-VX51LD-108039 1991
