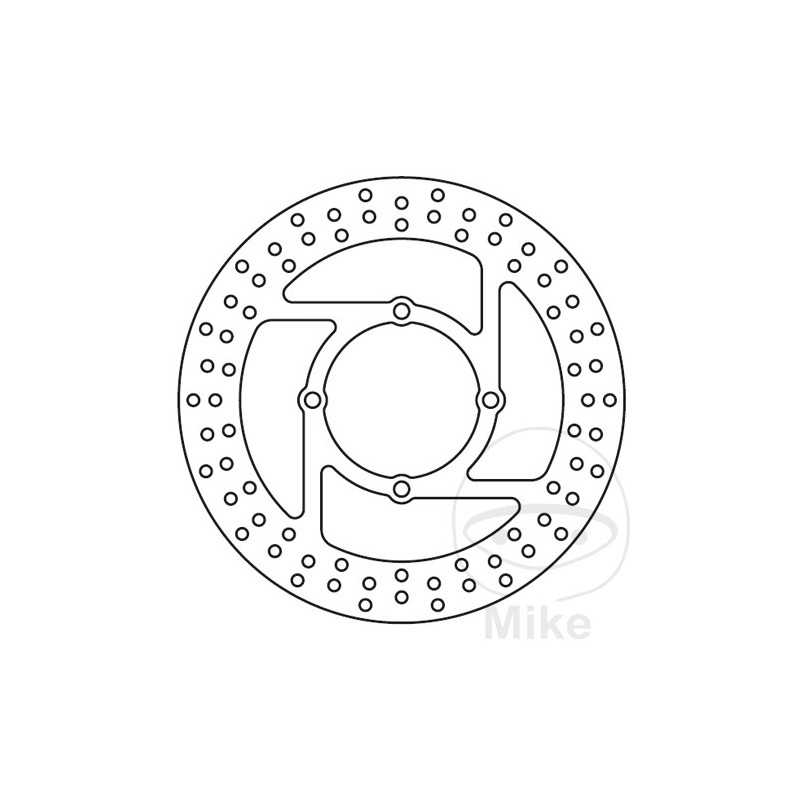

TRW motorcycle brake disc 788.03.13

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 84MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K1 Bastidores: BK1111-100001-BK1111-101302 2001
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K2 Bastidores: BK1111-101303-- 2002
Suzuki GS 500 45 CV, 33 kw 2cil. WVBK1111 K3 Bastidores: BK1111-100001-BK1111-101188 2003
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K4 Bastidores: BK2111-101189-BK2111-102834 2004
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K5 Bastidores: BK2111-102835-BK2111-105153 2005
Suzuki GS 500 48 CV, 35 kw 2cil. BK2111 K6 Bastidores: BK2111-105154-BK2111-107794 2006
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51A Y Bastidores: GM51A-504497-- 2000
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139795 1996
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B V Bastidores: GM51B-139796-GM51B-142295 1997
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B W Bastidores: GM51B-142296-GM51B-145392 1998
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B X Bastidores: GM51B-145393-- 1999
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B L Bastidores: GM51B-102076-GM51B-105600 1990
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B M Bastidores: GM51B-105601-GM51B-110302 1991
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B L Bastidores: GM51B-102076-GM51B-105600 1990
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B M Bastidores: GM51B-105601-GM51B-110302 1991
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139345 1996
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B V Bastidores: GM51B-139346-GM51B-142370 1997
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B W Bastidores: GM51B-142371-GM51B-145202 1998
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B X Bastidores: GM51B-145203-- 1999
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B Y Bastidores: GM51B-501303-- 2000
Suzuki GS 500 EUZ 27 CV, 20 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 EZ 46 CV, 34 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K4 Bastidores: BK2321-100001-BK2321-102736 2004
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K5 Bastidores: BK2321-102737-BK2321-104625 2005
Suzuki GS 500 F 48 CV, 35 kw 2cil. BK2321 K6 Bastidores: BK2321-104626-BK2321-105887 2006
Suzuki GS 500 FH 48 CV, 35 kw 2cil. BK2321 K7 Bastidores: BK2321-105888-- 2007-2008
Suzuki GS 500 FM 34 CV, 25 kw 2cil. BK4221 K7 Bastidores: BK4221-102762-- 2007-2008
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K4 Bastidores: BK4221-100001-BK4221-101561 2004
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K5 Bastidores: BK4221-101562-BK4221-102101 2005
Suzuki GS 500 FU 34 CV, 25 kw 2cil. BK4221 K6 Bastidores: BK4221-102102-BK4221-102761 2006
Suzuki GS 500 H 48 CV, 35 kw 2cil. BK2111 K7 Bastidores: BK2111-107795-- 2007-2008
Suzuki GS 500 HU 34 CV, 25 kw 2cil. BK4111 K7 Bastidores: BK4111-101441-- 2007-2008
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K4 Bastidores: BK4111-100001-BK4111-100720 2004
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K5 Bastidores: BK4111-100721-BK4111-101080 2005
Suzuki GS 500 U 34 CV, 25 kw 2cil. BK4111 K6 Bastidores: BK4111-101081-BK4111-101440 2006
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K1 Bastidores: BK3111-100001-BK3111-101651 2001
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K2 Bastidores: BK3111-101652-- 2002
Suzuki GS 500 U 34 CV, 25 kw 2cil. WVBK3111 K3 Bastidores: BK3111-100001-- 2003
Suzuki GSF 400 Bandit 50 CV, 37 kw 4cil. GK75A P Bastidores: GK75A-124977-- 1993-1995
Suzuki GSF 400 Bandit 50 CV, 37 kw 4cil. GK75B P Bastidores: GK75B-102102-- 1993-1995
Suzuki GSF 400 Bandit 58,5 CV, 43 kw 4cil. GK75A M Bastidores: GK75A-105792-GK75A-114212 1991
Suzuki GSF 400 Bandit 58,5 CV, 43 kw 4cil. GK75A N Bastidores: GK75A-114213-GK75A-124976 1992
Suzuki GSF 400 Bandit 58,5 CV, 43 kw 4cil. GK75B M Bastidores: GK75B-100001-GK75B-101176 1991
Suzuki GSF 400 Bandit 58,5 CV, 43 kw 4cil. GK75B N Bastidores: GK75B-101177-GK75B-102101 1992
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B J Bastidores: GN72B-100001-GN72B-101933 1988
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B K Bastidores: GN72B-101934-GN72B-103195 1989
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B L Bastidores: GN72B-103196-GN72B-105125 1990
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B M Bastidores: GN72B-105126-GN72B-107851 1991
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B N Bastidores: GN72B-107852-GN72B-110172 1992
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B P Bastidores: GN72B-110173-GN72B-113173 1993
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B R Bastidores: GN72B-113174-GN72B-116152 1994
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B S Bastidores: GN72B-116153-GN72B-119118 1995
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B T Bastidores: GN72B-119119-GN72B-121124 1996
Suzuki GSX 600 F 86 CV, 63 kw 4cil. GN72B V Bastidores: GN72B-121125-- 1997
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B J Bastidores: GN72B-100001-GN72B-101933 1988
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B K Bastidores: GN72B-101934-GN72B-103195 1989
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B L Bastidores: GN72B-103196-GN72B-105125 1990
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B M Bastidores: GN72B-105126-GN72B-107851 1991
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B N Bastidores: GN72B-107852-GN72B-110172 1992
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B P Bastidores: GN72B-110173-GN72B-113173 1993
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B R Bastidores: GN72B-113174-GN72B-116152 1994
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B S Bastidores: GN72B-116153-GN72B-119118 1995
Suzuki GSX 600 FU 50 CV, 37 kw 4cil. GN72B T Bastidores: GN72B-119119-- 1996-1997
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B J Bastidores: GN72B-100001-GN72B-101933 1988
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B K Bastidores: GN72B-101934-GN72B-103195 1989
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B L Bastidores: GN72B-103196-GN72B-105125 1990
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B M Bastidores: GN72B-105126-GN72B-107851 1991
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B N Bastidores: GN72B-107852-GN72B-110172 1992
Suzuki GSX 600 FU2 27 CV, 20 kw 4cil. GN72B P Bastidores: GN72B-110173-GN72B-113173 1993
Suzuki GSX 600 FU2 34 CV, 25 kw 4cil. GN72B R Bastidores: GN72B-113174-GN72B-116152 1994
Suzuki GSX 600 FU2 34 CV, 25 kw 4cil. GN72B S Bastidores: GN72B-116153-GN72B-119118 1995
Suzuki GSX 600 FU2 34 CV, 25 kw 4cil. GN72B T Bastidores: GN72B-119119-GN72B-121124 1996
Suzuki GSX 600 FU2 34 CV, 25 kw 4cil. GN72B V Bastidores: GN72B-121125-- 1997
Suzuki GSX 750 F 100 CV, 74 kw 4cil. GR78A K Bastidores: GR78A-100001-GR78A-105764 1989
Suzuki GSX 750 F 100 CV, 74 kw 4cil. GR78A L Bastidores: GR78A-105765-GR78A-113117 1990
Suzuki GSX 750 F 100 CV, 74 kw 4cil. GR78A M Bastidores: GR78A-113118-GR78A-119544 1991
Suzuki GSX 750 F 100 CV, 74 kw 4cil. GR78A N Bastidores: GR78A-119545-GR78A-125060 1992
Suzuki GSX 750 F 100 CV, 74 kw 4cil. GR78A P Bastidores: GR78A-125061-GR78A-131111 1993
Suzuki GSX 750 F 98 CV, 72 kw 4cil. GR78A R Bastidores: GR78A-131112-GR78A-134161 1994
Suzuki GSX 750 F 98 CV, 72 kw 4cil. GR78A S Bastidores: GR78A-134162-GR78A-135737 1995
Suzuki GSX 750 F 98 CV, 72 kw 4cil. GR78A T Bastidores: GR78A-135738-GR78A-137319 1996
Suzuki GSX 750 F 98 CV, 72 kw 4cil. GR78A V Bastidores: GR78A-137320-- 1997
