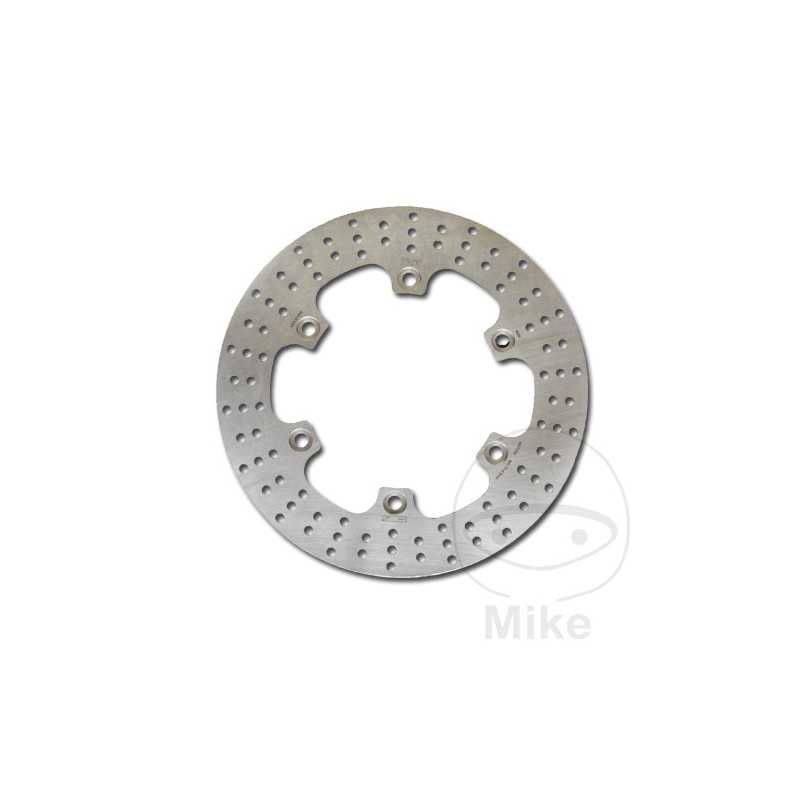

TRW motorcycle brake disc 788.02.55

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 1000 F 100 CV, 74 kw 4cil. SC21 H Bastidores: SC21-2000016-SC21-2010711 1987
Honda CBR 1000 F 100 CV, 74 kw 4cil. SC21 J Bastidores: SC21-2100809-SC21-2108376 1988
Honda CBX 750 F 91 CV, 67 kw 4cil. RC17 E Bastidores: RC17-2000010-RC17-2099999 1984-1985
Honda CBX 750 F 91 CV, 67 kw 4cil. RC17 G Bastidores: RC17-2100239-RC17-2199999 1986
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 K Bastidores: JH2 PC16-KK000001-JH2 PC16-KK099999 1989
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 L Bastidores: JH2 PC16-LK100001-JH2 PC16-LK199999 1990
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C 1 Bastidores: VTM RC47C henceforth1E200001-VTM RC47C henceforth1E299999 2001
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C W Bastidores: VTM RC47C henceforthWE200002-VTM RC47C henceforthWE200361 1998
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C X Bastidores: VTM RC47C henceforthXE200061-VTM RC47C henceforthXE299999 1999
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C Y Bastidores: VTM RC47C henceforthYE200001-VTM RC47C henceforthYE299999 2000
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B 1 Bastidores: VTM RC47B henceforth1E100001-VTM RC47B henceforth1E199999 2001
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B W Bastidores: VTM RC47B henceforthWE100002-VTM RC47B henceforthWE100361 1998
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B X Bastidores: VTM RC47B henceforthXE100001-VTM RC47B henceforthXE199999 1999
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B Y Bastidores: VTM RC47B henceforthYE100001-VTM RC47B henceforthYE199999 2000
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A 1 Bastidores: VTM RC47A henceforth1E100001-VTM RC47A henceforth1E199999 2001
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A W Bastidores: VTM RC47A henceforthWE100003-VTM RC47A henceforthWE001743 1998
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A X Bastidores: VTM RC47A henceforthXE100362-VTM RC47A henceforthXE109999 1999
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A Y Bastidores: VTM RC47A henceforthYE100001-VTM RC47A henceforthYE199999 2000
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 2 Bastidores: VTM RC47C henceforth2E140001-VTM RC47C henceforth2E199999 2002
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 3 Bastidores: VTM RC47C henceforth3E150001-VTM RC47C henceforth3E199999 2003
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 4 Bastidores: VTM RC47C henceforth4E160001-VTM RC47C henceforth4E199999 2004
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 5 Bastidores: VTM RC47C henceforth5E160001-- 2005
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 2 Bastidores: VTM RC47B henceforth2E100001-VTM RC47B henceforth2E199999 2002
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 3 Bastidores: VTM RC47B henceforth3E100001-VTM RC47B henceforth3E199999 2003
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 4 Bastidores: VTM RC47B henceforth4E100001-VTM RC47B henceforth4E199999 2004
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 5 Bastidores: VTM RC47B henceforth5E100001-- 2005
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 2 Bastidores: VTM RC47A henceforth2E340001-VTM RC47A henceforth2E399999 2002
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 3 Bastidores: VTM RC47A henceforth3E350001-VTM RC47A henceforth3E399999 2003
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 4 Bastidores: VTM RC47A henceforth4E360001-VTM RC47A henceforth4E399999 2004
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 5 Bastidores: VTM RC47A henceforth5E370001-- 2005
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 6 Bastidores: VTM RC52A henceforth6E000001-VTM RC52A henceforth6E009999 2006
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 7 Bastidores: VTM RC52A henceforth7E010001-VTM RC52A henceforth7E019999 2007
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 8 Bastidores: VTM RC52A henceforth8E020001-VTM RC52A henceforth8E029999 2008-2009
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A A Bastidores: VTM RC52C-AE000001-- 2010
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC59A B Bastidores: ZDC RC59A henceforthBF010001-- 2011-2013
Honda SLR 650 34 CV, 25 kw 1cil. RD09C V Bastidores: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
Honda SLR 650 34 CV, 25 kw 1cil. RD09C W Bastidores: VTM RD09C henceforthWE000002-- 1998
Honda SLR 650 39 CV, 29 kw 1cil. RD09A V Bastidores: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
Honda SLR 650 39 CV, 29 kw 1cil. RD09A W Bastidores: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32 S Bastidores: SC32-3000010-- 1995
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B T Bastidores: SC32B-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B V Bastidores: SC32B-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B W Bastidores: SC32B-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32 S Bastidores: SC32-2000010-- 1995
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A T Bastidores: SC32A-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA005001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A W Bastidores: SC32A-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A X Bastidores: 1HF SC32A-XA205001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 34 CV, 25 kw 2cil. SC39C W Bastidores: 1HF SC39C-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 34 CV, 25 kw 2cil. SC39C X Bastidores: 1HF SC39C-XA100001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 50 CV, 37 kw 2cil. SC39E W Bastidores: 1HF SC39E-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 50 CV, 37 kw 2cil. SC39E X Bastidores: 1HF SC39E-XA100001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 57 CV, 42 kw 2cil. SC39A W Bastidores: 1HF SC39A-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 57 CV, 42 kw 2cil. SC39A X Bastidores: 1HF SC39A-XA100001-- 1999-2000
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-8000002-PC15-8000201 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 J Bastidores: PC15-8100003-- 1988-1989
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-7000005-PC15-7000940 1987
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 J Bastidores: PC15-7100005-- 1988-1989
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 H Bastidores: PD06-3000002-PD06-3000101 1987
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 K Bastidores: PD06-3200001-PD06-3200500 1989
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 M Bastidores: PD06-3400001-PD06-3400950 1991
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 N Bastidores: PD06-3500001-PD06-3501067 1992
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 P Bastidores: PD06-3600001-PD06-3600700 1993
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06 R Bastidores: PD06-6000001-PD06-6001425 1994-1995
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06B T Bastidores: PD06B-TM000001-- 1996
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 H Bastidores: PD06-5000033-PD06-5011960 1987
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 K Bastidores: PD06-5200008-PD06-5207274 1989
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 L Bastidores: PD06-5300005-- 1990
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 M Bastidores: PD06-5401105-PD06-5407243 1991
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 N Bastidores: PD06-5501154-PD06-5508137 1992
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 P Bastidores: PD06-5600393-PD06-5607924 1993
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 R Bastidores: PD06-5700013-PD06-5712658 1994-1995
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06A T Bastidores: PD06A-TM000001-- 1996
Honda XL 600 V Transalp piñón engranaje fino 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje fino 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
Honda XL 600 V Transalp piñón engranaje grueso 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje grueso 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
