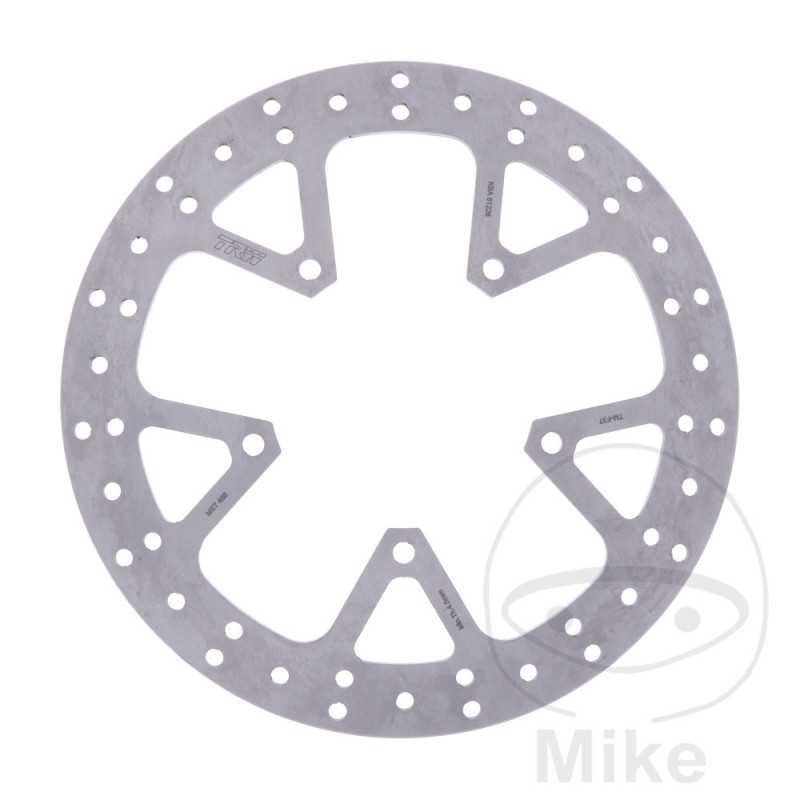

TRW motorcycle brake disc 788.02.25

All brake discs have an ABE, also for scooters.



The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.



All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.



The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.



A uniform build-up and decrease in temperature allows for a constant pressure point.





A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.



Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc



- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 101.3MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Peugeot Geopolis 125 ie Executive ABS 15 CV, 11 kw 1cil. VGA N2AAAA N2 Bastidores: --- 2007
Peugeot Geopolis 125 ie Executive ABS 15 CV, 11 kw 1cil. VGA N2AABA N2 Bastidores: --- 2008-2011
Peugeot Geopolis 125 ie Premium 15 CV, 11 kw 1cil. VGA N2AAAA N2 Bastidores: --- 2007
Peugeot Geopolis 125 ie Premium 15 CV, 11 kw 1cil. VGA N2AABA N2 Bastidores: --- 2008-2012
Peugeot Geopolis 125 ie Urban ABS 15 CV, 11 kw 1cil. VGA N2AABA N2 Bastidores: --- 2008-2012
Peugeot Geopolis 250 ie Executive ABS 22,4 CV, 16,5 kw 1cil. VGA N2ADAA N2 Bastidores: --- 2007-2009
Peugeot Geopolis 250 ie Premium 22,4 CV, 16,5 kw 1cil. VGA N2ADAA N2 Bastidores: --- 2006-2011
Peugeot Geopolis 250 ie Urban ABS 22,4 CV, 16,5 kw 1cil. VGA N2ADAA N2 Bastidores: --- 2010-2012
Peugeot Geopolis 250 RS ie Premium 22,4 CV, 16,5 kw 1cil. VGA N2ADAA N2 Bastidores: --- 2007-2011
Peugeot Geopolis 300 ie Geostyle 21,9 CV, 16,1 kw 1cil. VGA N2AGAA N2 Bastidores: --- 2011-2012
Peugeot Geopolis 300 ie Premium 21,9 CV, 16,1 kw 1cil. VGA N2AGAA N2 Bastidores: --- 2011-2014
Peugeot Geopolis 300 RS ie Premium 21,9 CV, 16,1 kw 1cil. VGA N2AGAA N2 Bastidores: --- 2011-2014
Peugeot Geopolis 400 ie Executive ABS 32,6 CV, 24 kw 1cil. VGA N2AEAA N2 Bastidores: --- 2007-2009
Peugeot Geopolis 400 ie Premium 32,6 CV, 24 kw 1cil. VGA N2AEAA N2 Bastidores: --- 2007-2012
Peugeot Geopolis 400 ie Urban ABS 32,6 CV, 24 kw 1cil. VGA N2AEAA N2 Bastidores: --- 2010-2012
Peugeot Geopolis 400 RS ie Premium 32,6 CV, 24 kw 1cil. VGA N2AEAA N2 Bastidores: --- 2008-2011
Peugeot Geopolis 500 ie Premium 37,4 CV, 27,5 kw 1cil. VGA N2AFFA N2 Bastidores: --- 2008-2012
Peugeot Satelis 125 2 ie ABS SBC 14,4 CV, 10,6 kw 1cil. - J2 Bastidores: --- 2017-2019
Peugeot Satelis 125 2 ie Black Edition ABS SBC 14,4 CV, 10,6 kw 1cil. - J2 Bastidores: --- 2017-2019
Peugeot Satelis 125 2 ie Black Edition Premium 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2016
Peugeot Satelis 125 2 ie Black Edition Urban ABS 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2016
Peugeot Satelis 125 2 ie Blue Line 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2015-2016
Peugeot Satelis 125 2 ie Executive ABS 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2013-2014
Peugeot Satelis 125 2 ie Premium 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2014-2016
Peugeot Satelis 125 2 ie Urban ABS 14 CV, 10,3 kw 1cil. VGA J2BACA J2 Bastidores: --- 2013-2016
Peugeot Satelis 125 ie Avenue 15 CV, 11 kw 1cil. VGA J2AABA J2 Bastidores: --- 2008-2009
Peugeot Satelis 125 ie Executive ABS 15 CV, 11 kw 1cil. VGA J2AAAA J2 Bastidores: --- 2007
Peugeot Satelis 125 ie Executive ABS 15 CV, 11 kw 1cil. VGA J2AABA J2 Bastidores: --- 2008-2013
Peugeot Satelis 125 ie K15 Compressor Executive ABS 15 CV, 11 kw 1cil. - J2 Bastidores: --- 2008-2012
Peugeot Satelis 125 ie K15 Compressor Executive Black Sat ABS 15 CV, 11 kw 1cil. - J2 Bastidores: --- 2008-2012
Peugeot Satelis 125 ie K15 Compressor Premium 15 CV, 11 kw 1cil. - J2 Bastidores: --- 2007-2012
Peugeot Satelis 125 ie K15 Compressor Premium Black Sat 15 CV, 11 kw 1cil. - J2 Bastidores: --- 2008-2012
Peugeot Satelis 125 ie K20 Compressor Executive ABS 20 CV, 14,7 kw 1cil. - J2 Bastidores: --- 2008-2009
Peugeot Satelis 125 ie K20 Compressor Premium 20 CV, 14,7 kw 1cil. - J2 Bastidores: --- 2007-2009
Peugeot Satelis 125 ie Premium 15 CV, 11 kw 1cil. VGA J2AAAA J2 Bastidores: --- 2006-2007
Peugeot Satelis 125 ie Premium 15 CV, 11 kw 1cil. VGA J2AABA J2 Bastidores: --- 2008-2013
Peugeot Satelis 125 ie Urban ABS 15 CV, 11 kw 1cil. VGA J2AABA J2 Bastidores: --- 2008-2013
Peugeot Satelis 125 RS ie Premium 15 CV, 11 kw 1cil. VGA J2AABA J2 Bastidores: --- 2008-2013
Peugeot Satelis 2 300 ie 21,9 CV, 16,1 kw 1cil. VGA N2AGAA J2 Bastidores: --- 2013-2016
Peugeot Satelis 500 ie Executive ABS 37,4 CV, 27,5 kw 1cil. VGA J2AFAA J2 Bastidores: --- 2007-2009
Peugeot Satelis 500 ie Premium 37,4 CV, 27,5 kw 1cil. VGA J2AFAA J2 Bastidores: --- 2006-2012
Peugeot Satelis 500 ie Urban ABS 37,4 CV, 27,5 kw 1cil. VGA J2AFAA J2 Bastidores: --- 2010-2011
Peugeot Satelis 500 RS ie Premium 37,4 CV, 27,5 kw 1cil. VGA J2AFAA J2 Bastidores: --- 2008-2011
