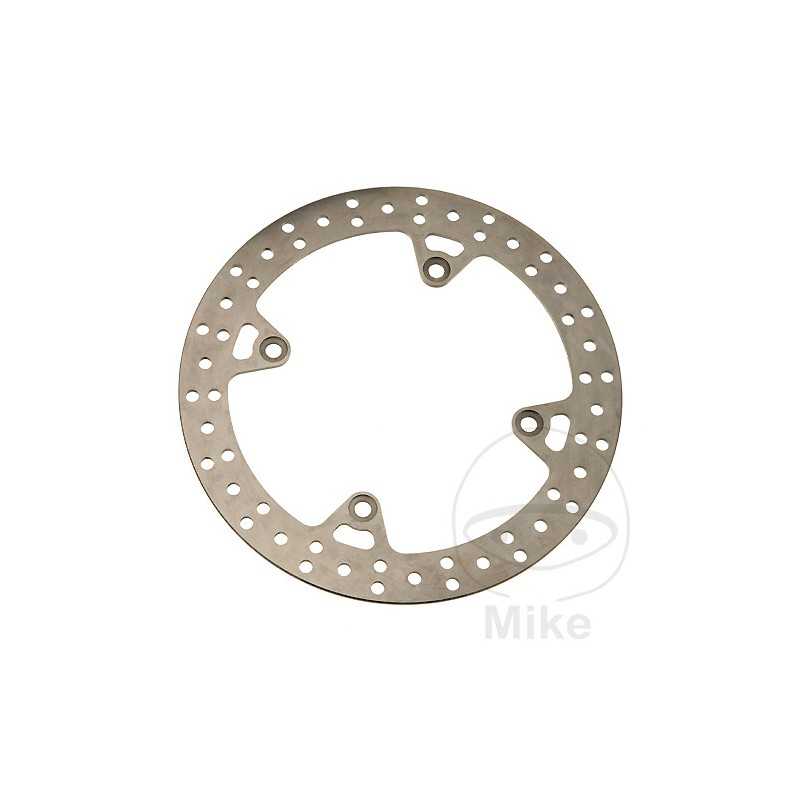

TRW motorcycle brake disc 788.02.22

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 144MM
CIRCLE SIZE: 166 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 G Bastidores: PC17-3000002-PC17-3004751 1986-1987
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 J Bastidores: PC17-3100001-PC17-3101900 1988-1989
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 G Bastidores: PC17-2000029-PC17-2003796 1986-1987
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 J Bastidores: PC17-2100002-PC17-2101610 1988-1989
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 2L Bastidores: RD02-6300002-- 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 L Bastidores: RD02-6200001-RD02-6200550 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 M Bastidores: RD02-6400001-- 1991
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 N Bastidores: RD02-3500001-RD02-3500740 1992
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 P Bastidores: RD02-3600001-- 1993
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD02 R Bastidores: RD02-7000001-- 1994
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD087 S Bastidores: ZDC RD087-1SF000396-- 1995
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B T Bastidores: ZDC RD08B henceforthTF100001-- 1996
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B V Bastidores: ZDC RD08B henceforthVF200001-- 1997
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B W Bastidores: ZDC RD08B henceforthWF300001-- 1998
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B X Bastidores: ZDC RD08B henceforthXF300001-- 1999-2000
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 M Bastidores: RD02-5400001-- 1991
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 N Bastidores: RD02-5500015-RD02-5508074 1992
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 P Bastidores: RD02-5600354-- 1993
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 R Bastidores: RD02-5700005-- 1994
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD087 S Bastidores: ZDC RD087 henceforthSF000276-- 1995
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A T Bastidores: ZDC RD08A henceforthTF100001-- 1996
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A V Bastidores: ZDC RD08A 0VF200001-- 1997
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A W Bastidores: ZDC RD08A henceforthWF300001-- 1998
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A X Bastidores: ZDC RD08A henceforthXF300001-- 1999-2000
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 2L Bastidores: RD02-5300009-- 1990
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 L Bastidores: RD02-5200136-RD02-5205987 1990
Honda NX 650 Dominator piñón engranaje fino 45 CV, 33 kw 1cil. RD02 K Bastidores: RD02-5100088-RD02-5105732 1989
Honda NX 650 Dominator piñón engranaje grueso 27 CV, 20 kw 1cil. RD02 J Bastidores: RD02-6000002-RD02-6000803 1988
Honda NX 650 Dominator piñón engranaje grueso 45 CV, 33 kw 1cil. RD02 J Bastidores: RD02-5000988-RD02-5012318 1988
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B V Bastidores: ZDC PD10B henceforthVF000001-- 1997
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B W Bastidores: ZDC PD10B henceforthWF100001-- 1998
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B X Bastidores: ZDC PD10B henceforthXF150001-- 1999-2000
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A V Bastidores: ZDC PD10A henceforthVF000001-- 1997
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A W Bastidores: ZDC PD10A henceforthWF100001-- 1998
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A X Bastidores: ZDC PD10A henceforthXF150001-- 1999-2000
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD10B 1 Bastidores: ZDC RD10B henceforth1F030001-- 2001
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD10B Y Bastidores: ZDC RD10B henceforthYF200001-- 2000
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 2 Bastidores: VTM RD11B henceforth2E100001-VTM RD11B henceforth2E199999 2002
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 3 Bastidores: VTMRD11B henceforth3E110001-VTM RD11B henceforth3E199999 2003
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 4 Bastidores: VTM RD11B henceforth4E120001-VTM RD11B henceforth4E199999 2004
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 5 Bastidores: VTM RD11B henceforth5E130001-VTM RD11B henceforth5E199999 2005
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 5 Bastidores: VTM RD11B henceforth5E600001-VTM RD11B henceforth5E699999 2005
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 6 Bastidores: VTM RD11B henceforth6E510001-- 2006-2007
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD10A 1 Bastidores: ZDC RD10A 01F030001-- 2001
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD10A Y Bastidores: ZDC RD10A henceforthYF000001-- 2000
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 2 Bastidores: VTM RD11A henceforth2E100001-VTM RD11A henceforth2E199999 2002
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 3 Bastidores: VTMRD11A henceforth3E110001-VTM RD11A henceforth3E199999 2003
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 4 Bastidores: VTM RD11A henceforth4E120001-VTM RD11A henceforth4E199999 2004
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 5 Bastidores: VTM RD11A henceforth5E130001-VTM RD11A henceforth5E199999 2005
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 5 Bastidores: VTM RD11A henceforth5E500001-VTM RD11A henceforth5E599999 2005
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 6 Bastidores: VTM RD11A henceforth6E510001-- 2006-2007
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A 8 Bastidores: VTM RD13A henceforth8E000001-VTM RD13A henceforth8E009999 2008
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A 9 Bastidores: VTM RD13A-9E010001-VTM RD13A-9E0199999 2009
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A A Bastidores: VTM RD13A-AE020001-- 2010
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A B Bastidores: ZDC RD15A henceforthBF010001-- 2011
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B 8 Bastidores: VTM RD13B henceforth8E000001-VTM RD13B henceforth8E009999 2008
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B 9 Bastidores: VTM RD13B-9E010001-VTM RD13B-9E0199999 2009
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B A Bastidores: VTM RD13B-AE020001-- 2010
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD15B B Bastidores: ZDC RD15B0-BF010001-- 2011-2013
Honda XR 650 L 42 CV, 31 kw 1cil. RD062 P Bastidores: RD062-PM000001-- 1993-1996
