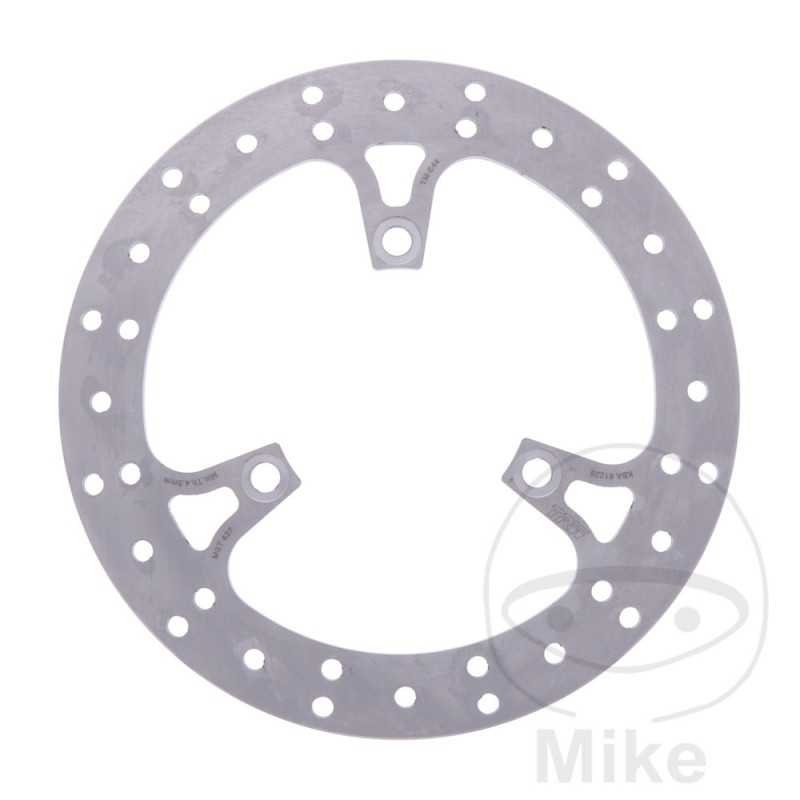

TRW motorcycle brake disc 788.01.79

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 240MM
INNER DIAMETER: 90MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.4 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K7 Bastidores: CC1111 henceforth0100001-CC1111 henceforth0118285 2007
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K8 Bastidores: CC1111 henceforth0118286-CC1111 henceforth0120025 2008
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K9 Bastidores: CC1111 henceforth0120026-CC1111 henceforth0121285 2009
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L0 Bastidores: CC1111 henceforth0121286-CC1111 henceforth0122065 2010
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L1 Bastidores: CC1111 henceforth0122066-CC1111 henceforth0126555 2011-2012
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L3 Bastidores: CC1111 henceforth0126556-- 2013
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 K8 Bastidores: CC1121 henceforth0100001-CC1121 henceforth0105948 2008
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 K9 Bastidores: CC1121 henceforth0105949-CC1121 henceforth0114488 2009
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L0 Bastidores: CC1121 henceforth0114489-CC1121 henceforth0123909 2010
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L1 Bastidores: CC1121 henceforth0123910-CC1121 henceforth0128242 2011-2012
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L3 Bastidores: CC1121 henceforth0128243-- 2013
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 K7 Bastidores: CD1111 henceforth0100001-CD1111 henceforth0100408 2007
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 K8 Bastidores: CD1111 henceforth0100409-CD1111 henceforth0114588 2008
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 K9 Bastidores: CD1111 henceforth0114589-CD1111 henceforth0115548 2009
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 L0 Bastidores: CD1111 henceforth0115549-CD1111 henceforth0116268 2010
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 L1 Bastidores: CD1111 henceforth0116269-CD1111 henceforth0117611 2011-2012
Suzuki UH 200 Burgman 18,4 CV, 13,5 kw 1cil. CD1111 L3 Bastidores: CD1111 henceforth0117612-CD1111 henceforth0199999 2013
Suzuki UH 200 G Burgman 18,4 CV, 13,5 kw 1cil. CD1121 K8 Bastidores: CD1121 henceforth0100001-CD1121 henceforth0100787 2008
Suzuki UH 200 G Burgman 18,4 CV, 13,5 kw 1cil. CD1121 K9 Bastidores: CD1121 henceforth0100788-CD1121 henceforth0101147 2009
Suzuki UH 200 G Burgman 18,4 CV, 13,5 kw 1cil. CD1121 L0 Bastidores: CD1121 henceforth0101148-CD1121 henceforth0105048 2010
Suzuki UH 200 G Burgman 18,4 CV, 13,5 kw 1cil. CD1121 L1 Bastidores: CD1121 henceforth0105049-CD1121 henceforth0106341 2011
