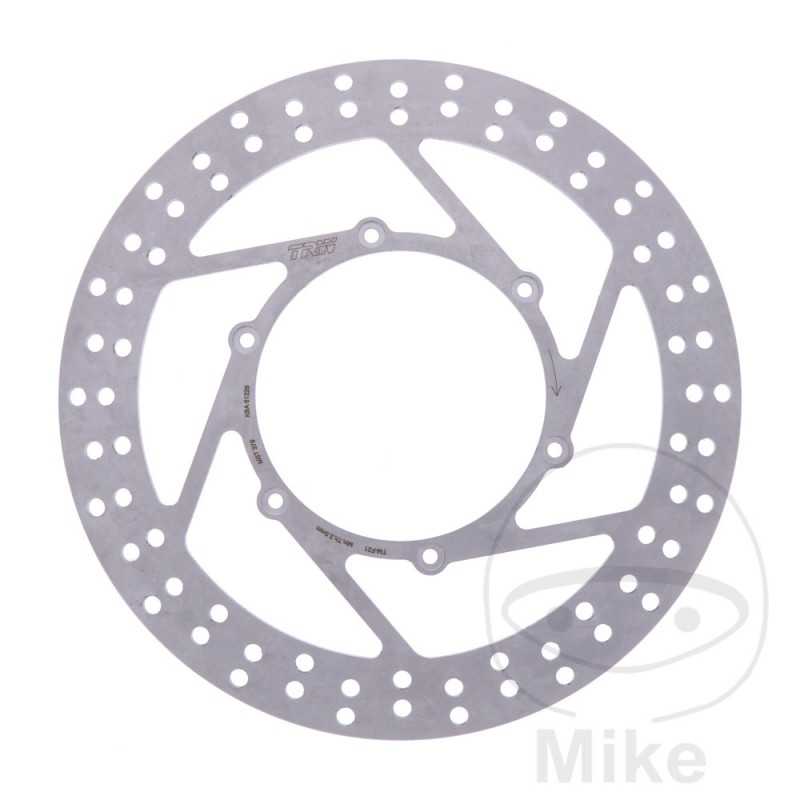

TRW motorcycle brake disc 788.01.73

All brake discs have an ABE, also for scooters.



Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.



All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.



The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.



A uniform rise and fall in temperature allows for a constant pressure point.





A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.



Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc



- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 126.5MM
CIRCLE SIZE: 143 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 640 E LC4 54/34 CV, 40 /25kw 1cil. - Bastidores: --- 2003-2007
KTM Adventure 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
