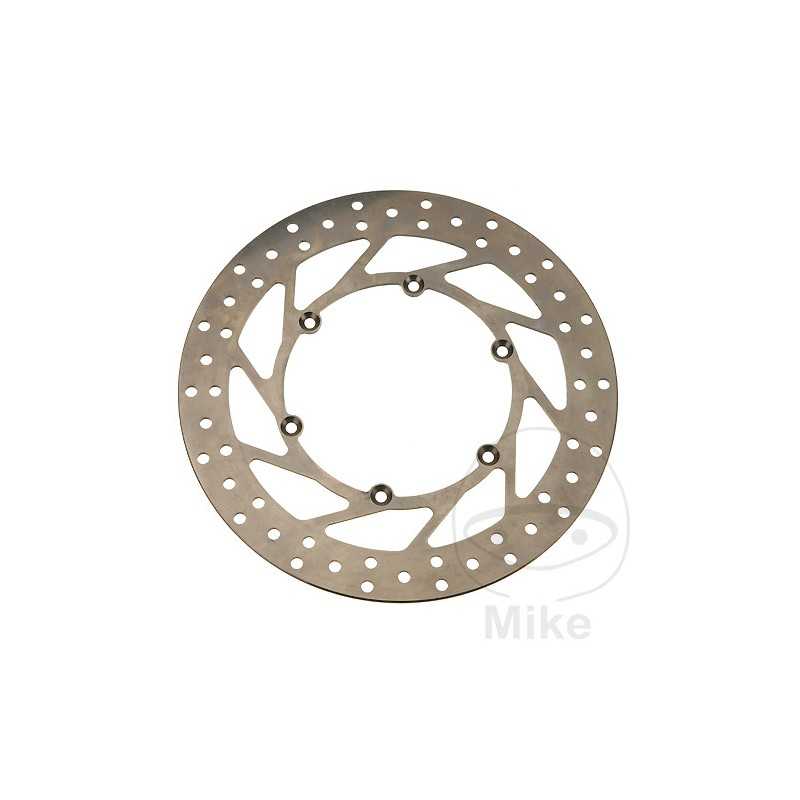

TRW motorcycle brake disc 788.01.64

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 86MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 3mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM3 Bastidores: 4BL henceforth00101-- 1991
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM4 Bastidores: 4BL henceforth10101-4BL henceforth13000 1992-1993
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM6 Bastidores: 4BL henceforth23101-4BL henceforth28999 1994-1995
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM8 Bastidores: 4BL henceforth38101-- 1996
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D01 Bastidores: DE061 henceforth00142-DE061 henceforth06706 2004
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D02 Bastidores: DE061 henceforth08114-- 2005
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D04 Bastidores: DE061 henceforth12162-DE061 henceforth16329 2006
Yamaha DT 125 RE MX Everts 15 CV, 11 kw 1cil. DE061 1D03 Bastidores: DE061 henceforth10212-- 2005-2006
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RM9 Bastidores: 4BL henceforth52099-- 1997
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RMB Bastidores: 4BL henceforth86042-- 1998
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMD Bastidores: DE031 henceforth00301-- 1999
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMJ Bastidores: DE031 henceforth03387-- 2000-2001
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMM Bastidores: DE031 henceforth07068-- 2002-2003
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMA Bastidores: 4BL henceforth57669-- 1997
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMC Bastidores: 4BL henceforth80321-- 1998
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RME Bastidores: DE032 henceforth00301-- 1999
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMG Bastidores: DE032 henceforth02301-- 2000-2001
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMK Bastidores: DE032 henceforth05008-- 2002-2003
Yamaha YZ 125 1cil. 2VN 2VN Bastidores: 2VN henceforth00101-2VN henceforth17000 1988
Yamaha YZ 125 1cil. 3JD 3JD1 Bastidores: 3JD henceforth00101-3JD henceforth22000 1989
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 2VM 2VM Bastidores: 2VM henceforth00101-- 1988
Yamaha YZ 490 1cil. 1LV 1LV Bastidores: 1LV henceforth00101-1LV henceforth10000 1986
Yamaha YZ 490 1cil. 2HJ 2HJ Bastidores: 2HJ henceforth00101-- 1987
Yamaha YZ 490 1cil. 2WH 2WH Bastidores: 2WH henceforth00101-2WH henceforth03000 1988
Yamaha YZ 490 1cil. 57H 57H Bastidores: 57H henceforth00101-57H henceforth08000 1985
