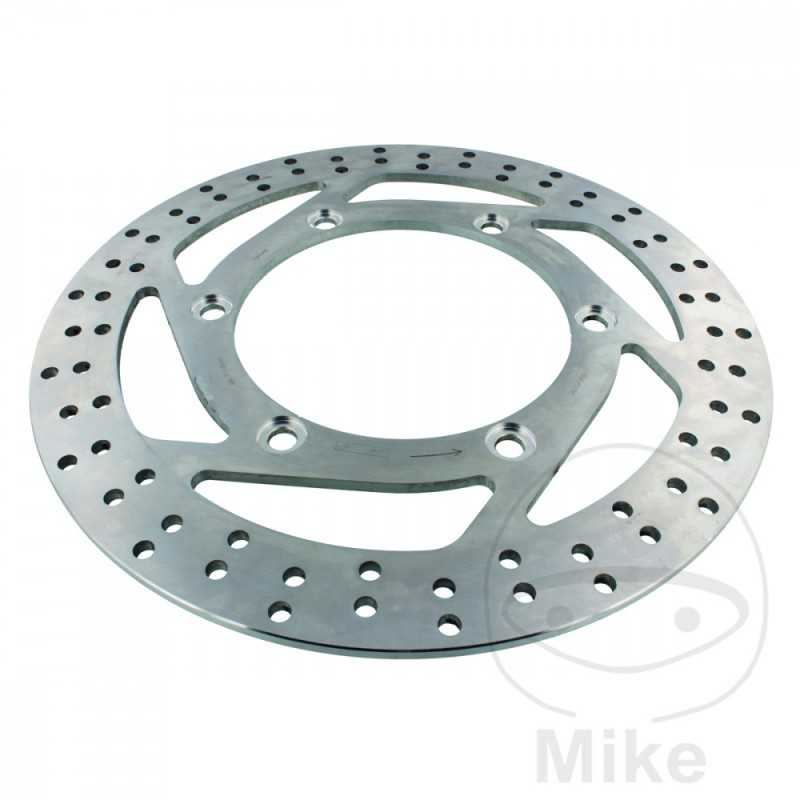

TRW motorcycle brake disc 788.01.34

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.6 MM
THICKNESS: 5.3MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph America 865 56/34 CV, 41/25 kw 2cil. 986MK Bastidores: 3 --3 - 2007
Triumph America 865 56/34 CV, 41/25 kw 2cil. 986MK Bastidores: SMTTJ9111R --SMTTJ9111R - 2007
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 468390-SMTTJ9118R - 2011
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2008-2010
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2012-2012
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 468389 2011
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 694429-SMTTJ9118R - 2015
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2013-2013
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2016-2017
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 694428 2014-2015
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 694429-SMTTJ9118R - 2015
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2016-2017
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 694428 2014-2015
Triumph Bonneville 800 34 CV, 25 kw 2cil. 908MD Bastidores: 2 - 130133-2 - 2001-2002
Triumph Bonneville 800 34 CV, 25 kw 2cil. 908MD Bastidores: 2 --2 - 2003-2006
Triumph Bonneville 800 61 CV, 45 kw 2cil. 908MD Bastidores: 2 - 130133-2 - 2001-2002
Triumph Bonneville 800 61 CV, 45 kw 2cil. 908MD Bastidores: 2 --2 - 2003-2006
Triumph Bonneville 800 America 34 CV, 25 kw 2cil. 908M Bastidores: 1 --1 - 2002-2006
Triumph Bonneville 800 America 61 CV, 45 kw 2cil. 908M Bastidores: 1 --1 - 2002-2006
Triumph Bonneville 800 Black 34 CV, 25 kw 2cil. 908MD Bastidores: 2 --2 - 2006
Triumph Bonneville 800 Black 61 CV, 45 kw 2cil. 908MD Bastidores: 2 --2 - 2006
Triumph Bonneville 865 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: 1 --1 - 2007
Triumph Bonneville 865 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9102G --SMTTJ9102G - 2007
Triumph Bonneville 865 Black 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: 1 --1 - 2007
Triumph Bonneville 865 Black 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9102G --SMTTJ9102G - 2007
Triumph Bonneville 865 EFI 67/34 CV, 49/25 kw 2cil. 986MF Bastidores: SMTTJ9107G - 317247-SMTTJ9107G - 2008
Triumph Bonneville 865 T100 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: 1 --1 - 2005-2007
Triumph Bonneville 865 T100 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9152G --SMTTJ9152G - 317246 2007
Triumph Scrambler 865 57/34 CV, 42/25 kw 2cil. 986MG Bastidores: 1 --1 - 317246 2006-2007
Triumph Scrambler 865 57/34 CV, 42/25 kw 2cil. 986MG Bastidores: SMTTJ9171G - 317247-SMTTJ9171G - 2007
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G - 421438-SMTTJ9178G - 2010
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G - 463262-SMTTJ9178G - 2011
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 2008-2008
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 2012-2012
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 421437 2009
Triumph Scrambler 865 EFI 58/34 CV, 43/25 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 463261 2011
Triumph Scrambler 865 EFI 58/48 CV, 43/35 kw 2cil. 986MG2 Bastidores: SMTTJ9178G - 694351-SMTTJ9178G - 2015
Triumph Scrambler 865 EFI 58/48 CV, 43/35 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 2013-2013
Triumph Scrambler 865 EFI 58/48 CV, 43/35 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 2016-2017
Triumph Scrambler 865 EFI 58/48 CV, 43/35 kw 2cil. 986MG2 Bastidores: SMTTJ9178G --SMTTJ9178G - 694350 2014-2015
