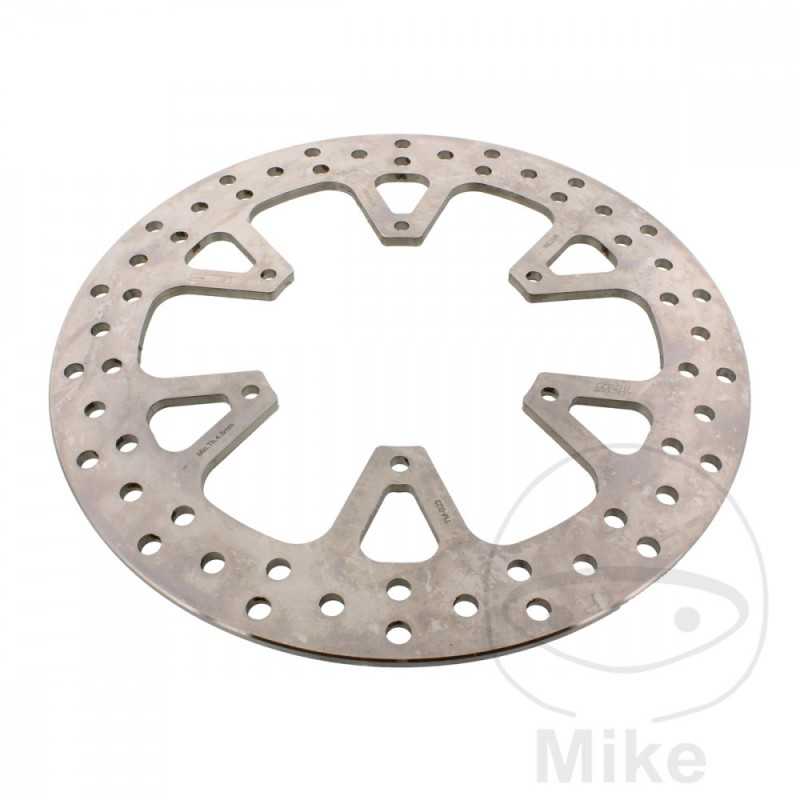

TRW motorcycle brake disc 788.01.00

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 110.3MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 1050 ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2015-2016
KTM Adventure 1050 ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2015-2016
KTM Adventure 1090 ABS 125 CV, 92 kw 2cil. - Bastidores: --- 2017-2019
KTM Adventure 1090 L ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2018
KTM Adventure 1090 L ABS A2 48 CV, 35 kw 2cil. - Bastidores: --- 2018
KTM Adventure 1090 R ABS 125 CV, 92 kw 2cil. - Bastidores: --- 2017-2019
KTM Adventure 1190 ABS 150 CV, 110 kw 2cil. - Bastidores: --- 2013-2016
KTM Adventure 1190 R ABS 150 CV, 110 kw 2cil. - Bastidores: --- 2013-2016
KTM Super Adventure 1290 LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2015-2016
KTM Super Adventure 1290 R LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2018-2020
KTM Super Adventure 1290 R LC8 ABS Euro5 160 CV, 118 kw 2cil. - Bastidores: --- 2021
KTM Super Adventure 1290 S LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2018-2020
KTM Super Adventure 1290 S LC8 ABS Euro5 160 CV, 118 kw 2cil. - Bastidores: --- 2021-2022
