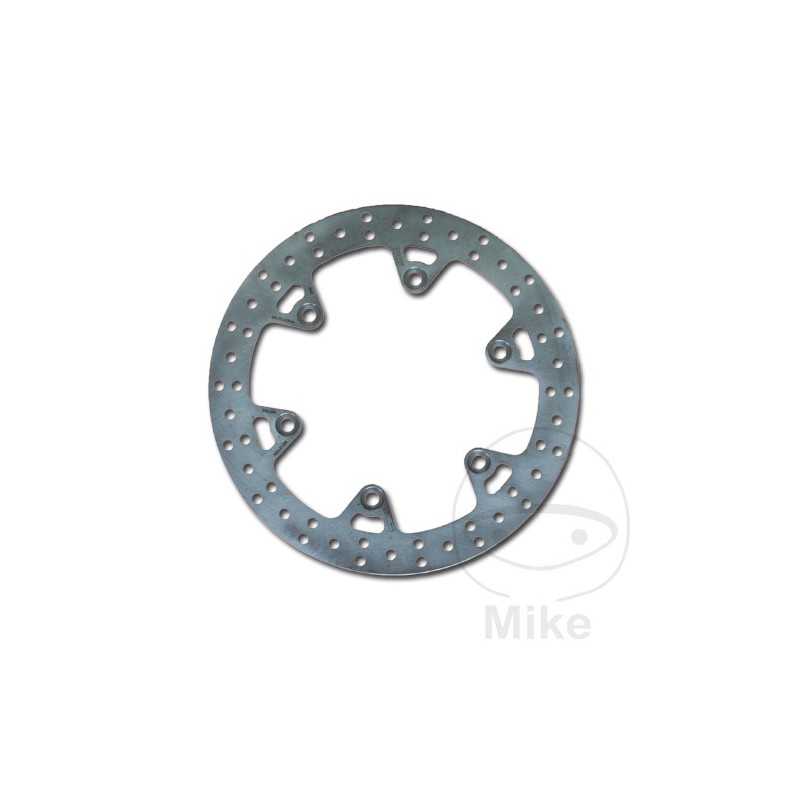

TRW motorcycle brake disc 788.00.99

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Daelim VL 125 Daystar Classic llanta de radios 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2002-2005
Daelim VL 125 Daystar Classic llanta de radios 80 Km/h 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2002-2003
Daelim VL 125 Daystar llanta de fundición 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2000-2007
Daelim VL 125 Daystar llanta de fundición 80 km/h 13,2 CV, 9,7 kw 1cil. VL125 Bastidores: --- 2000-2003
Daelim VT 125 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-W000010-KMYVT125FK-W010214 1998-2000
Daelim VT 125 80 Km/h 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-W000010-KMYVT125FK-W010214 1998-2000
Daelim VT 125 Evolution 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-Y019730-KMYVT125FK-Y020387 2000-2002
Daelim VT 125 Evolution 80 Km/h 13,1 CV, 9,6 kw 1cil. VT125FK Bastidores: KMYVT125FK-Y019730-KMYVT125FK-Y020387 2000-2002
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 4 Bastidores: MLH JC34A-45000001-MLH JC34A-45099999 2004
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A 555100001-MLH JC34A-555199999 2005
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006-2007
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A 7 Bastidores: MLH JC39A-75000001-MLH JC39A-75099999 2007-2008
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A 9 Bastidores: MLH JC39A-95100001-MLH JC39A-95199999 2009
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A A Bastidores: MLH JC39A-A5200001-- 2010
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B 7 Bastidores: MLH JC39B-75000001-MLH JC39B-75099999 2007-2008
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B 9 Bastidores: MLH JC39B-95100001-MLH JC39B-95199999 2009
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B A Bastidores: MLH JC39B-A5200001-- 2010
Honda CBR 600 F 100 CV, 74 kw 4cil. PC25 M Bastidores: PC25-2000055-PC25-2011277 1991
Honda CBR 600 F 100 CV, 74 kw 4cil. PC25 N Bastidores: PC25-2101435-PC25-2115035 1992
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 M Bastidores: PC25-4000001-PC25-4000400 1991
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 N Bastidores: PC25-4100001-PC25-4100780 1992
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 P Bastidores: PC25-4200001-PC25-4200735 1993
Honda CBR 600 F 34 CV, 25 kw 4cil. PC25 R Bastidores: PC25-6000001-PC25-6000660 1994
Honda CBR 600 F 50 CV, 37 kw 4cil. PC19 H Bastidores: PC19-3000002-PC19-3001007 1987
Honda CBR 600 F 50 CV, 37 kw 4cil. PC19 J Bastidores: PC19-3100001-PC19-3100525 1988
Honda CBR 600 F 50 CV, 37 kw 4cil. PC23 K Bastidores: PC23-3000001-PC19-3000450 1989
Honda CBR 600 F 50 CV, 37 kw 4cil. PC23 L Bastidores: PC23-3100001-PC23-3100450 1990
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 M Bastidores: PC25-3000001-PC25-3000036 1991
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 N Bastidores: PC25-3100001-PC25-3100371 1992
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 P Bastidores: PC25-3200001-PC25-3200406 1993
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 R Bastidores: PC25-3300001-PC25-3300029 1994
Honda CBR 600 F 85 CV, 63 kw 4cil. PC19 H Bastidores: PC19-2000002-PC19-2007345 1987
Honda CBR 600 F 85 CV, 63 kw 4cil. PC19 J Bastidores: PC19-2100861-PC19-2106279 1988
Honda CBR 600 F 93 CV, 68 kw 4cil. PC23 K Bastidores: PC23-2000013-PC23-2007754 1989
Honda CBR 600 F 93 CV, 68 kw 4cil. PC23 L Bastidores: PC23-2100003-PC23-2105857 1990
Honda CBR 600 F 98 CV, 72 kw 4cil. PC25 P Bastidores: PC25-2200003-PC25-2213156 1993
Honda CBR 600 F 98 CV, 72 kw 4cil. PC25 R Bastidores: PC25-2300691-PC25-2312054 1994
Honda CBX 750 F 91 CV, 67 kw 4cil. RC17 E Bastidores: RC17-2000010-RC17-2099999 1984-1985
Honda CBX 750 F 91 CV, 67 kw 4cil. RC17 G Bastidores: RC17-2100239-RC17-2199999 1986
Honda FX 650 Vigor 34 CV, 25 kw 1cil. RD09C X Bastidores: VTM RD09C henceforthXE110002-- 1999-2000
Honda FX 650 Vigor 39 CV, 29 kw 1cil. RD09A X Bastidores: VTM RD09A henceforthXE420004-- 1999-2000
Honda PC 800 Pacific Coast 58 CV, 43 kw 2cil. RC34 K Bastidores: RC34-2000005-- 1989
Honda PC 800 Pacific Coast 58 CV, 43 kw 2cil. RC34 L Bastidores: RC34-2100001-- 1990
Honda VF 1000 F Interceptor 100 CV, 74 kw 4cil. SC15 E Bastidores: SC15-2000013-SC15-2007450 1984
Honda VF 1000 F Interceptor 100 CV, 74 kw 4cil. SC15 F Bastidores: SC15-2100013-SC15-2101828 1985
Honda VF 1000 F2 Bol d´Or 100 CV, 74 kw 4cil. SC15 F Bastidores: SC15-4000018-SC15-4003877 1985
Honda VFR 400 R 60 CV, 44 kw 4cil. NC24 H Bastidores: NC24-1000010-NC24-1017050 1987
Honda VFR 750 F 100 CV, 74 kw 4cil. RC24 G Bastidores: RC24-2000218-RC24-2007371 1986
Honda VFR 750 F 100 CV, 74 kw 4cil. RC24 H Bastidores: RC24-2100006-RC24-2104335 1987
Honda XLV 750 R 50 CV, 37 kw 2cil. RD01 D Bastidores: RD01-3000005-RD01-3099999 1983-1985
Honda XLV 750 R 61 CV, 45 kw 2cil. RD01 D Bastidores: RD01-2000027-RD01-2002925 1983-1985
Triumph Tiger 900 83 CV, 61 kw 3cil. T400 Bastidores: 431 - 43524-431 - 1996
Triumph Tiger 900 83 CV, 61 kw 3cil. T400 Bastidores: 431 --431 - 71698 1997-1998
Triumph Tiger 900 85 CV, 63 kw 3cil. T400 Bastidores: 430 --430 - 1993-1995
Triumph Tiger 900 85 CV, 63 kw 3cil. T400 Bastidores: 430 --430 - 43523 1996
