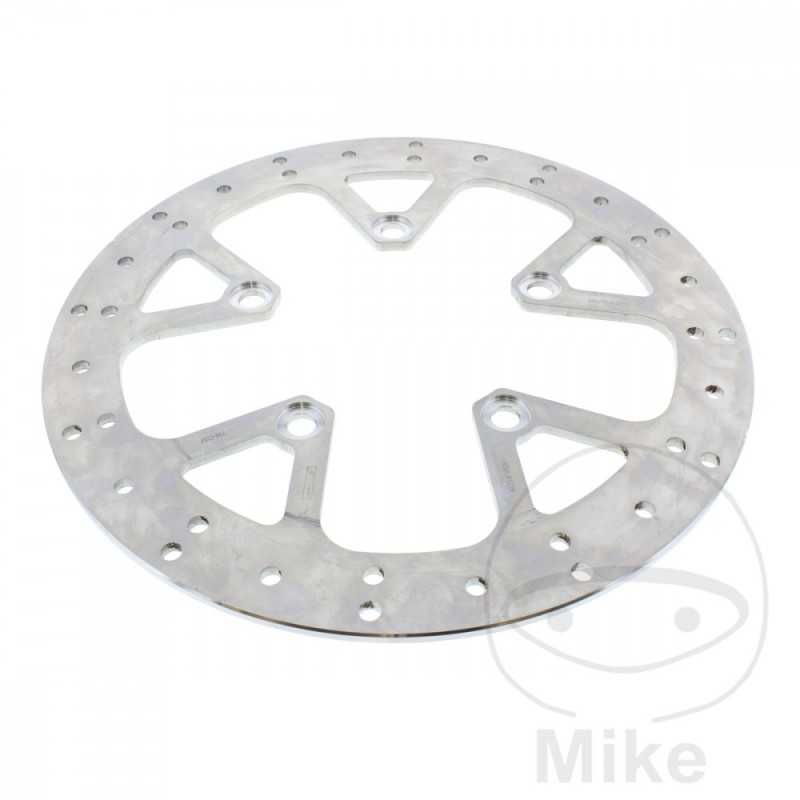

TRW motorcycle brake disc 788.00.95

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 282MM
INSIDE DIAMETER: 105.3MM
CIRCLE SIZE: 127.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.7 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 1200 Alpine Edition ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2020-2021
Triumph Tiger 1200 Desert Edition ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2020-2021
Triumph Tiger 1200 XCA ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XCA ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XCX ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XCX ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XR ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XR ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 1200 XRT ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRT ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XRX ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRX ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XRX Low ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRX Low ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger Explorer 1200 ABS 137 CV, 101 kw 3cil. V13VG Bastidores: --- 740276 2016
Triumph Tiger Explorer 1200 ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F11E9 --SMTV1F11E9 - 2012-2015
Triumph Tiger Explorer 1200 ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F11E9 --SMTV1F11E9 - 2012-2015
Triumph Tiger Explorer 1200 ABS llanta de radios 137 CV, 101 kw 3cil. V13VG Bastidores: --- 740276 2016
Triumph Tiger Explorer 1200 XC ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 2013-2014
Triumph Tiger Explorer 1200 XC ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 740276 2015
Triumph Tiger Explorer 1200 XC ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 - 740277-1 - 2016-2017
Triumph Tiger Explorer 1200 XC ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 2013-2014
Triumph Tiger Explorer 1200 XC ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 740276 2015
Triumph Tiger Explorer 1200 XCA ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XCX ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XCX Low ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XR ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XRT ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XRX ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Trophy 1215 ABS 134 CV, 99 kw 3cil. V13VH Bastidores: SMTV2H10E9 --SMTV2H10E9 - 2013-2014
Triumph Trophy 1215 SE ABS 134 CV, 99 kw 3cil. V13VH Bastidores: SMTV2H11E9 --SMTV2H11E9 - 2013-2017
