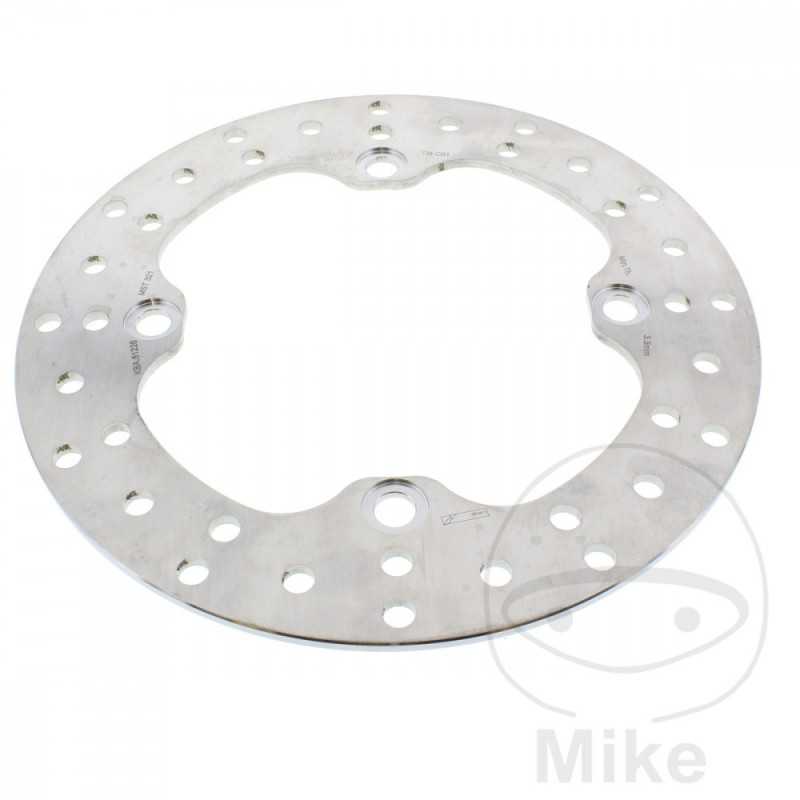

TRW motorcycle brake disc 788.00.88

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 121MM
CIRCLE SIZE: 140 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 K Bastidores: JE01-5000001-- 1989
Honda CR 125 R 1cil. JE01 L Bastidores: JE01-5100531-JE01-5103518 1990
Honda CR 125 R 1cil. JE01 M Bastidores: JE01-5200661-JE01-5203405 1991
Honda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
Honda CR 250 R 1cil. ME03 K Bastidores: ME03-2100001-- 1989
Honda CR 250 R 1cil. ME03 L Bastidores: ME03-2200001-ME03-2204309 1990
Honda CR 250 R 1cil. ME03 M Bastidores: ME03-2300001-ME03-2304645 1991
Honda CR 250 R 1cil. ME03 N Bastidores: ME03-2400001-ME03-2404384 1992
Honda CR 250 R 53 CV, 39 kw 1cil. ME03 P Bastidores: ME03-2500001-ME03-2904986 1993
Honda CR 250 R 54 CV, 40 kw 1cil. ME03 R Bastidores: ME03-5600001-ME03-5603588 1994
Honda CR 250 R 56 CV, 41 kw 1cil. ME03 S Bastidores: ME03-5700001-ME03-5702584 1995
Honda CR 250 R 56 CV, 41 kw 1cil. ME03A T Bastidores: JH2 ME03A-TM000001-- 1996
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A V Bastidores: JH2 ME03A-VM100001-JH2 ME03A-VM103705 1997
Honda CR 500 R 1cil. PE02 K Bastidores: PE02-5800001-PE02-5899999 1989
Honda CR 500 R 1cil. PE02 L Bastidores: PE02-5900808-PE02-5901182 1990
Honda CR 500 R 1cil. PE02 M Bastidores: PE02-5000455-PE02-5000569 1991
Honda CR 500 R 1cil. PE02 N Bastidores: PE02-5100001-PE02-5100615 1992
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 P Bastidores: PE02-5200001-PE02-5200537 1993
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 R Bastidores: PE02-5300001-PE02-5300488 1994
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 S Bastidores: PE02-5400001-PE02-5400422 1995
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A 1 Bastidores: JH2 PE02A-1M500001-- 2001
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A T Bastidores: JH2 PE02A-TM000001-- 1996
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A V Bastidores: JH2 PE02A-VM100001-- 1997
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A W Bastidores: JH2 PE02A-WM200001-JH2 PE02A-WM200434 1998
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A X Bastidores: JH2 PE02A-XM300001-JH2 PE02A-XM300460 1999
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A Y Bastidores: JH2 PE02A-YM400001-- 2000
