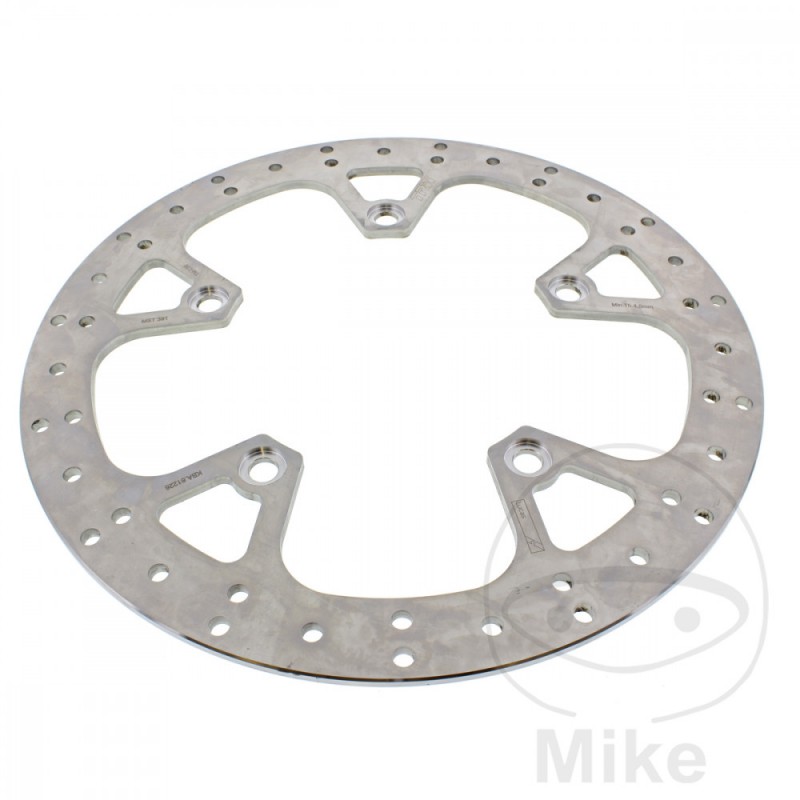

TRW motorcycle brake disc 788.00.86

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 294MM
INSIDE DIAMETER: 136.5MM
CIRCLE SIZE: 160 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW K 1200 GT ABS 152 CV, 112 kw 4cil. K12S/K44 0587 Bastidores: --- 2006-2008
BMW K 1300 GT ABS 160 CV, 118 kw 4cil. K12S/K44 0538 Bastidores: --- 2009
BMW K 1300 GT Exclusive Edition ABS 160 CV, 118 kw 4cil. K12S/K44 0538 Bastidores: --- 2010-2011
