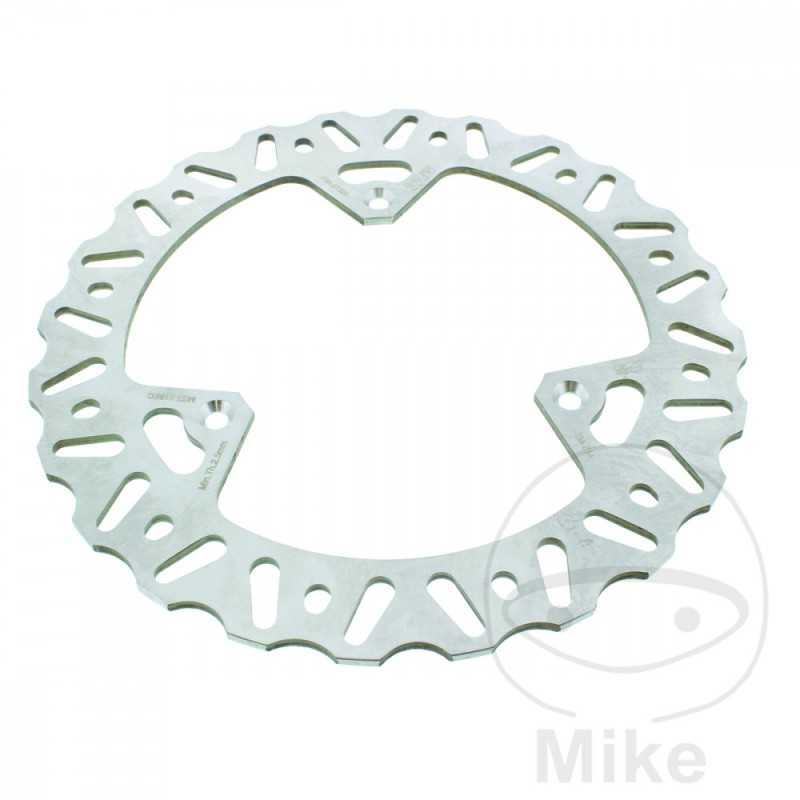

TRW motorcycle brake disc 788.00.72

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 220MM
INNER DIAMETER: 100MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 6.5 MM
thickness: 3mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K5 Bastidores: RD16C-51100001-- 2005
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K6 Bastidores: RD16C-61100001-- 2006
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K7 Bastidores: RD16C-71100001-- 2007
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K8 Bastidores: RD16C-81100001-- 2008
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K9 Bastidores: RD16C-91100001-- 2009
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C L0 Bastidores: RD16C-A1100001-- 2010-2013
Suzuki RM 85 L Grossrad 1cil. RD17C M2 Bastidores: RD17C henceforthN0000001-RD17C henceforthN0999999 2022
Suzuki RM 85 L rueda grande 1cil. RD17C L0 Bastidores: RD17C-A1100001-- 2010-2015
Suzuki RM 85 L rueda grande 1cil. RD17C L6 Bastidores: RD17C henceforthG0500001-- 2016-2017
Suzuki RM 85 L rueda grande 1cil. RD17C L8 Bastidores: RD17C henceforthJ0500001-RD17C henceforthJ0599999 2018
Suzuki RM 85 L rueda grande 1cil. RD17C L9 Bastidores: RD17C henceforthK0500001-RD17C henceforthK0599999 2019
Suzuki RM 85 L rueda grande 1cil. RD17C M0 Bastidores: RD17C henceforthL0100001-RD17C henceforthL0199999 2020
Suzuki RM 85 L rueda grande 1cil. RD17C M1 Bastidores: RD17C henceforthM0100001-RD17C henceforthM0999999 2021
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K5 Bastidores: RD17C-51100001-- 2005
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K6 Bastidores: RD17C-61100001-- 2006
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K7 Bastidores: RD17C-71100001-- 2007
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K8 Bastidores: RD17C-81100001-- 2008
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K9 Bastidores: RD17C-91100001-- 2009
Yamaha YZ 80 17/14 pulgadas 25 CV, 18 kw 1cil. 4GT 4GT1 Bastidores: 4GT henceforth00101-- 1993
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. 4GT 4GT3 Bastidores: 4GT henceforth07101-4GT henceforth10999 1994
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. 4GT 4GT5 Bastidores: 4GT henceforth15101-4GT henceforth16099 1995
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. 4GT 4GT7 Bastidores: 4GT henceforth17101-- 1996
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. 4GT 4GT9 Bastidores: 4GT henceforth19083-- 1997
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. CB01C 4ES9 Bastidores: CB01C henceforth04425-- 2000
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. CB01C 4ESA Bastidores: CB01C henceforth08030-- 2001
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. CB01C 4GTB Bastidores: CB01C henceforth00110-- 1998
Yamaha YZ 80 17/14 pulgadas 28 CV, 21 kw 1cil. CB01C 4GTD Bastidores: CB01C henceforth02305-- 1999
Yamaha YZ 80 LW 17/14 pulgadas 28 CV, 21 kw 1cil. 4LB 4LB1 Bastidores: 4LB henceforth00101-4LB henceforth01999 1994
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. 4LB 4LB3 Bastidores: 4LB henceforth04101-4LB henceforth06099 1995
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. 4LB 4LB5 Bastidores: 4LB henceforth08101-- 1996
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. 4LB 4LB7 Bastidores: 4LB henceforth11210-- 1997
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. CB02C 4LB9 Bastidores: CB02C henceforth00101-- 1998
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. CB02C 4LBB Bastidores: CB02C henceforth00656-- 1999
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. CB02C 4LC7 Bastidores: CB02C henceforth01314-- 2000
Yamaha YZ 80 LW 19/16 pulgadas 28 CV, 21 kw 1cil. CB02C 4LC8 Bastidores: CB02C henceforth02512-- 2001
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SP4 Bastidores: CB10C henceforth10467-- 2013
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SP7 Bastidores: CB10C henceforth11064-- 2014
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SPA Bastidores: CB10C henceforth11630-- 2015
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SPD Bastidores: CB10C henceforth12212-- 2016
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SPG Bastidores: CB10C henceforth12879-- 2017
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SPK Bastidores: CB10C henceforth13531-- 2018
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C B0G1 Bastidores: CB10C henceforth14004-- 2019
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB13C B0G4 Bastidores: CB13C henceforth00301-- 2020
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB13C B0G7 Bastidores: CB13C henceforth01493-- 2021
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB05C 5SH1 Bastidores: CB05C henceforth00101-- 2002
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB05C 5SH4 Bastidores: CB05C henceforth02009-- 2003
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB08C 5SH7 Bastidores: CB08C henceforth00101-- 2004
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 1SP1 Bastidores: CB10C henceforth09881-- 2012
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHA Bastidores: CB10C henceforth00101-- 2005
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHD Bastidores: CB10C henceforth02142-- 2006
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHG Bastidores: CB10C henceforth03753-- 2007
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHK Bastidores: CB10C henceforth05494-- 2008
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHN Bastidores: CB10C henceforth07213-- 2009
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHS Bastidores: CB10C henceforth08499-- 2010
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHV Bastidores: CB10C henceforth09041-- 2011
Yamaha YZ 85 LW 19/16 Zoll 1cil. CB16C B0GB Bastidores: --- 2022
Yamaha YZ 85 SW 17/14 pulgadas 1cil. CB09C 1SN7 Bastidores: CB09C henceforth19668-- 2014
Yamaha YZ 85 SW 17/14 pulgadas 1cil. CB09C 1SNA/NC Bastidores: CB09C henceforth20363-- 2015
Yamaha YZ 85 SW 17/14 pulgadas 1cil. CB09C 1SND/NF Bastidores: CB09C henceforth21330-- 2016
Yamaha YZ 85 SW 17/14 pulgadas 1cil. CB09C 1SNG/NJ Bastidores: CB09C henceforth21898-- 2017
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB04C 5PA1 Bastidores: CB04C henceforth00101-- 2002
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB04C 5PA4 Bastidores: CB04C henceforth07258-- 2003
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB07C 5PA7 Bastidores: CB07C henceforth00101-- 2004
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 1SN1 Bastidores: CB09C henceforth17856-- 2012-2013
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAA Bastidores: CB09C henceforth00101-- 2005
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAD Bastidores: CB09C henceforth04809-- 2006
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAG Bastidores: CB09C henceforth08742-- 2007
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAK Bastidores: CB09C henceforth11690-- 2008
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAN Bastidores: CB09C henceforth14326-- 2009
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAS Bastidores: CB09C henceforth16064-- 2010
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAV Bastidores: CB09C henceforth16766-- 2011
