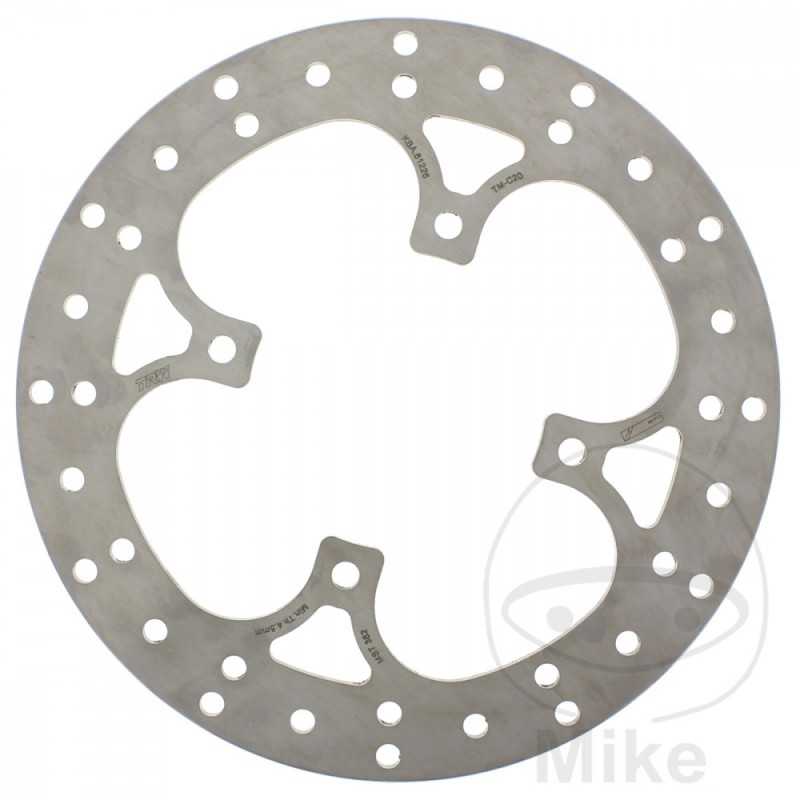

TRW motorcycle brake disc 788.00.63

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 92.5MM
CIRCLE SIZE: 114 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MBK YP 125 R Skycruiser 14,1 CV, 10,4 kw 1cil. - 1B92 Bastidores: --- 2006
Yamaha VP 125 X-City 15 CV, 10,8 kw 1cil. - 16PA Bastidores: --- 2012-2016
Yamaha VP 125 X-City 15 CV, 10,8 kw 1cil. SE431 16P1 Bastidores: SE431 henceforth00176-- 2008
Yamaha VP 125 X-City 15 CV, 10,8 kw 1cil. SE431 16P3 Bastidores: --- 2009
Yamaha VP 125 X-City 15 CV, 10,8 kw 1cil. SE431 16P5 Bastidores: SE431 henceforth08631-- 2010
Yamaha VP 125 X-City 15 CV, 10,8 kw 1cil. SE431 16P8 Bastidores: SE431 henceforth09602-- 2011
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG191 5B21 Bastidores: SG191 henceforth00072-- 2007
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG191 5B22 Bastidores: SG191 henceforth16879-- 2008
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG192 5B26 Bastidores: SG192 henceforth03805-- 2009
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG192 5B28 Bastidores: SG192 henceforth04809-- 2010
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG194 5B27 Bastidores: SG194 henceforth00101-- 2011
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG194 5B29 Bastidores: SG194 henceforth04098-- 2012
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG194 5B2B Bastidores: SG194 henceforth09101-- 2013-2014
Yamaha VP 250 X-City 21,2 CV, 15,6 kw 1cil. SG194 5B2C Bastidores: SG194 henceforth14101-- 2015-2016
Yamaha VP 300 Versity 21 CV, 15,2 kw 1cil. SH014 1S61 Bastidores: SH014 henceforth00851-SH014 henceforth00900 2004
Yamaha VP 300 Versity 21 CV, 15,5 kw 1cil. SH011 5SE1 Bastidores: SH011 henceforth00455-SH011 henceforth01639 2002-2003
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B91 Bastidores: SE321 henceforth00250-SE321 henceforth13650 2006
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B93 Bastidores: SE321 henceforth15786-- 2007
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B95 Bastidores: SE321 henceforth37945-- 2008
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B97 Bastidores: SE321 henceforth59054-- 2009
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B99 Bastidores: SE321 henceforth59262-- 2009
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG161 1C01 Bastidores: SG161 henceforth00020-- 2005
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG161 1C03 Bastidores: SG161 henceforth09989-- 2006
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C04 Bastidores: SG162 henceforth04420-- 2007
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C05 Bastidores: SG162 henceforth22011-SG162 henceforth31832 2008
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C06 Bastidores: SG162 henceforth47553-- 2009
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P3 Bastidores: SG221 henceforth16361-- 2011
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P6 Bastidores: SG221 henceforth26611-- 2012
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG257 1YS6 Bastidores: SG257 henceforth00101-- 2013
Yamaha YP 250 R X-Max 21,2 CV, 15,6 kw 1cil. SG221 37P1 Bastidores: SG221 henceforth00001-- 2010
Yamaha YP 250 R X-Max Black Max 21,2 CV, 15,6 kw 1cil. SG162 1C07 Bastidores: SG162 henceforth47598-- 2009
Yamaha YP 250 R X-Max Momodesign 20,4 CV, 15 kw 1cil. SG257 1YS9 Bastidores: SG257 henceforth00106-- 2013-2015
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P5 Bastidores: SG224 henceforth00001-- 2011
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P8 Bastidores: SG224 henceforth03001-- 2012-2014
