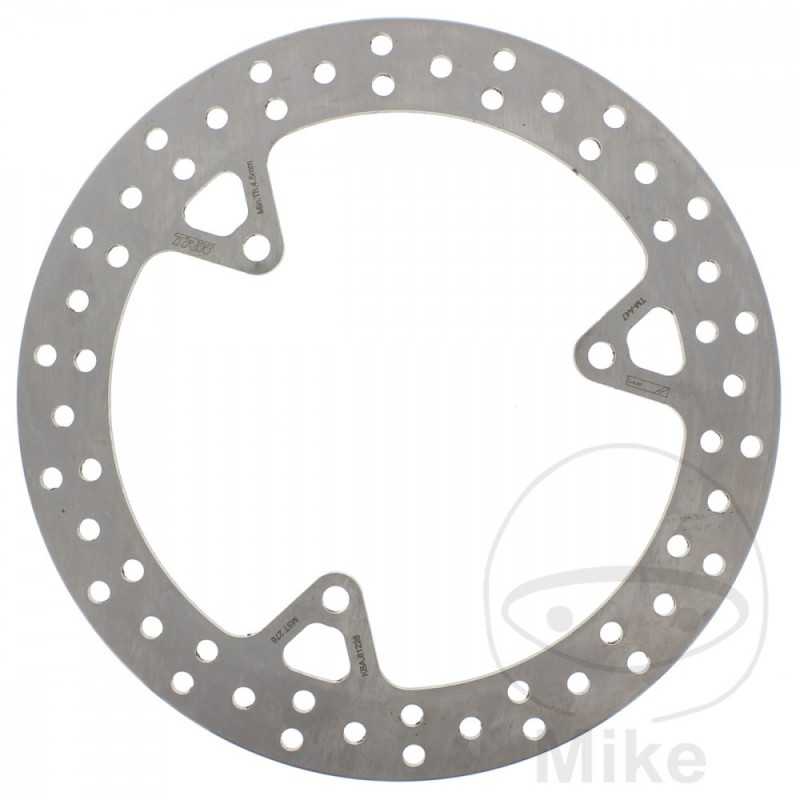

TRW motorcycle brake disc 788.00.62

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 116.3MM
CIRCLE SIZE: 136 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39D1 Bastidores: SE541 henceforth00001-- 2010
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39D5 Bastidores: SE541 henceforth12191-- 2011
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39DB Bastidores: SE541 henceforth23021-- 2012
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE641 2ABA Bastidores: SE641 henceforth02001-- 2013
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM1 Bastidores: SE681 henceforth00090-- 2014
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM7 Bastidores: SE681 henceforth05101-- 2014
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM9 Bastidores: SE681 henceforth13101-- 2015
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DME Bastidores: SE681 henceforth19101-- 2016
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE686 2DM5 Bastidores: SE686 henceforth00101-- 2015
Yamaha YP 125 R X-Max Momodesign 14 CV, 10,4 kw 1cil. SE649 2ABG Bastidores: SE649 henceforth00101-- 2013-2015
Yamaha YP 125 R X-Max Sport 14 CV, 10,4 kw 1cil. SE546 39DD Bastidores: SE546 henceforth01951-- 2012-2013
Yamaha YP 125 R X-Max Sport 14,1 CV, 10,4 kw 1cil. SE546 39D7 Bastidores: SE546 henceforth00001-- 2011
Yamaha YP 125 RA Iron Max ABS 14,3 CV, 10,55 kw 1cil. SE688 2DMJ Bastidores: SE688 henceforth00101-- 2016
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE467 2ABE Bastidores: SE467 henceforth00101-- 2013
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE544 39D2 Bastidores: SE544 henceforth00301-- 2011-2012
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE644 2ABC Bastidores: SE644 henceforth02001-- 2013
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DM2 Bastidores: SE684 henceforth00097-- 2014
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DMA Bastidores: SE684 henceforth05101-- 2015
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DMG Bastidores: SE684 henceforth10201-- 2016
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE687 2DM6 Bastidores: SE687 henceforth00101-- 2015
Yamaha YP 125 RA X-Max Business ABS 14,1 CV, 10,4 kw 1cil. SE547 39D8 Bastidores: SE547 henceforth00001-- 2011
Yamaha YP 125 RA X-Max Business ABS 14,1 CV, 10,4 kw 1cil. SE547 39DE Bastidores: SE547 henceforth02601-- 2012-2013
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P3 Bastidores: SG221 henceforth16361-- 2011
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P6 Bastidores: SG221 henceforth26611-- 2012
Yamaha YP 250 R X-Max 21,2 CV, 15,6 kw 1cil. SG221 37P1 Bastidores: SG221 henceforth00001-- 2010
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P5 Bastidores: SG224 henceforth00001-- 2011
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P8 Bastidores: SG224 henceforth03001-- 2012-2014
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG222 37P4 Bastidores: SG222 henceforth00005-- 2011
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG222 37P7 Bastidores: SG222 henceforth04806-- 2012
