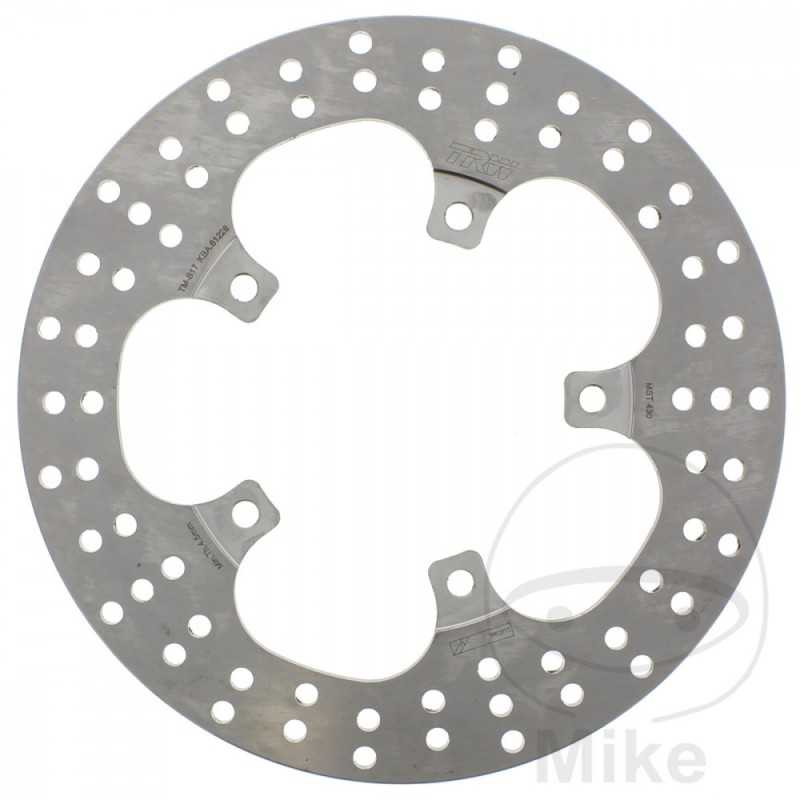

TRW motorcycle brake disc 788.00.53

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 102MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Caponord 1200 ABS 125 CV, 92 kw 2cil. VK000/VK001/VKA00/VKA01 Bastidores: --- 2013-2017
Aprilia Caponord 1200 Rally ABS 125 CV, 92 kw 2cil. VKB000/VKB001 Bastidores: --- 2015-2017
Aprilia Caponord 1200 Travel Pack ABS 125 CV, 92 kw 2cil. VK000/VK001/VKA00/VKA01 Bastidores: --- 2013-2017
Aprilia Dorsoduro 1200 130 CV, 95 kw 2cil. TV000 Bastidores: --- 2011-2013
Aprilia Dorsoduro 1200 ABS ATC 130 CV, 95 kw 2cil. TVA00 Bastidores: --- 2011-2017
Aprilia Dorsoduro 750 SMV 34 CV, 25 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV 91 CV, 67 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2008-2013
Aprilia Dorsoduro 750 SMV ABS 34 CV, 25 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV ABS 48 CV, 35 kw 2cil. SMC01 Bastidores: --- 2015-2017
Aprilia Dorsoduro 750 SMV ABS 91 CV, 67 kw 2cil. SM000/SMA00/SMC00 Bastidores: --- 2009-2013
Aprilia Dorsoduro 750 SMV ABS 91 CV, 67 kw 2cil. SMC01 Bastidores: --- 2014-2017
Aprilia Dorsoduro 750 SMV Factory 34 CV, 25 kw 2cil. SMB00/SMB01 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV Factory 91 CV, 67 kw 2cil. SMB00/SMB01 Bastidores: --- 2010-2013
Aprilia Dorsoduro 750 SMV Factory ABS 34 CV, 25 kw 2cil. SMB00/SMB01 Bastidores: --- 2011-2013
Aprilia Dorsoduro 750 SMV Factory ABS 91 CV, 67 kw 2cil. SMB00/SMB01 Bastidores: --- 2010-2013
Aprilia Shiver 750 GT 34 CV, 25 kw 2cil. RAB00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT 95 CV, 70 kw 2cil. RAB00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT ABS 34 CV, 25 kw 2cil. RAD00 Bastidores: --- 2009-2013
Aprilia Shiver 750 GT ABS 95 CV, 70 kw 2cil. RAD00 Bastidores: --- 2009-2013
Aprilia Shiver 750 SL 34 CV, 25 kw 2cil. - Bastidores: --- 2007-2009
Aprilia Shiver 750 SL 34 CV, 25 kw 2cil. RAE00 Bastidores: --- 2010-2013
Aprilia Shiver 750 SL 48 CV, 35 kw 2cil. RAE00 Bastidores: --- 2014-2016
Aprilia Shiver 750 SL 95 CV, 70 kw 2cil. - Bastidores: --- 2007-2009
Aprilia Shiver 750 SL 95 CV, 70 kw 2cil. RAE00 Bastidores: --- 2010-2016
Aprilia Shiver 750 SL ABS 34 CV, 25 kw 2cil. RAA00/RAC Bastidores: --- 2008-2009
Aprilia Shiver 750 SL ABS 34 CV, 25 kw 2cil. RAG00 Bastidores: --- 2010-2013
Aprilia Shiver 750 SL ABS 48 CV, 35 kw 2cil. RAG00 Bastidores: --- 2014-2017
Aprilia Shiver 750 SL ABS 95 CV, 70 kw 2cil. RAA00/RAC Bastidores: --- 2008-2009
Aprilia Shiver 750 SL ABS 95 CV, 70 kw 2cil. RAG00 Bastidores: --- 2010-2017
