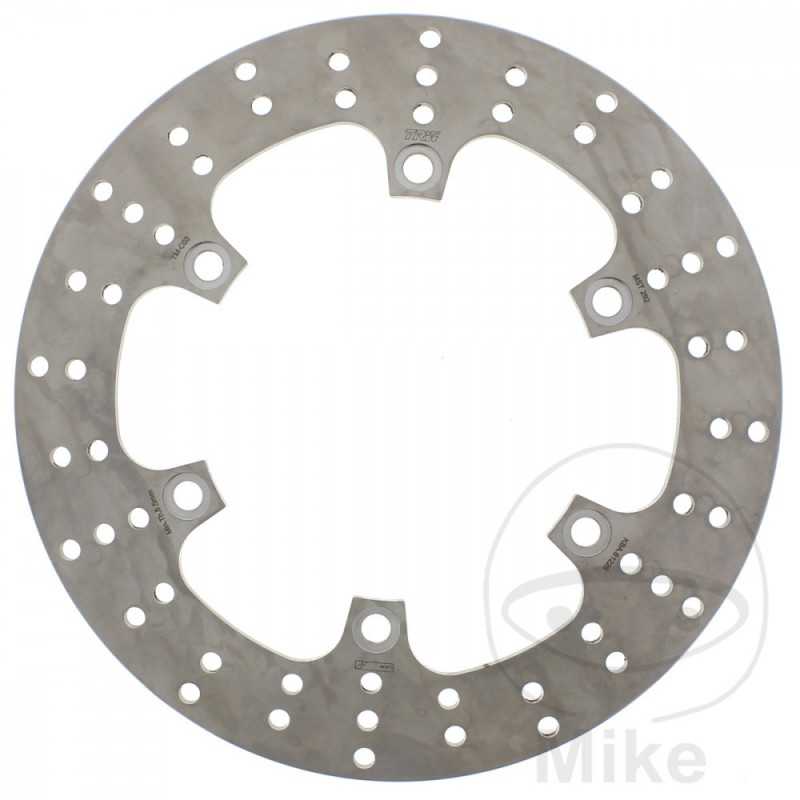

TRW motorcycle brake disc 788.00.34

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FJS 400 A SW-T ABS 39 CV, 28,7 kw 2cil. NF03B 9 Bastidores: JH2 NF03B-9K000001-- 2009-2016
Honda FJS 400 D SW-T 39 CV, 28,7 kw 2cil. NF03A 9 Bastidores: JH2 NF03A-9K000001-- 2009
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 3 Bastidores: JH2 PF01B-3K010001-JH2 PF01B-3K099999 2003
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 4 Bastidores: JH2 PF01B-4K020001-JH2 PF01B-4K099999 2004
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 5 Bastidores: JH2 PF01B-5K030001-- 2005
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 6 Bastidores: JH2 PF01B-6K100001-JH2 PF01B-6K199999 2006
Honda FJS 600 A Silver Wing ABS 52 CV, 38 kw 2cil. PF01B 7 Bastidores: JH2 PF01B-7K200001-- 2007-2010
Honda FJS 600 A SW-T ABS 52 CV, 38 kw 2cil. PF01C B Bastidores: JH2PF01D-BK000001-- 2011-2016
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 6 Bastidores: VTM RC52B henceforth6E000001-VTM RC52B henceforth6E009999 2006
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 7 Bastidores: VTM RC52B henceforth7E010001-VTM RC52B henceforth7E019999 2007
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 8 Bastidores: VTM RC52B henceforth8E020001-VTM RC52B henceforth8E029999 2008-2009
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52D A Bastidores: VTM RC52D-AE000001-- 2010
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC59B B Bastidores: ZDC RC59B henceforthBF010001-- 2011-2016
