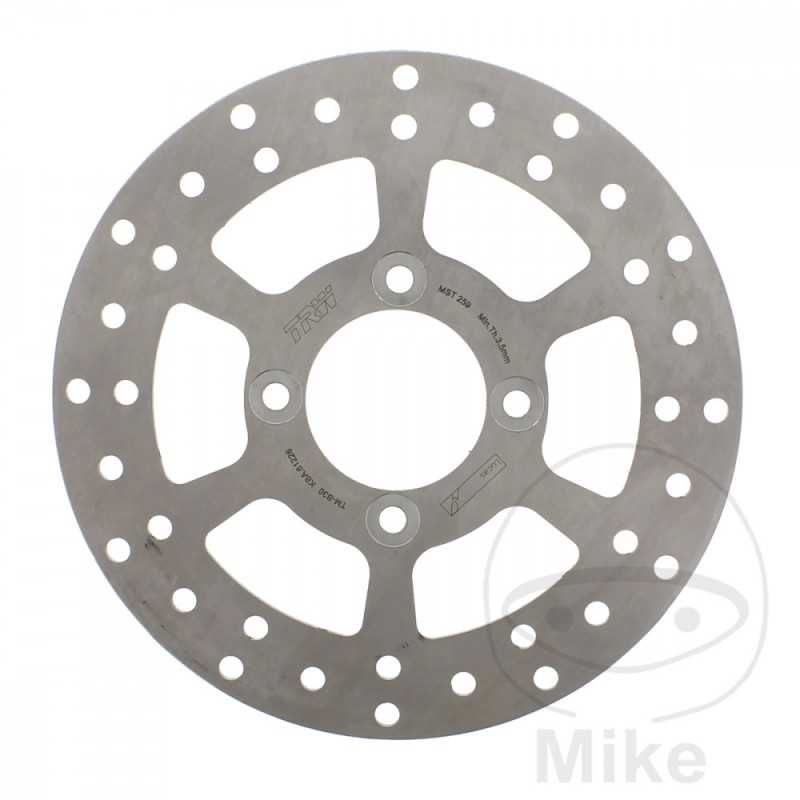

TRW motorcycle brake disc 788.00.25

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 54MM
CIRCLE SIZE: 76.5 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MBK XN 125 Doodo 11,8 CV, 8,7 kw 1cil. - 5MF6 Bastidores: --- 2002-2005
MBK XN 125 Doodo 11,8 CV, 8,7 kw 1cil. SE042 5MF2 Bastidores: SE042000 henceforth00133-- 2001
MBK XQ 125 Thunder 11,8 CV, 8,7 kw 1cil. SE052 5HT2 Bastidores: SE052000 henceforth00110-- 2001-2003
MBK YP 125 R (D) Skyliner 11,4 CV, 8,4 kw 1cil. SE062 5NR2 Bastidores: SE062000 henceforth00009-- 2001
MBK YP 125 R (D) Skyliner 11,4 CV, 8,4 kw 1cil. SE062 5NR9 Bastidores: SE062000 henceforth07633-- 2002
MBK YP 125 R (E) Skyliner 11,4 CV, 8,4 kw 1cil. - 5XL4 Bastidores: --- 2004
MBK YP 125 R (E) Skyliner 11,4 CV, 8,4 kw 1cil. SE067 5XL2 Bastidores: SE067000 henceforth00454-- 2003
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5D82 Bastidores: --- 2007
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5XL6 Bastidores: --- 2005
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5XL9 Bastidores: --- 2006
MBK YP 125 R Skyliner 11,4 CV, 8,4 kw 1cil. SE022 5DS7 Bastidores: SE022001 henceforth53102-- 1998-1999
MBK YP 125 R Skyliner 11,4 CV, 8,4 kw 1cil. SE022 5DSJ Bastidores: SE022004-352530-- 2000
Yamaha XN 125 Teos 11,8 CV, 8,7 kw 1cil. SE041 5MF1 Bastidores: SE041 henceforth00102-SE04 henceforth05872 2000-2001
Yamaha XN 125 Teos 11,8 CV, 8,7 kw 1cil. SE041 5MF5 Bastidores: SE041--- 2002-2003
Yamaha XN 150 Teos 1cil. SG071 5PR1 Bastidores: SG071 henceforth00101-- 2001-2002
Yamaha XQ 150 Maxster 13 CV, 9,6 kw 1cil. SG061 5LG1 Bastidores: SG061 henceforth00101-SG061 henceforth01314 2001-2002
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-300004-SE021-303903 1998
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-303955-- 1999
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DSH Bastidores: SE021-4305104-- 2000
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR1 Bastidores: SE061 henceforth01240-SE061 henceforth11939 2001
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR8 Bastidores: SE061 henceforth12137-SE061 henceforth15088 2002
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL5 Bastidores: SE066 henceforth17068-- 2005
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL9 Bastidores: SE066 henceforth31536-SE066 henceforth41966 2006
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D81 Bastidores: SE068 henceforth00231-- 2007
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D83 Bastidores: SE068 henceforth08242-- 2008
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D85 Bastidores: SE068 henceforth14156-- 2009
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL1 Bastidores: SE066 henceforth00113-SE066 henceforth06877 2003
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL3 Bastidores: SE066 henceforth06878-- 2004
Yamaha YP 125 R(E) Majesty Limited Edition 11,6 CV, 8,5 kw 1cil. SE066 5XL7 Bastidores: SE066 henceforth20007-- 2005
Yamaha YP 150 Majesty 1cil. SG051 5NP1 Bastidores: SG051 henceforth00006-- 2000
Yamaha YP 150 Majesty 1cil. SG081 5NS1 Bastidores: SG081 henceforth00006-- 2001
Yamaha YP 150 Majesty 1cil. SG081 5NS6 Bastidores: SG081 henceforth07057-- 2002
Yamaha YP 180 Majesty 1cil. SG121 5XM1 Bastidores: SG121 henceforth00002-- 2003
Yamaha YP 180 Majesty 1cil. SG121 5XM3 Bastidores: SG121 henceforth02560-- 2004
Yamaha YP 180 Majesty 1cil. SG121 5XM5 Bastidores: SG121 henceforth08185-- 2005
Yamaha YP 180 Majesty Limited Edition 1cil. SG121 5XM7 Bastidores: SG121 henceforth08870-- 2005
Yamaha YP 180 Majesty Limited Edition 1cil. SG121 5XM8 Bastidores: SG121 henceforth10565-- 2006
