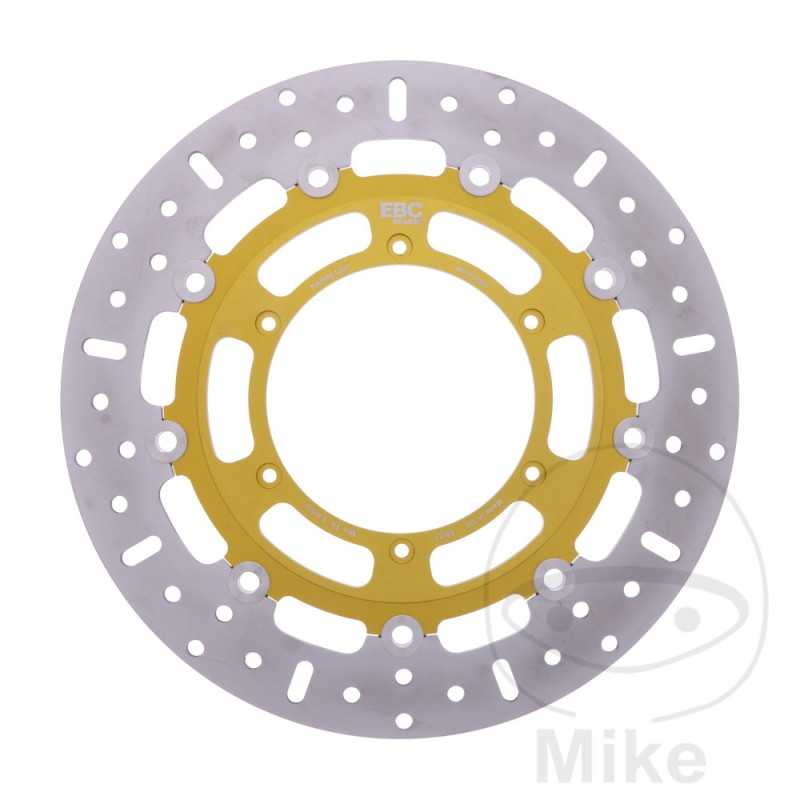

EBC motorcycle brake disc MX / ENDURO ATV 760.94.15

KTM restriction all models year 01-04 with 320 mm diameter disc.

EBC Prolite floating brake disc, full float. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Anodized aluminum hub.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM ADVENTURE 640 E LC4 54/34 CV, 40 /25KW 1CIL. - BASTIDORES: --- 2003-2004
KTM ADVENTURE 640 LC4 49 CV, 36 KW 1CIL. - BASTIDORES: --- 2001-2002
KTM ADVENTURE 640 R 49 CV, 36 KW 1CIL. - BASTIDORES: --- 1999-2000
KTM DUKE 400 27/44 CV, 20/32 KW 1CIL. - BASTIDORES: --- 1994-1995
KTM DUKE 620 31/50 CV, 23/37 KW 1CIL. - BASTIDORES: --- 1994-1995
KTM DUKE 620 E 31/50 CV, 23/37 KW 1CIL. - BASTIDORES: --- 1996
KTM DUKE 620 E 32/50 CV, 23/37 KW 1CIL. - BASTIDORES: --- 1997-1998
KTM DUKE 620 E LAST EDITION 34/54 CV, 25/40 KW 1CIL. - BASTIDORES: --- 1998-1999
KTM DUKE 640 E II 34 CV, 25 KW 1CIL. - BASTIDORES: --- 1999-2002
KTM DUKE 640 E II 54 CV, 40 KW 1CIL. - BASTIDORES: --- 1999-2002
KTM LC4-E 640 SUPERMOTO 49 CV, 36 KW 1CIL. - BASTIDORES: --- 1999-2002
KTM LC4-E 640 SUPERMOTO 54/34 CV, 40/25 KW 1CIL. - BASTIDORES: --- 2003-2006
KTM SC 620 LC4 SUPERMOTO 60 CV, 44 KW 1CIL. - BASTIDORES: --- 2000-2001
KTM SC 625 LC4 SUPER COMPETITION SUPERMOTO 31 CV, 23 KW 1CIL. - BASTIDORES: --- 2002
KTM SMC 625 SUPERMOTO 28,5/60 CV, 21/44 KW 1CIL. - BASTIDORES: --- 2005-2006
KTM SMC 625 SUPERMOTO 32/60 CV, 24/44 KW 1CIL. - BASTIDORES: --- 2004
KTM SMC 690 LC4 SUPERMOTO 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2008-2011
KTM SMC 690 LC4 SUPERMOTO 63 CV, 46,3 KW 1CIL. - BASTIDORES: --- 2008-2011
KTM SMC 690 R LC4 SUPERMOTO 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2012
KTM SMC 690 R LC4 SUPERMOTO 41 CV, 30 KW 1CIL. - BASTIDORES: --- 2013
KTM SMC 690 R LC4 SUPERMOTO 67 CV, 49 KW 1CIL. - BASTIDORES: --- 2012-2013
KTM SUPERMOTO 690 LC4 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2007-2009
KTM SUPERMOTO 690 LC4 64 CV, 47 KW 1CIL. - BASTIDORES: --- 2007-2009
KTM SUPERMOTO 690 LC4 PRESTIGE 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2007
KTM SUPERMOTO 690 LC4 PRESTIGE 64 CV, 47 KW 1CIL. - BASTIDORES: --- 2007
