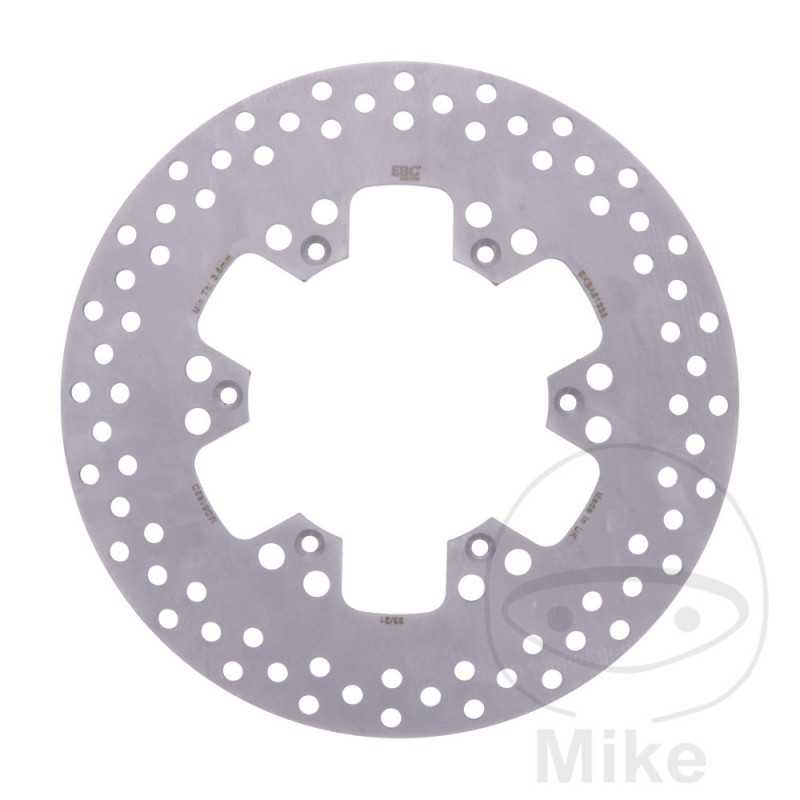

EBC motorcycle brake disc MX / ENDURO ATV 760.93.57

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA TT 600 E 41 CV, 30 KW 1CIL. 4GV 4GV2 BASTIDORES: 4GV henceforth10101-- 1994-1995
YAMAHA TT 600 E 41 CV, 30 KW 1CIL. 4GV 4GV4 BASTIDORES: 4GV henceforth11319-- 1996-1997
YAMAHA TT 600 E 41 CV, 30 KW 1CIL. 4LW 4LW3 BASTIDORES: 4LW henceforth25151-4LW henceforth28982 1996-1997
YAMAHA TT 600 E 41 CV, 30 KW 1CIL. 4LW 4LW4 BASTIDORES: 4LW henceforth27508-- 1998
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH1 BASTIDORES: DJ011 henceforth00117-- 1997-1998
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH2 BASTIDORES: DJ011 henceforth05061-- 1999
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH3 BASTIDORES: DJ011 henceforth10508-DJ011 henceforth11551 2000
YAMAHA TT 600 R 43 CV, 31,5 KW 1CIL. DJ011 5CH4 BASTIDORES: DJ011 henceforth15004-- 2001-2003
YAMAHA TT 600 RE 42 CV, 31 KW 1CIL. DJ012 5CH5 BASTIDORES: DJ012 henceforth00388-- 2004
YAMAHA TT 600 S 41 CV, 30 KW 1CIL. 4GV 4GV1 BASTIDORES: 4GV henceforth00101-- 1993-1994
YAMAHA TT 600 S 41 CV, 30 KW 1CIL. 4GV 4GV3 BASTIDORES: 4GV henceforth03409-4GV henceforth03409 1995-1997
YAMAHA TT 600 S 41 CV, 30 KW 1CIL. 4LW 4LW1 BASTIDORES: 4LW-700101-- 1993-1994
YAMAHA TT 600 S 41 CV, 30 KW 1CIL. 4LW 4LW2 BASTIDORES: 4LW-700657-- 1995-1997
