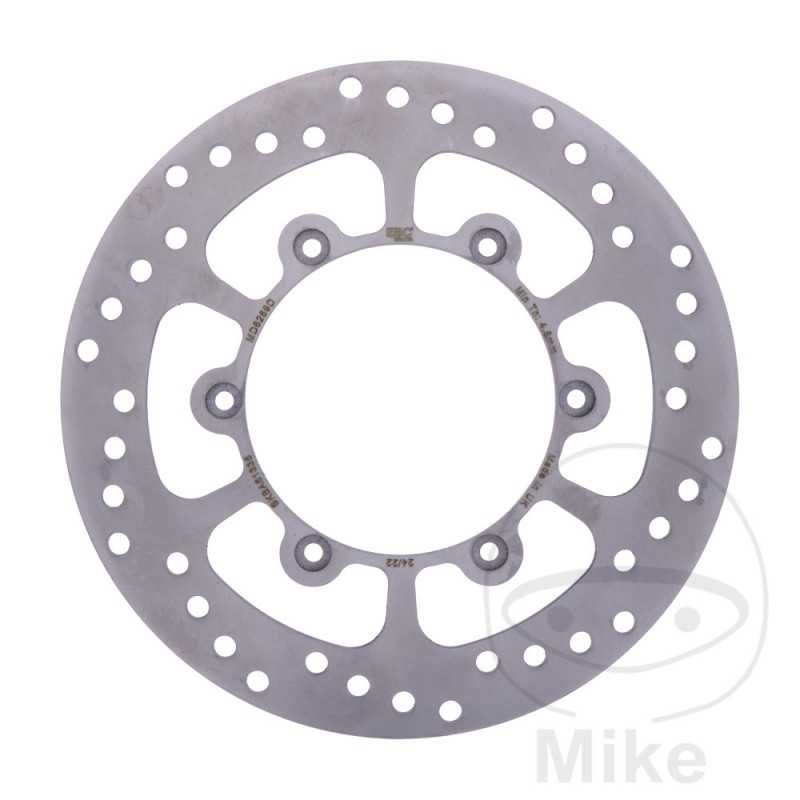

EBC motorcycle brake disc MX / ENDURO ATV 760.89.95

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Beta Xtrainer 250 2T Oilmix 1cil. ZD3E802C Bastidores: ZD3E802C henceforthM0100667-ZD3EE02C-XM0100071 2021
Beta Xtrainer 250 2T Oilmix 1cil. ZD3EE02C Bastidores: ZD3EE02C henceforthN0100095-ZD3EE02C-XN0100315 2022
Beta Xtrainer 300 2T Oilmix 1cil. ZD3E803C Bastidores: ZD3E803C henceforthK0205107-ZD3E803C-XL0206363 2020
Beta Xtrainer 300 2T Oilmix 1cil. ZD3E803C Bastidores: ZD3E803C henceforthM0206387-ZD3EE03C-XM0201688 2021
Beta Xtrainer 300 2T Oilmix 1cil. ZD3EE033 Bastidores: ZD3EE033 henceforthN0200003-ZD3EE03C-XM0201738 2022
KTM Adventure 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2003-2005
KTM Adventure 950 S LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2003-2005
KTM Enduro 690 LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2010
KTM Enduro 690 LC4 63 CV, 46,3 kw 1cil. - Bastidores: --- 2008-2010
KTM Enduro 690 R LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2009-2012
KTM Enduro 690 R LC4 41 CV, 30 kw 1cil. - Bastidores: --- 2013
KTM Enduro 690 R LC4 63 CV, 46,3 kw 1cil. - Bastidores: --- 2009-2011
KTM Enduro 690 R LC4 67 CV, 49 kw 1cil. - Bastidores: --- 2012-2013
KTM Rally Factory Replica 690 18 CV, 13 kw 1cil. - Bastidores: --- 2009-2010
KTM Supermoto 690 LC4 34 CV, 25 kw 1cil. - Bastidores: --- 2007-2009
KTM Supermoto 690 LC4 64 CV, 47 kw 1cil. - Bastidores: --- 2007-2009
KTM Supermoto 690 LC4 Prestige 34 CV, 25 kw 1cil. - Bastidores: --- 2007
KTM Supermoto 690 LC4 Prestige 64 CV, 47 kw 1cil. - Bastidores: --- 2007
