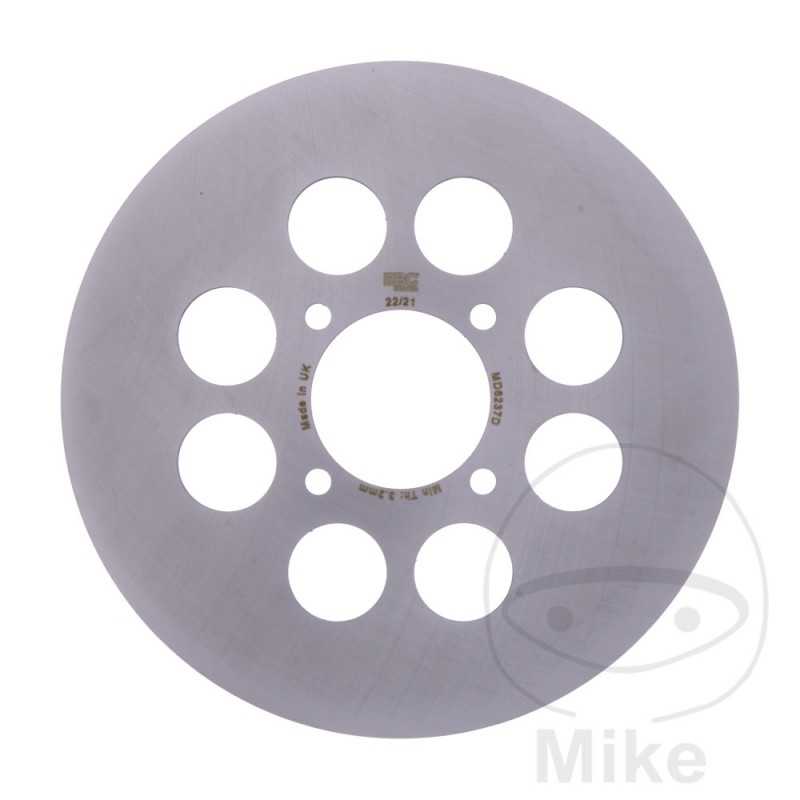

EBC motorcycle brake disc MX / ENDURO ATV 760.89.79

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 76 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LP4 Bastidores: AM01W henceforth00636-- 2001
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LP7 Bastidores: AM01W henceforth06508-- 2002
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPB Bastidores: AM01W henceforth09648-- 2003
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPE Bastidores: AM01W henceforth11317-- 2003
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPH Bastidores: AM01W henceforth16294-- 2004
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPL Bastidores: AM01W henceforth17970-- 2004
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPS Bastidores: AM01W henceforth23618-- 2005
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPV Bastidores: AM01W henceforth25492-- 2005
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM2 Bastidores: AG02W henceforth00010-- 2003
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM4 Bastidores: AG02W henceforth05480-- 2004
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM6 Bastidores: AG02W henceforth11989-- 2005
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM8 Bastidores: AG02W henceforth16552-- 2006
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VMB Bastidores: AG02W henceforth19784-- 2007
Yamaha YFS 200 Blaster Special Edition 21 CV, 15 kw 1cil. AG02W 5VMA Bastidores: AG02W henceforth17051-- 2006
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG2 Bastidores: 3GG henceforth10101-3GG henceforth24000 1990
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG5 Bastidores: 3GG henceforth34101-3GG henceforth35000 1991
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG8 Bastidores: 3GG henceforth46101-3GG henceforth48000 1992
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGC Bastidores: 3GG henceforth57101-- 1993
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGF Bastidores: 3GG henceforth66101-3GG henceforth66999 1994
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGJ Bastidores: 3GG henceforth78101-3GG henceforth79999 1995
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGN Bastidores: 3GG henceforth98101-- 1996
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGT Bastidores: 3GG-111185-3GG henceforth98999 1997
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGX Bastidores: 3GG-130833-- 1998
Yamaha YFZ 350 Banshee 2cil. 3GG 5FK3 Bastidores: 3GG-151263-- 1999
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B52 Bastidores: 3GG-270602-- 2005
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B55 Bastidores: 3GG-278192-- 2006
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5C Bastidores: 3GG-287814-- 2007
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5F Bastidores: 3GG-291898-- 2008
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5H Bastidores: 3GG-295292-- 2009
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5K Bastidores: 3GG-298342-- 2010
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5M Bastidores: 3GG-299401-- 2011-2012
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FK7 Bastidores: 3GG-176268-- 2000
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKC Bastidores: 3GG-197900-- 2001
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKG Bastidores: 3GG-219967-- 2002
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKL Bastidores: 3GG-235833-- 2003
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKS Bastidores: 3GG-253821-- 2004
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKX Bastidores: 3GG-267798-- 2005
