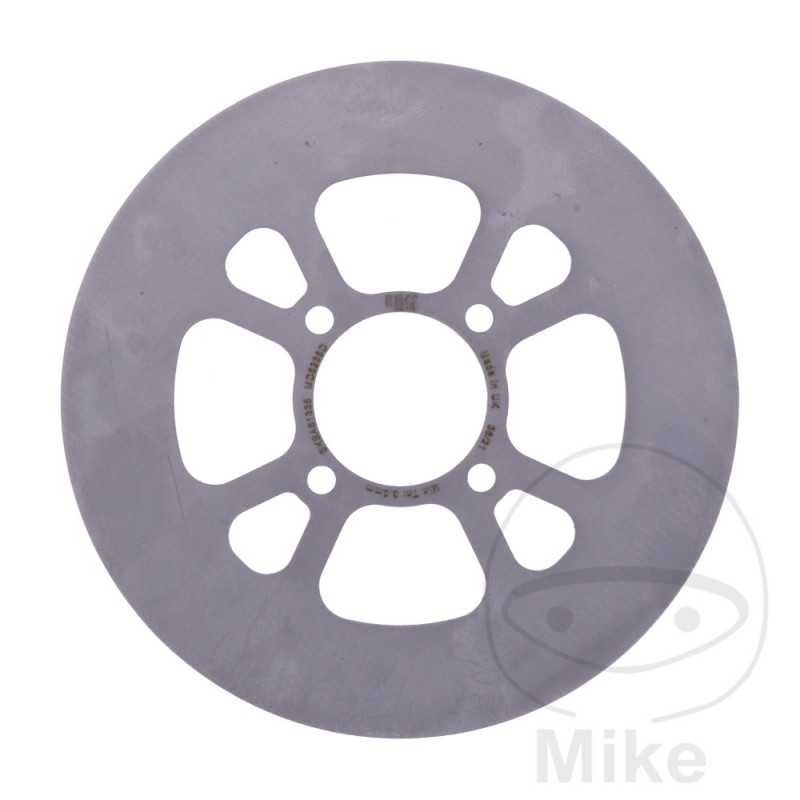

EBC motorcycle brake disc MX / ENDURO ATV 760.89.61

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 200MM
INSIDE DIAMETER: 51.4MM
CIRCLE SIZE: 67 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3K Bastidores: AG03W henceforth05863-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3P Bastidores: AG03W henceforth05602-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B2 Bastidores: AG06W henceforth00808-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B3 Bastidores: AG06W henceforth00656-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BT3 Bastidores: AG03W henceforth06736-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTA Bastidores: AG03W henceforth07473-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTH Bastidores: AG03W henceforth09546-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTP Bastidores: AG03W henceforth10490-- 2013-2014
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D33 Bastidores: AG03W henceforth00047-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D37 Bastidores: AG03W henceforth00669-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3B Bastidores: AG03W henceforth00638-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3F Bastidores: AG03W henceforth05034-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B1 Bastidores: AG06W henceforth00017-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B4 Bastidores: AG06W henceforth01750-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B5 Bastidores: AG06W henceforth02432-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B7 Bastidores: AG06W henceforth03346-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B8 Bastidores: AG06W henceforth03346-- 2013-2014
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P1 Bastidores: AH19W henceforth00101-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P2 Bastidores: AH19W henceforth00430-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P3 Bastidores: AH19W henceforth00663-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P4 Bastidores: AH19W henceforth01733-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P5 Bastidores: AH19W henceforth02573-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P6 Bastidores: AH19W henceforth03769-- 2009
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P7 Bastidores: AH19W henceforth05509-- 2010
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P8 Bastidores: AH19W henceforth05704-- 2011
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P9 Bastidores: --- 2012
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10PA Bastidores: AH19W henceforth06286-- 2013
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT3 Bastidores: AH12W henceforth00101-- 2004
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT7 Bastidores: AH12W henceforth02942-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT9 Bastidores: AH12W henceforth05569-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTC Bastidores: AH12W henceforth10783-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTF Bastidores: AH12W henceforth12987-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS3 Bastidores: AH18W henceforth04901-- 2010
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS6 Bastidores: AH18W henceforth05783-- 2011
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS8 Bastidores: AH18W henceforth06933-- 2012
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTJ Bastidores: AH18W henceforth00003-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTM Bastidores: AH18W henceforth00244-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTR Bastidores: AH18W henceforth01106-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTU Bastidores: AH18W henceforth01841-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTV Bastidores: AH18W henceforth02659-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTY Bastidores: AH18W henceforth03430-- 2009
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE3 Bastidores: AM46W-500101-- 2013
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE7 Bastidores: AM46W-500841-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM47W 1VS3 Bastidores: AM47W-500101-- 2013
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM47W 1VSB Bastidores: AM47W-500781-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM71W 1VSF Bastidores: AM71W-500101-- 2014
Yamaha YFM 700 R SE Special Edition 52 CV, 38 kw 1cil. AM87W B463 Bastidores: AM87W-500001-- 2015
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG3 Bastidores: AJ11W henceforth00878-- 2004
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG9 Bastidores: AJ11W henceforth06754-- 2005
