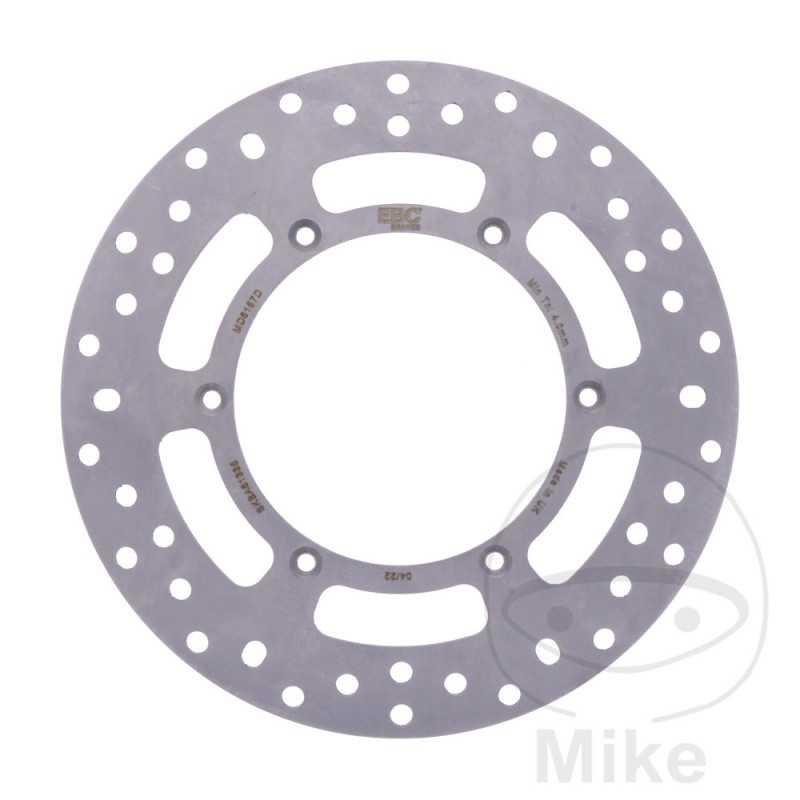

EBC motorcycle brake disc MX / ENDURO ATV 760.89.04

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR-Z 400 SM 40 CV, 29,4 KW 1CIL. WVB81112 K5 BASTIDORES: B81112 henceforth0100001-B81112 henceforth0103148 2005
SUZUKI DR-Z 400 SM 40 CV, 29,4 KW 1CIL. WVB81112 K6 BASTIDORES: B81112 henceforth0103149-B81112 henceforth0106275 2006
SUZUKI DR-Z 400 SM 40 CV, 29,4 KW 1CIL. WVB81112 K7 BASTIDORES: B81112 henceforth0106276-B81112 henceforth0110837 2007
SUZUKI DR-Z 400 SM 40 CV, 29,4 KW 1CIL. WVB81112 K8 BASTIDORES: B81112 henceforth0110838-B81112 henceforth0119999 2008
SUZUKI DR-Z 400 SMU 31 CV, 23 KW 1CIL. WVB81110 K7 BASTIDORES: B81110 henceforth0100242-- 2007
SUZUKI DR-Z 400 SMU 34 CV, 25 KW 1CIL. WVB81110 K5 BASTIDORES: B81110 henceforth0100001-B81110 henceforth0100087 2005
SUZUKI DR-Z 400 SMU 34 CV, 25 KW 1CIL. WVB81110 K6 BASTIDORES: B81110 henceforth0100088-B81110 henceforth0100241 2006
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A X BASTIDORES: RF15A-104212-RF15A-106058 1999
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A Y BASTIDORES: RF15A-106059-- 2000
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K1 BASTIDORES: RF16C-12100001-- 2001
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K2 BASTIDORES: RF16C-22100001-- 2002
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K3 BASTIDORES: RF16C-32100001-- 2003
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16C K4 BASTIDORES: RF16C-42100001-- 2004
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16C K5 BASTIDORES: RF16C-52100001-- 2005
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ17A X BASTIDORES: RJ17A-102949-RJ17A-104153 1999
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ17A Y BASTIDORES: RJ17A-104154-- 2000
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K1 BASTIDORES: RJ18C-12100001-- 2001
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K2 BASTIDORES: RJ18C-22100001-- 2002
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K3 BASTIDORES: RJ18C-32100001-- 2003
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18C K4 BASTIDORES: RJ18C-42100001-- 2004
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18C K5 BASTIDORES: RJ18C-52100001-- 2005
