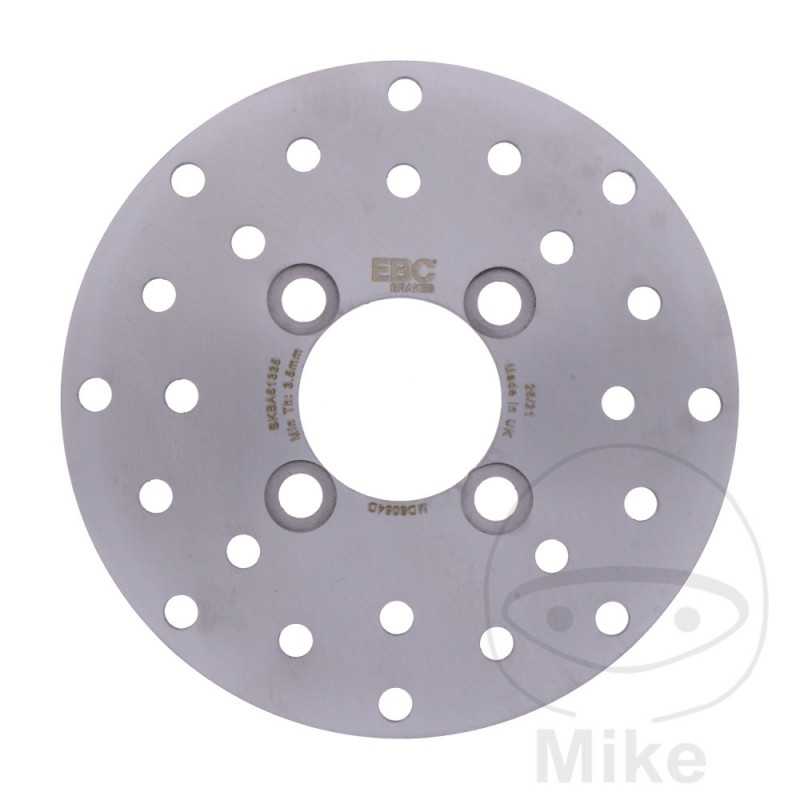

EBC motorcycle brake disc MX / ENDURO ATV 760.88.62

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 161MM
INSIDE DIAMETER: 48.2MM
CIRCLE SIZE: 66 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi DXR 200 DD discos de freno 13,6 CV, 10 kw 1cil. SM1B1A Bastidores: VTHSM1B1A5M000001-- 2006-2008
Derbi DXR 250 DD discos de freno 17,7 CV, 13 kw 2cil. SM1A1A Bastidores: VTHSM1A1A5M000001-- 2006-2008
Yamaha YFM 250 Bear Tracker 18 CV, 13 kw 1cil. AG01W 4XED Bastidores: AG01W henceforth00101-- 2001
Yamaha YFM 250 Bear Tracker 18 CV, 13 kw 1cil. AG01W 4XEG Bastidores: AG01W-505201-- 2002
Yamaha YFM 250 Bear Tracker 18 CV, 13 kw 1cil. AG01W 4XEK Bastidores: AG01W-508200-- 2003
Yamaha YFM 250 Bear Tracker 18 CV, 13 kw 1cil. AG01W 4XEN Bastidores: AG01W-510190-- 2004
Yamaha YFM 250 Big Bear 18 CV, 13 kw 1cil. AG01W 1P0B Bastidores: --- 2007
Yamaha YFM 250 Big Bear YFM25B 18 CV, 13 kw 1cil. AG01W 1P0F Bastidores: AG01W-516501-- 2008
Yamaha YFM 250 Big Bear YFM25B 18 CV, 13 kw 1cil. AG01W 1P0K Bastidores: AG01W-517601-- 2009
Yamaha YFM 250 Big Bear YFM25B 18 CV, 13 kw 1cil. AG01W 1P0P Bastidores: AG01W-518501-- 2010
Yamaha YFM 250 Big Bear YFM25B 18 CV, 13 kw 1cil. AG01W 1P0T Bastidores: AG01W-519001-- 2011
Yamaha YFM 250 Bruin YFM25B 18 CV, 13 kw 1cil. AG01W 1P07 Bastidores: AG01W-514301-- 2006
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3K Bastidores: AG03W henceforth05863-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3P Bastidores: AG03W henceforth05602-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B2 Bastidores: AG06W henceforth00808-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B3 Bastidores: AG06W henceforth00656-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BT3 Bastidores: AG03W henceforth06736-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTA Bastidores: AG03W henceforth07473-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTH Bastidores: AG03W henceforth09546-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTP Bastidores: AG03W henceforth10490-- 2013-2014
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D33 Bastidores: AG03W henceforth00047-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D37 Bastidores: AG03W henceforth00669-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3B Bastidores: AG03W henceforth00638-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3F Bastidores: AG03W henceforth05034-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B1 Bastidores: AG06W henceforth00017-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B4 Bastidores: AG06W henceforth01750-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B5 Bastidores: AG06W henceforth02432-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B7 Bastidores: AG06W henceforth03346-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B8 Bastidores: AG06W henceforth03346-- 2013-2014
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P1 Bastidores: AH19W henceforth00101-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P2 Bastidores: AH19W henceforth00430-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P3 Bastidores: AH19W henceforth00663-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P4 Bastidores: AH19W henceforth01733-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P5 Bastidores: AH19W henceforth02573-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P6 Bastidores: AH19W henceforth03769-- 2009
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P7 Bastidores: AH19W henceforth05509-- 2010
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P8 Bastidores: AH19W henceforth05704-- 2011
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P9 Bastidores: --- 2012
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10PA Bastidores: AH19W henceforth06286-- 2013
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT3 Bastidores: AH12W henceforth00101-- 2004
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT7 Bastidores: AH12W henceforth02942-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT9 Bastidores: AH12W henceforth05569-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTC Bastidores: AH12W henceforth10783-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTF Bastidores: AH12W henceforth12987-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS3 Bastidores: AH18W henceforth04901-- 2010
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS6 Bastidores: AH18W henceforth05783-- 2011
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS8 Bastidores: AH18W henceforth06933-- 2012
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTJ Bastidores: AH18W henceforth00003-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTM Bastidores: AH18W henceforth00244-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTR Bastidores: AH18W henceforth01106-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTU Bastidores: AH18W henceforth01841-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTV Bastidores: AH18W henceforth02659-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTY Bastidores: AH18W henceforth03430-- 2009
Yamaha YFM 350 X Warrior 20 CV, 15 kw 1cil. 3GD 3GDW Bastidores: 3GD-255467-- 2000
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF2 Bastidores: 3GD-291441-- 2001
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF6 Bastidores: 3GD-319138-- 2002
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFA Bastidores: 3GD-337826-- 2003
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFD Bastidores: 3GD-354198-- 2004
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LP4 Bastidores: AM01W henceforth00636-- 2001
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LP7 Bastidores: AM01W henceforth06508-- 2002
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPB Bastidores: AM01W henceforth09648-- 2003
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPE Bastidores: AM01W henceforth11317-- 2003
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPH Bastidores: AM01W henceforth16294-- 2004
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPL Bastidores: AM01W henceforth17970-- 2004
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPS Bastidores: AM01W henceforth23618-- 2005
Yamaha YFM 660 R 46 CV, 34 kw 1cil. AM01W 5LPV Bastidores: AM01W henceforth25492-- 2005
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS3 Bastidores: AM07W henceforth23989-- 2010
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS9 Bastidores: AM07W henceforth25726-- 2011
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1ASF Bastidores: AM07W henceforth27285-- 2012
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S33 Bastidores: AM07W henceforth00101-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S36 Bastidores: AM07W henceforth03960-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S39 Bastidores: AM07W henceforth08732-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3G Bastidores: AM07W henceforth13764-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3K Bastidores: AM07W henceforth16114-- 2008
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3V Bastidores: AM07W henceforth20880-- 2009
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE3 Bastidores: AM46W-500101-- 2013
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM46W 1PE7 Bastidores: AM46W-500841-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1AS6 Bastidores: AM07W henceforth24200-- 2010
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1ASC Bastidores: AM07W henceforth25706-- 2011
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1ASJ Bastidores: AM07W henceforth27245-- 2012
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3C Bastidores: AM07W henceforth09689-- 2007
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3P Bastidores: AM07W henceforth16749-- 2008
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3U Bastidores: AM07W henceforth19146-- 2008
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3Y Bastidores: AM07W henceforth21408-- 2009
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM47W 1VS3 Bastidores: AM47W-500101-- 2013
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM47W 1VSB Bastidores: AM47W-500781-- 2014
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM71W 1VSF Bastidores: AM71W-500101-- 2014
Yamaha YFM 700 R SE Special Edition 52 CV, 38 kw 1cil. AM87W B463 Bastidores: AM87W-500001-- 2015
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM2 Bastidores: AG02W henceforth00010-- 2003
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM4 Bastidores: AG02W henceforth05480-- 2004
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM6 Bastidores: AG02W henceforth11989-- 2005
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM8 Bastidores: AG02W henceforth16552-- 2006
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VMB Bastidores: AG02W henceforth19784-- 2007
Yamaha YFS 200 Blaster Special Edition 21 CV, 15 kw 1cil. AG02W 5VMA Bastidores: AG02W henceforth17051-- 2006
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG2 Bastidores: 3GG henceforth10101-3GG henceforth24000 1990
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG5 Bastidores: 3GG henceforth34101-3GG henceforth35000 1991
Yamaha YFZ 350 Banshee 2cil. 3GG 3GG8 Bastidores: 3GG henceforth46101-3GG henceforth48000 1992
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGC Bastidores: 3GG henceforth57101-- 1993
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGF Bastidores: 3GG henceforth66101-3GG henceforth66999 1994
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGJ Bastidores: 3GG henceforth78101-3GG henceforth79999 1995
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGN Bastidores: 3GG henceforth98101-- 1996
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGT Bastidores: 3GG-111185-3GG henceforth98999 1997
Yamaha YFZ 350 Banshee 2cil. 3GG 3GGX Bastidores: 3GG-130833-- 1998
Yamaha YFZ 350 Banshee 2cil. 3GG 5FK3 Bastidores: 3GG-151263-- 1999
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B52 Bastidores: 3GG-270602-- 2005
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B55 Bastidores: 3GG-278192-- 2006
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5C Bastidores: 3GG-287814-- 2007
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5F Bastidores: 3GG-291898-- 2008
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5H Bastidores: 3GG-295292-- 2009
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5K Bastidores: 3GG-298342-- 2010
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5M Bastidores: 3GG-299401-- 2011-2012
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FK7 Bastidores: 3GG-176268-- 2000
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKC Bastidores: 3GG-197900-- 2001
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKG Bastidores: 3GG-219967-- 2002
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKL Bastidores: 3GG-235833-- 2003
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKS Bastidores: 3GG-253821-- 2004
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKX Bastidores: 3GG-267798-- 2005
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG3 Bastidores: AJ11W henceforth00878-- 2004
Yamaha YFZ 450 39 CV, 29 kw 1cil. AJ11W 5TG9 Bastidores: AJ11W henceforth06754-- 2005
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D33 Bastidores: AJ20W henceforth03771-- 2007
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3D Bastidores: AJ20W henceforth06986-- 2008
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3P Bastidores: AJ20W henceforth08669-- 2009-2011
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3R Bastidores: AJ20W henceforth08839-- 2009-2011
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGF Bastidores: AJ20W henceforth00101-- 2006
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGJ Bastidores: AJ20W henceforth02337-- 2006
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ60W 1PD3 Bastidores: AJ60W henceforth00001-- 2012
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ60W 1PD6 Bastidores: AJ60W henceforth00808-- 2013-2014
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P3 Bastidores: AJ42W henceforth00031-- 2009
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P9 Bastidores: AJ42W henceforth01347-- 2010
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PF Bastidores: AJ42W henceforth02131-- 2011
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PL Bastidores: AJ42W henceforth02809-- 2012
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PS Bastidores: AJ42W henceforth03243-- 2013
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ70W 1TD3 Bastidores: AJ70W-500101-- 2014
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ74W 1TDA Bastidores: AJ74W-500101-- 2014
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18P6 Bastidores: AJ42W henceforth00870-- 2009
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PC Bastidores: AJ42W henceforth01799-- 2010-2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PH Bastidores: AJ42W henceforth02357-- 2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PN Bastidores: AJ42W henceforth02936-- 2012
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PV Bastidores: AJ42W henceforth03277-- 2013
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ72W 1TD7 Bastidores: AJ72W-500101-- 2014
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D36 Bastidores: AJ20W henceforth04316-- 2007
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3A Bastidores: AJ20W henceforth06178-- 2007
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3G Bastidores: AJ20W henceforth07248-- 2008
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3L Bastidores: AJ20W henceforth08146-- 2008
