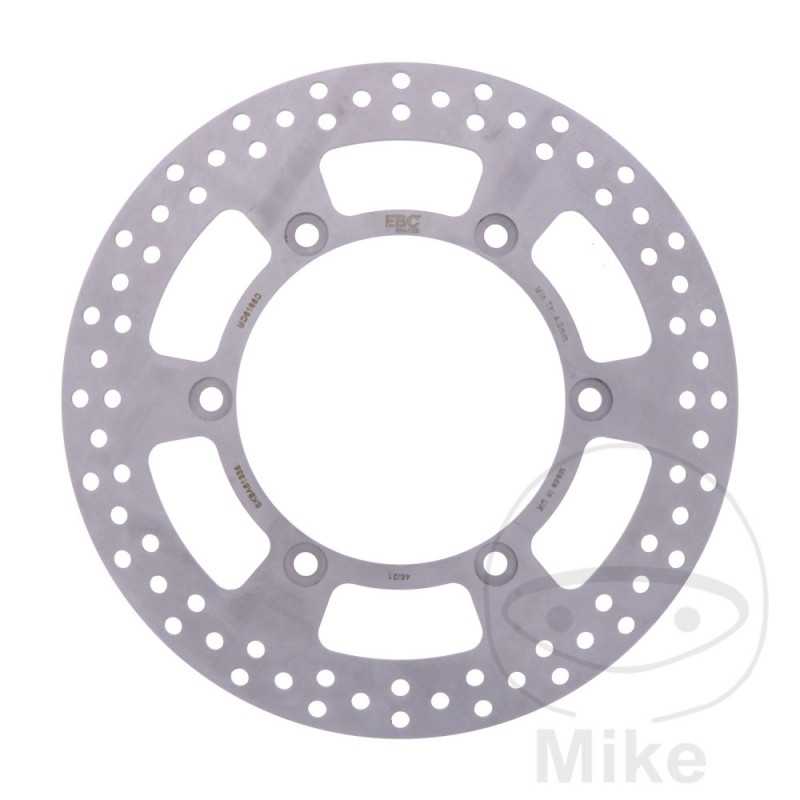

EBC motorcycle brake disc MX / ENDURO ATV 760.76.33

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
CAGIVA CANYON 500 39/34 CV, 29/25 KW 1CIL. M100AA BASTIDORES: ZCGM100AA-VV000001-- 1998-2001
CAGIVA CANYON 600 38 CV, 28 KW 1CIL. 5G BASTIDORES: --- 1996-1997
CAGIVA ELEFANT 750 60 CV, 44 KW 2CIL. 6B BASTIDORES: --- 1994-1997
CAGIVA ELEFANT 900 GT IE 68 CV, 50 KW 2CIL. 1BE BASTIDORES: --- 1991-1993
CAGIVA ELEFANT 900 IE LUCKY EXPLORER 68 CV, 50 KW 2CIL. 1BE BASTIDORES: --- 1990-1992
CAGIVA GRAN CANYON 900 IE 68 CV, 50 KW 2CIL. M300AA BASTIDORES: ZCGM300AA-WV000001-- 1999-2000
CAGIVA GRAN CANYON 900 IE 73 CV, 54 KW 2CIL. M300AA BASTIDORES: --- 1997
CAGIVA GRAN CANYON 900 IE 73 CV, 54 KW 2CIL. M300AA BASTIDORES: ZCGM300AA-WV000001-- 1998
CAGIVA NAVIGATOR 1000 GUSSRAD 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2000-2001
CAGIVA NAVIGATOR 1000 LLANTA DE FUNDICIÓN 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2002-2005
CAGIVA NAVIGATOR 1000 LLANTA DE RADIOS 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2002-2005
CAGIVA NAVIGATOR 1000 SPEICHENRAD 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2000-2001
CAGIVA NAVIGATOR 1000 TOURING GUSSRAD 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2000-2001
CAGIVA NAVIGATOR 1000 TOURING SPEICHENRAD 99 CV, 73 KW 2CIL. M500AA BASTIDORES: ZCGM500AA-YV000001-- 2000-2001
HONDA XRV 650 AFRICA TWIN 50 CV, 37 KW 2CIL. RD03 J BASTIDORES: RD03-5000015-RD03-5008541 1988
HONDA XRV 650 AFRICA TWIN 50 CV, 37 KW 2CIL. RD03 K BASTIDORES: RD03-5100006-RD03-5101699 1989-1990
