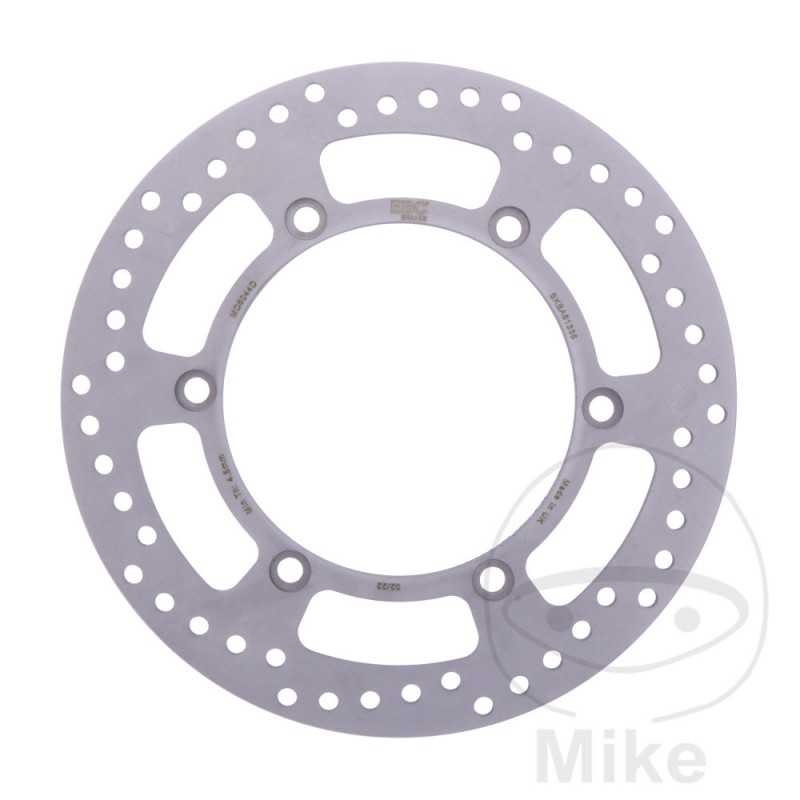

EBC motorcycle brake disc MX / ENDURO ATV 760.75.91

EBC brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low-carbon HPSR steel for off-road motorcycles, which are primarily driven on the road, with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Milled from low carbon HPSR forged steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA FX 650 VIGOR 34 CV, 25 KW 1CIL. RD09C X BASTIDORES: VTM RD09C henceforthXE110002-- 1999-2000
HONDA FX 650 VIGOR 39 CV, 29 KW 1CIL. RD09A X BASTIDORES: VTM RD09A henceforthXE420004-- 1999-2000
HONDA SLR 650 34 CV, 25 KW 1CIL. RD09C V BASTIDORES: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
HONDA SLR 650 34 CV, 25 KW 1CIL. RD09C W BASTIDORES: VTM RD09C henceforthWE000002-- 1998
HONDA SLR 650 39 CV, 29 KW 1CIL. RD09A V BASTIDORES: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
HONDA SLR 650 39 CV, 29 KW 1CIL. RD09A W BASTIDORES: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
HONDA XL 600 V TRANSALP 27 CV, 20 KW 2CIL. PD06 H BASTIDORES: PD06-3000002-PD06-3000101 1987
HONDA XL 600 V TRANSALP 27 CV, 20 KW 2CIL. PD06 K BASTIDORES: PD06-3200001-PD06-3200500 1989
HONDA XL 600 V TRANSALP 27 CV, 20 KW 2CIL. PD06 M BASTIDORES: PD06-3400001-PD06-3400950 1991
HONDA XL 600 V TRANSALP 27 CV, 20 KW 2CIL. PD06 N BASTIDORES: PD06-3500001-PD06-3501067 1992
HONDA XL 600 V TRANSALP 27 CV, 20 KW 2CIL. PD06 P BASTIDORES: PD06-3600001-PD06-3600700 1993
HONDA XL 600 V TRANSALP 34 CV, 25 KW 2CIL. PD06 R BASTIDORES: PD06-6000001-PD06-6001425 1994-1995
HONDA XL 600 V TRANSALP 34 CV, 25 KW 2CIL. PD06B T BASTIDORES: PD06B-TM000001-- 1996
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 H BASTIDORES: PD06-5000033-PD06-5011960 1987
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 K BASTIDORES: PD06-5200008-PD06-5207274 1989
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 L BASTIDORES: PD06-5300005-- 1990
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 M BASTIDORES: PD06-5401105-PD06-5407243 1991
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 N BASTIDORES: PD06-5501154-PD06-5508137 1992
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 P BASTIDORES: PD06-5600393-PD06-5607924 1993
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06 R BASTIDORES: PD06-5700013-PD06-5712658 1994-1995
HONDA XL 600 V TRANSALP 50 CV, 37 KW 2CIL. PD06A T BASTIDORES: PD06A-TM000001-- 1996
HONDA XL 600 V TRANSALP PIÑÓN ENGRANAJE FINO 27 CV, 20 KW 2CIL. PD06 J BASTIDORES: PD06-3100001-PD06-3100200 1988
HONDA XL 600 V TRANSALP PIÑÓN ENGRANAJE FINO 50 CV, 37 KW 2CIL. PD06 J BASTIDORES: PD06-5103368-PD06-5106124 1988
HONDA XL 600 V TRANSALP PIÑÓN ENGRANAJE GRUESO 27 CV, 20 KW 2CIL. PD06 J BASTIDORES: PD06-3100001-PD06-3100200 1988
HONDA XL 600 V TRANSALP PIÑÓN ENGRANAJE GRUESO 50 CV, 37 KW 2CIL. PD06 J BASTIDORES: PD06-5103368-PD06-5106124 1988
HONDA XLV 750 R 50 CV, 37 KW 2CIL. RD01 D BASTIDORES: RD01-3000005-RD01-3099999 1983-1985
HONDA XLV 750 R 61 CV, 45 KW 2CIL. RD01 D BASTIDORES: RD01-2000027-RD01-2002925 1983-1985
