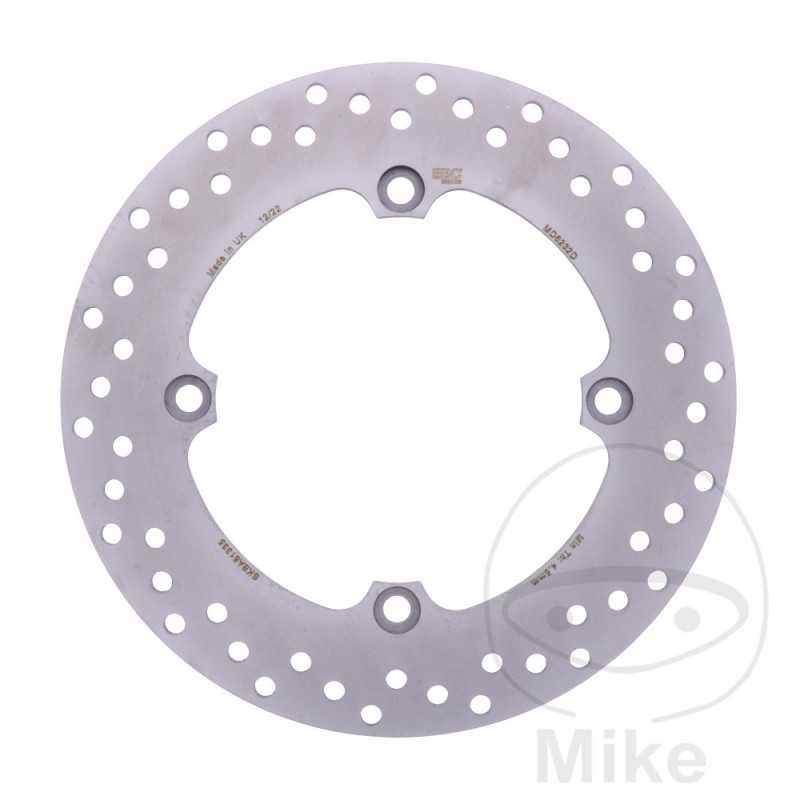

EBC motorcycle brake disc MX / ENDURO ATV 760.52.07

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 141.2MM
CIRCLE SIZE: 162 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLV 1000 A 98 CV, 72 kw 2cil. WVBS 1H Bastidores: BS112200-100001-- 2004
Kawasaki KLV 1000 A 98 CV, 72 kw 2cil. WVBS 2H Bastidores: BS112200-100100-- 2005-2006
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L4 Bastidores: DD1111 henceforth0000001-DD1111 henceforth0108797 2014
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L5 Bastidores: DD1111 henceforth0108798-- 2015
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1111 L6 Bastidores: DD1111-G0100001-DD1111-G0199999 2016
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1245 L8 Bastidores: DD1245-J0100001-DD1245-J0199999 2017-2018
Suzuki DL 1000 A V-Strom ABS 100 CV, 74 kw 2cil. DD1245 L9 Bastidores: DD1245-K7100001-DD1245-K7999999 2019-2020
Suzuki DL 1000 A V-Strom Big ABS 100 CV, 74 kw 2cil. DD1111 L4 Bastidores: DD1111 henceforth0000001-DD1111 henceforth0108797 2014
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K2 Bastidores: BS1111 henceforth0100001-BS1111 henceforth0108869 2002
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K3 Bastidores: BS1111 henceforth0108870-BS1111 henceforth0112372 2003
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K4 Bastidores: BS1111 henceforth0112373-BS1111 henceforth0115451 2004
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K5 Bastidores: BS1111 henceforth0115452-BS1111 henceforth0118459 2005
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K6 Bastidores: BS1111 henceforth0118460-BS1111 henceforth0121304 2006
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K7 Bastidores: BS1111 henceforth0121305-BS1111 henceforth0121305 2007
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K8 Bastidores: BS1111 henceforth0123038-BS1111 henceforth0123954 2008
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 K9 Bastidores: BS1111 henceforth0123955-BS1111 henceforth0124193 2009
Suzuki DL 1000 V-Strom 98 CV, 72 kw 2cil. WVBS1111 L0 Bastidores: BS1111 henceforth0124194-- 2010
Suzuki DL 1000 XTA V-Strom ABS llanta de radios 100 CV, 74 kw 2cil. DD1245 L8 Bastidores: DD1245-J0100001-DD1245-J0199999 2017-2018
Suzuki DL 1000 XTA V-Strom ABS llanta de radios 100 CV, 74 kw 2cil. DD1245 L9 Bastidores: DD1245-K7100001-DD1245-K7999999 2019-2020
Suzuki DL 1050 V-Strom ABS Gussrad (RQ) 107 CV, 79 kw 2cil. EF11AZ M0 Bastidores: EF11AZ-L7100001-EF11AZ-L7999999 2020
Suzuki DL 1050 V-Strom ABS Gussrad (RQ) 107 CV, 79 kw 2cil. EF11AZ M1 Bastidores: EF11AZ-M7100001-EF11AZ-M7999999 2021
Suzuki DL 1050 V-Strom ABS Gussrad (RQ) 107 CV, 79 kw 2cil. EF11AZ M2 Bastidores: EF11AZ-M7100001-EF11AZ-M7199999 2022
Suzuki DL 1050 XT V-Strom ABS llanta de radios (RC) 107 CV, 79 kw 2cil. EF12AZ M0 Bastidores: EF12AZ-M7100001-EF12AZ-M7999999 2020
Suzuki DL 1050 XT V-Strom ABS llanta de radios (RC) 107 CV, 79 kw 2cil. EF12AZ M1 Bastidores: EF12AZ-M7100001-EF12AZ-M7999999 2021
Suzuki DL 1050 XT V-Strom ABS Speichenrad (RC) 107 CV, 79 kw 2cil. EF12AZ M2 Bastidores: EF12AZ-M7100001-EF12AZ-M7199999 2022
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K7 Bastidores: B11121 henceforth0100001-B11121 henceforth0109035 2007
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K8 Bastidores: B11121 henceforth0109036-B11121 henceforth0115948 2008
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 K9 Bastidores: B11121 henceforth0115949-B11121 henceforth0120463 2009
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 L0 Bastidores: B11121 henceforth0120464-B11121 henceforth0126397 2010
Suzuki DL 650 A V-Strom ABS 67 CV, 49 kw 2cil. WVB11121 L1 Bastidores: B11121 henceforth0126398-- 2011
Suzuki DL 650 A V-Strom ABS 69 CV, 51 kw 2cil. C71111 L2 Bastidores: C71111 henceforth0100001-C71111 henceforth0113789 2012
Suzuki DL 650 A V-Strom ABS 69 CV, 51 kw 2cil. C71111 L3 Bastidores: C71111 henceforth0109894-C71111 henceforth0113789 2013
Suzuki DL 650 A V-Strom ABS 69 CV, 51 kw 2cil. C71111 L4 Bastidores: C71111 henceforth0113790-C71111 henceforth0116641 2014
Suzuki DL 650 A V-Strom ABS 69 CV, 51 kw 2cil. C71111 L5 Bastidores: C71111 henceforth0116642-C71111 henceforth0199999 2015
Suzuki DL 650 A V-Strom ABS 69 CV, 51 kw 2cil. C71111 L6 Bastidores: C71111-G0100001-- 2016
Suzuki DL 650 A V-Strom ABS 71 CV, 52 kw 2cil. WC70 L7 Bastidores: C733AZ-HO100001-C733AZ-HO199999 2017
Suzuki DL 650 A V-Strom ABS 71 CV, 52 kw 2cil. WC70 L8 Bastidores: C733AZ-J0100001-C733AZ-J0199999 2018
Suzuki DL 650 A V-Strom ABS 71 CV, 52 kw 2cil. WC70 L9 Bastidores: C733AZ-K7100001-C733AZ-K7199999 2019
Suzuki DL 650 A V-Strom ABS 71 CV, 52 kw 2cil. WC70 M0 Bastidores: C733AZ-L7100001-C733AZ-L7199999 2020
Suzuki DL 650 AU3 V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K7 Bastidores: B12121 henceforth0100001-B12121 henceforth0101151 2007
Suzuki DL 650 AU3 V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K8 Bastidores: B12121 henceforth0101152-B12121 henceforth0101394 2008
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. C72111 L2 Bastidores: C72111 henceforth0100001-C72111 henceforth0100094 2012
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 K9 Bastidores: B12121 henceforth0101395-B12121 henceforth0101679 2009
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 L0 Bastidores: B12121 henceforth0101670-B12121 henceforth0102329 2010
Suzuki DL 650 AUE V-Strom ABS 34 CV, 25 kw 2cil. WVB12121 L1 Bastidores: B12121 henceforth0102330-- 2011
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. C72111 L3 Bastidores: C72111 henceforth0100090-C72111 henceforth0100094 2013
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. C72111 L4 Bastidores: C72111 henceforth0100095-C72111 henceforth0100109 2014
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. C72111 L5 Bastidores: C72111 henceforth0100110-C72111 henceforth0109999 2015
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. C72111 L6 Bastidores: C72111-G0100001-- 2016
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. WC71 L7 Bastidores: C743FZ-H0100001-C743FZ-H0199999 2017
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. WC71 L8 Bastidores: C743FZ-J0-100001-C743FZ-J0199999 2018
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. WC71 L9 Bastidores: C743FZ-K7100001-C743FZ-K7199999 2019
Suzuki DL 650 AUE V-Strom ABS 48 CV, 35 kw 2cil. WC71 M0 Bastidores: C743FZ-L7100001-C743FZ-L7199999 2020
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K4 Bastidores: B12111 henceforth0100001-B12111 henceforth0101112 2004
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K5 Bastidores: B12111 henceforth0101113-B12111 henceforth0103152 2005
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K6 Bastidores: B12111 henceforth0103153-B12111 henceforth0104194 2006
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K7 Bastidores: B12111 henceforth0104195-B12111 henceforth0105690 2007
Suzuki DL 650 U3 V-Strom 34 CV, 25 kw 2cil. WVB12111 K8 Bastidores: B12111 henceforth0105691-B12111 henceforth0106367 2008
Suzuki DL 650 UE V-Strom 34 CV, 25 kw 2cil. WVB12111 K9 Bastidores: B12111 henceforth0106368-B12111 henceforth0106633 2009
Suzuki DL 650 UE V-Strom 34 CV, 25 kw 2cil. WVB12111 L0 Bastidores: B12111 henceforth0106634-B12111 henceforth0107109 2010
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K4 Bastidores: B11111 henceforth0100001-B11111 henceforth0111056 2004
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K5 Bastidores: B11111 henceforth0111057-B11111 henceforth0122610 2005
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K6 Bastidores: B11111 henceforth0122611-B11111 henceforth0129413 2006
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K7 Bastidores: B11111 henceforth0129414-B11111 henceforth0136971 2007
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K8 Bastidores: B11111 henceforth0136972-B11111 henceforth0142055 2008
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 K9 Bastidores: B11111 henceforth0142056-B11111 henceforth0144362 2009
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 L0 Bastidores: B11111 henceforth0144363-B11111 henceforth0146062 2010
Suzuki DL 650 V-Strom 67 CV, 49 kw 2cil. WVB11111 L1 Bastidores: B11111 henceforth0146063-- 2011
Suzuki DL 650 XT A V-Strom ABS llanta de radios 69 CV, 51 kw 2cil. C71121 L5 Bastidores: C71121 henceforth0100001-C71121 henceforth0199999 2015
Suzuki DL 650 XT A V-Strom ABS llanta de radios 69 CV, 51 kw 2cil. C71121 L6 Bastidores: C71121-G0100001-- 2016
Suzuki DL 650 XT A V-Strom ABS llanta de radios 71 CV, 52 kw 2cil. C733AZ L7 Bastidores: C733AZ-H0100001-C733AZ-H0199999 2017
Suzuki DL 650 XT A V-Strom ABS llanta de radios 71 CV, 52 kw 2cil. C733AZ L8 Bastidores: C733AZ-J0100001-C733AZ-J0199999 2018
Suzuki DL 650 XT A V-Strom ABS llanta de radios 71 CV, 52 kw 2cil. C733AZ L9 Bastidores: C733AZ-K7100001-C733AZ-K7199999 2019
Suzuki DL 650 XT A V-Strom ABS llanta de radios 71 CV, 52 kw 2cil. C733AZ M0 Bastidores: C733AZ-L7100001-C733AZ-L7199999 2020
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C72121 L5 Bastidores: C72121 henceforth0100001-C72121 henceforth0199999 2015
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C72121 L6 Bastidores: C72121-G0100001-- 2016
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C743FZ L7 Bastidores: C743FZ-H0100001-C743FZ-H0199999 2017
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C743FZ L8 Bastidores: C743FZ-J0100001-C743FZ-J0199999 2018
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C743FZ L9 Bastidores: C743FZ-K7100001-C743FZ-K7199999 2019
Suzuki DL 650 XT AUE V-Strom ABS llanta de radios 48 CV, 35 kw 2cil. C743FZ M0 Bastidores: C743FZ-L7100001-C743FZ-L7199999 2020
