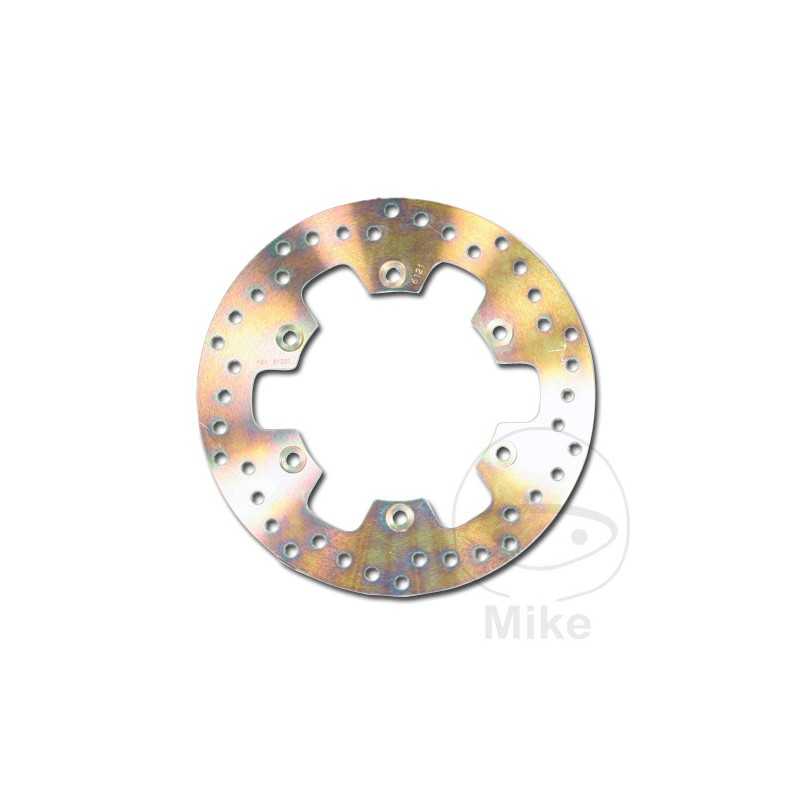

EBC motorcycle brake disc MX / ENDURO ATV 760.50.82

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA DT 125 RE 15 CV, 11 KW 1CIL. DE061 1D02 BASTIDORES: DE061 henceforth08114-- 2005
YAMAHA DT 125 RE 15 CV, 11 KW 1CIL. DE061 1D04 BASTIDORES: DE061 henceforth12162-DE061 henceforth16329 2006
YAMAHA DT 125 RE MX EVERTS 15 CV, 11 KW 1CIL. DE061 1D03 BASTIDORES: DE061 henceforth10212-- 2005-2006
YAMAHA DT 125 X 15 CV, 11 KW 1CIL. DE062 2C81 BASTIDORES: DE062 henceforth00005-- 2005
YAMAHA DT 125 X 15 CV, 11 KW 1CIL. DE062 2C82 BASTIDORES: DE062 henceforth05764-DE062 henceforth08864 2006
YAMAHA WR 125 R 15 CV, 11 KW 1CIL. - 22BB BASTIDORES: --- 2014-2017
YAMAHA WR 125 R 15 CV, 11 KW 1CIL. DE071 22B1 BASTIDORES: DE071 henceforth01912-- 2009
YAMAHA WR 125 R 15 CV, 11 KW 1CIL. DE071 22B3 BASTIDORES: DE071 henceforth00029-- 2010
YAMAHA WR 125 R 15 CV, 11 KW 1CIL. DE071 22B5 BASTIDORES: DE071 henceforth05401-- 2011-2012
YAMAHA WR 125 R 15 CV, 11 KW 1CIL. DE071 22B7 BASTIDORES: DE071 henceforth07401-- 2013
YAMAHA WR 125 X 15 CV, 11 KW 1CIL. DE072 22B2 BASTIDORES: DE072 henceforth00801-- 2009
YAMAHA WR 125 X 15 CV, 11 KW 1CIL. DE072 22B4 BASTIDORES: DE072 henceforth00026-- 2010
YAMAHA WR 125 X 15 CV, 11 KW 1CIL. DE072 22B6 BASTIDORES: DE072 henceforth08401-- 2011-2012
YAMAHA WR 125 X 15 CV, 11 KW 1CIL. DE072 22B8 BASTIDORES: DE072 henceforth12401-- 2013
YAMAHA WR 125 X 15 CV, 11 KW 1CIL. DE072 22BC BASTIDORES: DE072 henceforth22401-- 2014-2017
